Universal multivoltaje door opener with 67511 unlocking by Fermax

SKU
FER67511
Brands: Fermax
Availability: In stock
24/48 Hours
€21.95 Tax included
Fermax

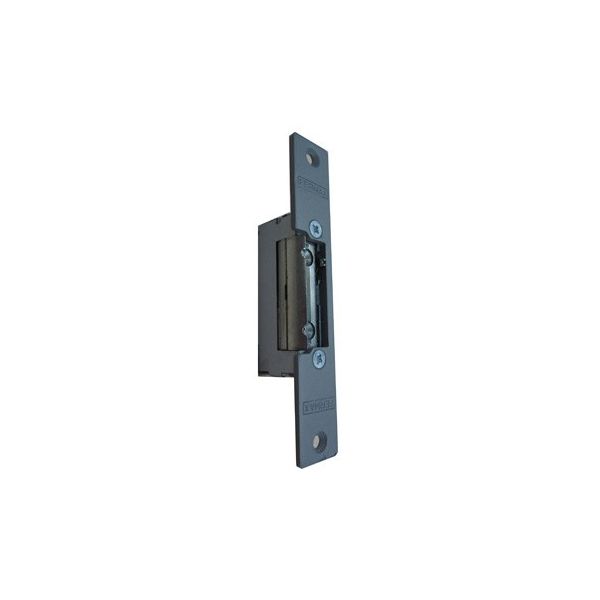

67511 multi-voltage universal door opener from Fermax

The 67511 electric door opener is a flush-mounted door opener that is installed in the door frame to control its opening from a remote location by means of an electrical device.

This opener is unlocked during the time a voltage of 10-24 Vac / dc is applied.

In addition, it includes a manual unlocking lever, which inhibits its operation, allowing free access.

The 67511 door opener from Fermax is a multi-voltage universal door opener with normal operation and unlocking lever.

What technical characteristics does the 67511 opener have?

  • It is to embed.
  • The flush-mounted electric door opener is a device that is installed in the door frame to control its opening from a remote location by means of an electrical device.
  • Reversible (Right DIN or DIN Left).
  • It allows opening both right and left.
  • Symmetrical.
  • It allows changing hands while maintaining the symmetry of the body.
  • DIN REGULATIONS
  • The DIN NORMATIVE establishes the opening direction of the door and names the type of door opener installed.
  • Looking at the door from the side where the hinges are visible:
  • If the hinges are to the left of the observer, it is a Left DIN door opener.
  • If the hinges are to the right of the observer, it is a Right DIN lock release.
  • There are several types of door opener mechanisms, depending on the TYPE OF OPERATION that is needed.
  • TYPE N_NORMAL_MULTIVOLTAGE 10-24Vac / dc:
  • N (Normal operation and activation at 10-24 Vac / dc): the opener is unlocked during the time a voltage of 10-24 Vac / dc is applied.
  • D UNLOCK
  • The lock release includes a manual release lever, which inhibits its operation, allowing free access.
  • MAX ADJUSTABLE LATCH:
  • The lock release includes an adjustable latch, allowing an exact adjustment between the latch and the lock slip, with a margin of 4mm. Allows the door leaf not to press the lock release latch.
  • Flush mounting Type P22.
  • For doors of passage.
  • Gray metal trim type P22 which, together with an electric mechanism, forms a flush-mounted door opener. Recommended for aluminum and PVC profiles of small size.
  • Dimensions: 22 (H) x130 (V) mm.

What technical specifications does the 67511 opener have?

  • Consumption: N_MULTIVOLTAJE 10-24V: 12Vac: 250mA, 12Vdc: 280mA, 24Vac: 500mA, 24Vdc: 560mA
  • MAX adjustment: 2mm
  • Holding force: 330Kg-f / 3230N
  • Temperature: -15ºC to + 40ºC
  • Cycles tested: 400,000
More Information
EAN8424299675114
Systemmultivoltage
SERIEAbrepuertas
ColorSilver
CurrentAC / DC
FunctioningWith Lock Lever
Multivoltage 10 to 24 Vc/VaYes
