4CH and 4Mpx IP Recorder with 4 POE Ports

SKU
HWN-2104MH-4P
Brands: Hikvision
Availability: On request
1 to 7 days
€112.65 Tax included
Hikvision

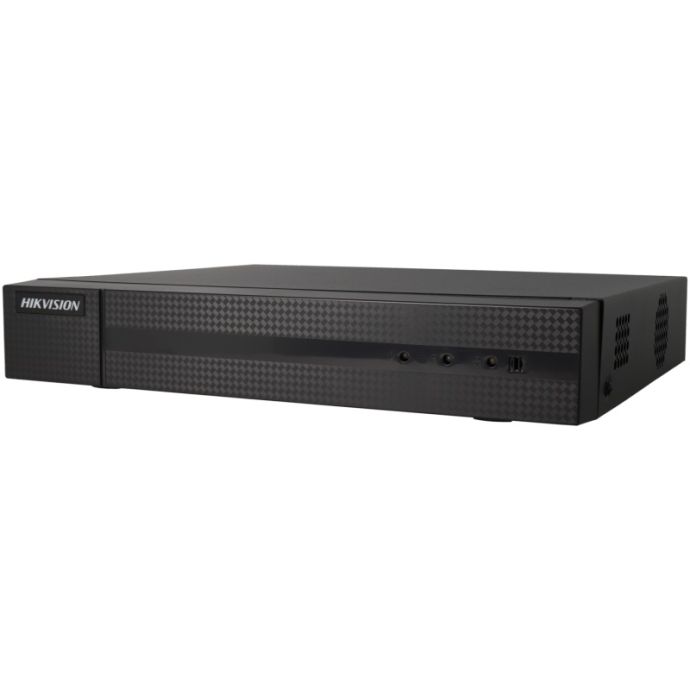

NVR Recorder for IP Cameras with 4 POE channels HWN-2104MH-4P

This 4-channel NVR recorder allows a maximum resolution of 4Mpx, in which you can connect IP surveillance cameras. It is compatible with ONVIF, so you can connect cameras compatible with this protocol, providing you with a higher level of security.

The 4 ports are POE, being able to feed the cameras through the recorder.

The recorder has bidirectional audio (1 input and 1 RCA output), it also has 1 HDMI output and another VGA. Possibility of connecting a 3.5” hard drive of up to 6TB.

Package content:

*Hikvision NVR Recorder
*Mouse
*Power cord
*CD with manual and software

Especificaciones Técnicas del Grabador NVR para Cámaras IP de 4 canales HWN-2104MH-4P



Brand Hikvision
Inputs for IP cameras LAN port up to 4 channels
Power over Ethernet 4 port PoE Switch IEEE802.3af/at (max. 50 W)
IP compatible cameras HIKVISION, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI Full HD, 1 VGA
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth 40 Mbps downstream / 60 Mbps upstream
Main Stream recording 4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Decoding capacity 1CH@4Mpx or 2CH@1080p
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection
External Backup USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory 1 SATA HDD 3.5" of up to 6 TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power DC 48 V, 50/60 Hz
Dimensions / Weight 48 (H) x 315 (W) x 240 (D) mm / 1.0 Kg (without HDD)
More Information
EAN6941264092186
SystemIP/WiFi
SERIE4Mpx
IncludedMouse, Power supply
Event notifierNo
No. CCTV Recorder Inputs4 IP
Audio in ports1
Product BrandHikvision
