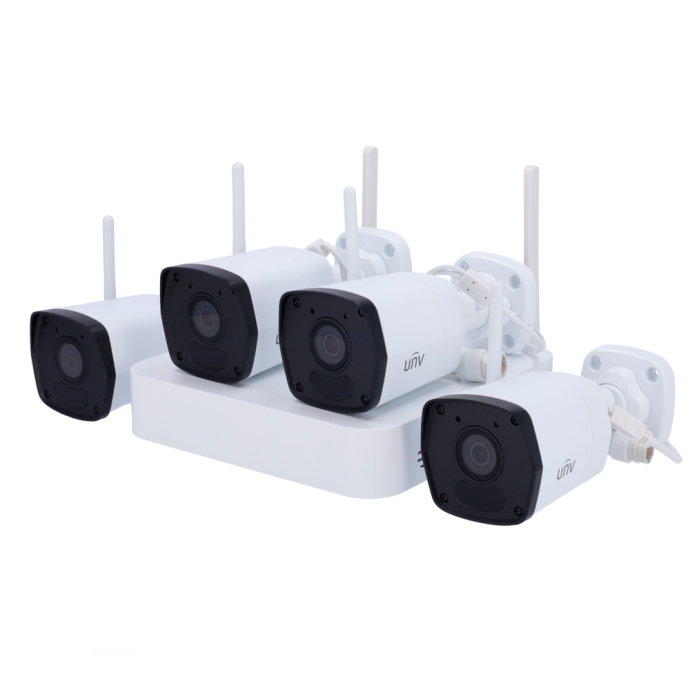

Uniview Video Surveillance Kit: 4 Cameras + NVR Recorder

SKU

UV-KIT114-B42W

Brands: Uniview

Availability: On request

Delivery: 1 to 7 days

€392.49 Tax included

Uniview Video Surveillance Kit: 4 Cameras + NVR Recorder

This kit brings everything you need to create your own recording system consisting of an NVR video recorder and 4 IP cameras. A plug and play video surveillance kit that will allow you to install it through a web interface, CMS, smartphone and NVR.

The WiFi kit comes with 4 2Mpx cameras with IR night vision suitable for outdoor use, with an IP67 degree, ehternet and WiFi interface and the possibility of internal storage via microSD of up to 128GB. The recorder has 4 channels at 1080P, HDMI Full HD and VGA output, with Ultra265/H.265/H.264 video compression. With storage capacity of 1 hard drive up to 6TB.

Package content:

*4 Channel IP NVR Recorder

*4 Wi-Fi Bullet Cameras

*USB mouse

*Feeders

*Instructions for use

Details

Technical Specifications of the Uniview Video Surveillance Kit: 4 Cameras + NVR Recorder

UV-KIT114-B42W

*Uniview Video Surveillance Kit
*Ethernet and Wi-Fi connection
*NVR 4 IP channels
*4 IP67 bullet cameras
*Plug&Play
*WEB interface, CMS, Smartphone and NVR

Description:

*Uniview
*WiFi video surveillance kit
*Contains: 4 2Mpx cameras (1920x1080) with IR night vision suitable for outdoor use IP67 and 4CH 1080P *NVR Recorder
*HDMI FULL HD and VGA output
*Ultra265/H.265/H.264 compression
*Space for 1 HDD up to 6TB
*Compatible with WiFi 802.11b/g/n

Specs

IP cameras
Model	UV-IPC2122LB-AF28WK-G
Image sensing	1/2.9” 2 Megapixel Progressive Scan Sensor
Resolution	1920x1080 (1080p)
Transfer rate	Max 30 FPS
Compression	Ultra H.265 / H.265 / Ultra H.264/ H.264
Lens	2.8 mm
Minimum lighting	Color: 0.01 Lux / 0 Lux B/W
Network interface	Ethernet 10/100 BaseT y Wifi IEEE 802.11b/g/n
Plug-and-play access	Automatic detection and addition of cameras
Image enhancements	3D-NR, HLC, BLC, OSD, PM, ROI, MD
Internal storage	Tarjeta MicroSD, Max 128 GB
Use	Suitable for outdoor IP67
Feeding	DC 12 V / 4 W
Dimensions / Weight	172 × 76 ×72 mm / 250 g
NVR
Inputs for IP cameras	LAN port up to 4 channels, Wi-Fi
Video outputs	1 HDMI Full HD / VGA
Video compression format	Ultra H.265 / H.265 / Ultra H.264 / H.264
Display resolution	1920x1080p, 1600x1200, 1280x1024, 1280x720, 1024x768
Recording resolution	1080p / 960p / 720p
Simultaneous multifunction	Pentaplex: Direct, Recording, Playback, Backup and Remote Access
Recording method	Manual, scheduled, motion detection
Internal storage	1 HDD SATA 3.5" up to 6TB
Communication	USB (Mouse and backup) / RJ45 (Ethernet) / Wi-Fi
Remote access	Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Feeding	DC 12 V / 9 W
Dimensions	205mm × 205mm × 47mm / 580 g
