50 Fermax Marine SIP 3 Pushbutton Plate ST3 CVP103

SKU
FER1678
Brands: Fermax
€838.81
Tax included
Availability: On request
1 to 7 days

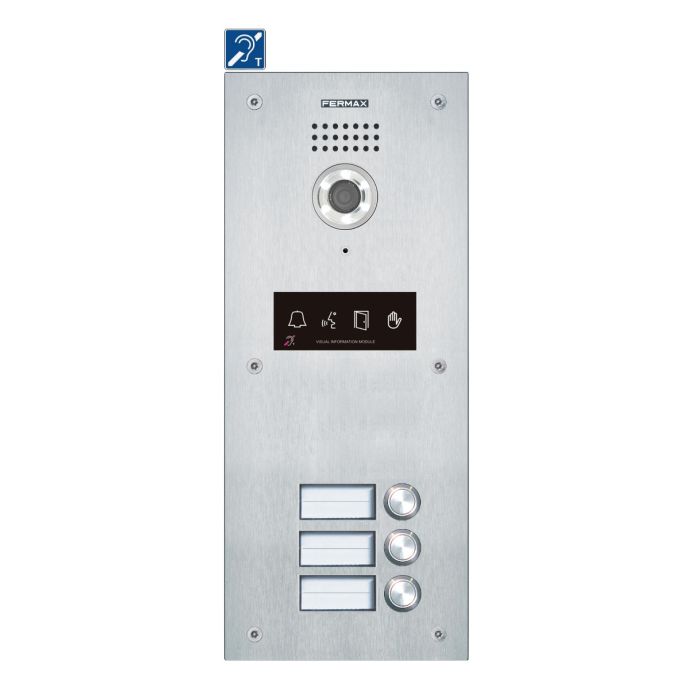

Marine SIP ST3 CVP103 Fermax 1678 plate

The Fermax Marine SIP 1678 plate is a professional entrance panel with 3 buttons , designed for installations of SIP intercom and video intercom in environments where it is required maximum mechanical and environmental resistance .

Made in AISI 316L stainless steel with a thickness of 2.5 mm , this vandal-proof plate IP65 IK09 is prepared to withstand impacts, vandalism and extreme weather conditions, including humid, saline or corrosive environments .

The vandal-proof stainless steel pushbuttons , with anti-blocking system and information card holder, guarantee reliable operation even in high-traffic facilities, providing long-term security and durability. The Marine SIP ST3 CVP103 board incorporates the módulo One to One , a visual signaling system using four LED icons that inform at all times of the status of communication with the home or central unit (call made, active conversation, door opening and busy channel).

Altogether, the Marine SIP Fermax plate is the ideal solution for new construction and replacement in demanding locations, where the robustness of the material and the reliability of the SIP system are decisive.

Reference: FER1678

-
+

Expanded information on Fermax Marine SIP ST3 CVP103 Plate

Practical Applications of the Fermax 1678 Marine SIP Plate

1. Installations in coastal areas and corrosive environments

Thanks to your manufactured in AISI 316L stainless steel, the Marine SIP board is especially suitable for coastal areas, marinas, swimming pools, chemical industries or environments with high humidity, where other materials degrade quickly.

2. Exposed accesses in public spaces and high-traffic buildings

Your certification IK09 and the anti-vandal pushbuttons make this board ideal for public accesses, parking lots, educational centers or corporate buildings , where resistance to impacts and intensive use is required.

Technical Specifications of the Fermax 1678 SIP Marine Plate

The Fermax Marine SIP plate combines mechanical robustness with advanced IP technology , allowing its integration into professional SIP systems and Fermax MEET platforms.

tocolos

SIP v1 (RFC2543), SIP v2 (RFC3261) sobre TCP, UDP o TLS
RTP/RTCP/SRTP
STUN
DHCP
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Video

2Mpx HD Camera
Resolution 720p/1080p
H.264

Audio

Codecs G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K, G.722, Opus
DTMF In-band, Out-band (RFC2833/SIP INFO)

Departures

2x Relé C-N/O, N/C máximo 30V/2A cc, 125V/0,5A ca

Red

Ethernet 10/100 Mbps
Modos IPv4, IPv6, IPv4 IPv6
Static, Dynamic, PPoE IP Address
VPN L2TP, OpenVPN
VLAN

Feeding

PoE Class 3 (30W max)
12Vcc/1A
Power supply 24Vdc/2A ref. 4840 required in case you need to power the inductive loop.

Others

Operating temperature: -30ºC to 60ºC
Operating humidity: up to 95%, non-condensing
Tested according to IEC 60068-2 standard



More Information
EAN 8424299016788
Hight 0.000
Length 0.000
Width 0.000
ACCESOS - SISTEMA SIP
ACCESOS - SERIE MARINE
Color Silver
Color Portero/Videoportero Color
Type Entrance panel
Usar stock disponible No
Product Brand Fermax
