Marine SIP ST2 CP202 plate by Fermax

SKU
FER1674
Brands: Fermax
€513.20
Tax included
Availability: On request
1 to 7 days

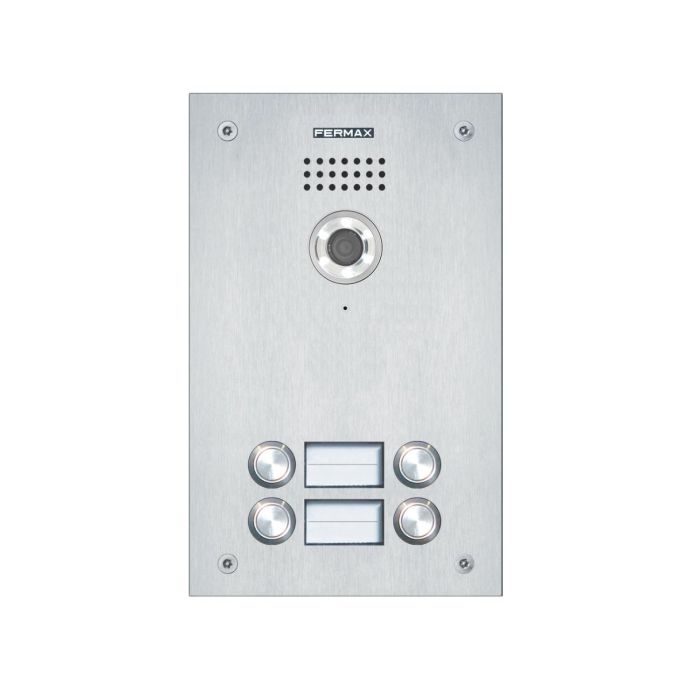

Fermax Marine SIP ST2 CP202 Plate – 4 Push Buttons (2 rows × 2 columns), HD Camera, AISI 316L Steel

The Fermax Marine SIP ST2 CP202 (Ref. 1674) is a heavy-duty SIP video intercom board designed for outdoor installations in demanding environments. Built in 2.5mm AISI 316L stainless steel , is certified with IP65 and IK09 , which ensures total protection against humidity, dust, impacts and vandalism.

It has four anti-vandal pushbuttons distributed in 2 rows × 2 columns , an ideal configuration for buildings with four homes, multiple offices or shared accesses. Includes card holder for user identification.

His 2MP HD camera With 720p/1080p resolutions it allows clear vision even in adverse conditions. Integrated SIP electronics support programming via webserver , sequential P2P calls up to 8 terminals and simultaneous connection with two VoIP switchboards , expanding its compatibility with professional systems.

As with the entire Marine range, this plate does not include embedding box , allowing you to choose between recessed or surface installation according to the needs of the project.

Reference: FER1674

-
+

Expanded Information of the Fermax Marine SIP ST2 CP202 Plate

Practical applications of the Fermax Marine SIP ST2 CP202 Plate

1. Buildings with four homes, offices or independent units

Your matrix 4 buttons (2×2) allows each call to be assigned to a different user or home, facilitating management in portals with four entities. The integrated HD camera provides a clear view, improving security and access control.

2. VoIP installations outdoors exposed to extreme weather

The Marine plate is especially suitable for humid areas, coastal environments, industrial spaces or busy accesses. It supports SIP v1/v2, SRTP, VLAN, VPN protocols and multiple audio/video codecs, integrating with IP PBXs, MEET devices and the MEET ME App*. This makes it a robust solution for residential and corporate projects.



Technical Specifications – Fermax Marine SIP ST2 CP202 (Ref. 1674)

FEATURE DETAIL
Reference 1674
Model Marine SIP ST2 CP202 Board
Material AISI 316L stainless steel (2.5 mm)
Protection IP65 / IK09
Pushbuttons 4 × anti-vandal (2 rows × 2 columns)
card holder Yeah
Camera HD 2 Mpx – 720p/1080p – H.264
Audio G.711A/U, G.729A/B, iLBC, G.723.1, G.726, G.722, Opus
SIP protocols SIP RFC2543 / RFC3261, RTP/RTCP/SRTP, STUN, TR-069
Connectivity Ethernet 10/100 – IPv4/IPv6 – DHCP/PPPoE – VLAN
Relays 2 × C-N/O, N/C (30V/2A cc – 125V/0,5A ca)
Programming Integrated web server
Compatibility MEET – App MEET ME*
Feeding PoE Class 3 (30W max) or 12 Vdc / 1A
Temperature -30 ºC and 60 ºC
Humidity Up to 95% non-condensing
Embedded box Not included – Ref. F04642
Surface box Not included – Ref. F04646
Packed weight 1.298 kg
Packaging measurements 8,2 × 25,2 × 16,4 cm
Technology SIP Videoporter
More Information
EAN 8424299016740
Hight 0.000
Length 0.000
Width 0.000
ACCESOS - SISTEMA SIP
ACCESOS - SERIE MARINE
Color Silver
Color Portero/Videoportero Color
Type Entrance panel
Usar stock disponible No
Product Brand Fermax
Write Your Own Review
You're reviewing:Marine SIP ST2 CP202 plate by Fermax
Your Rating
File Label Size Download
pdf Ficha Técnica Placa Marine SIP ST2 CP202 de Fermax 110.5 KB Download
pdf Declaración de Conformidad Placa Marine SIP ST2 CP202 de Fermax 137.3 KB Download
pdf Guía Rápida Placa Marine SIP ST2 CP202 de Fermax 1.4 MB Download
