Access Control Kit AC-MAX 4 Doors Fermax

SKU

FER5224

Brands: Fermax

Availability: On request

Delivery: 1 to 7 days

€764.48 Tax included

Access Control Kit AC-MAX 4 Doors Fermax 5224

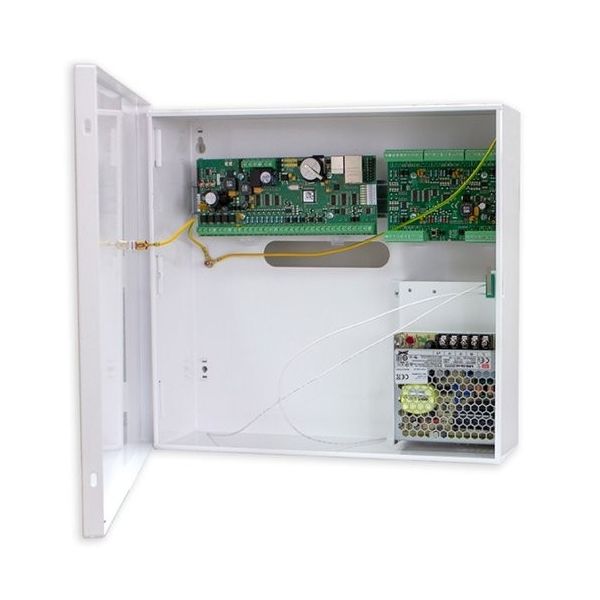

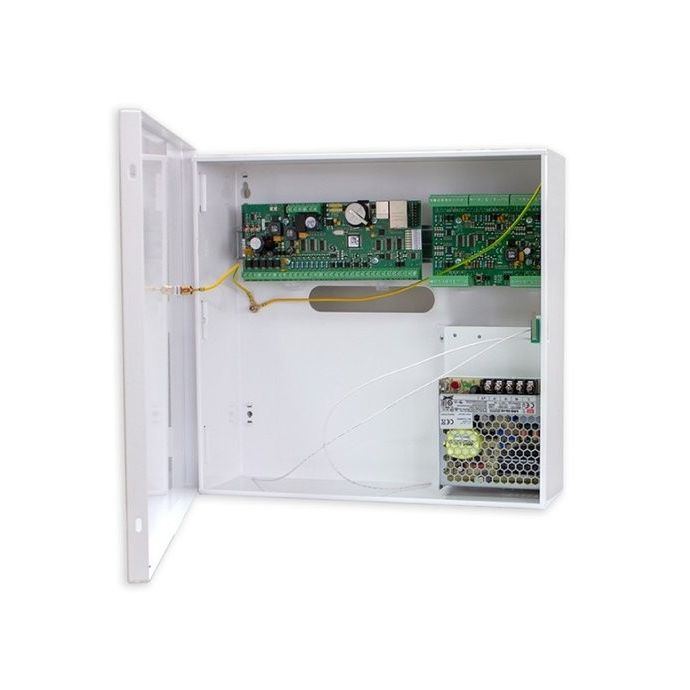

Access control kit for four doors consisting of a metal box with a PWR4D 13.8Vdc power supply, an AC-MAX-CU TCP/IP network controller and an EXP4D I/O expander. Controlled doors can have Wiegand entry or FPAC-MAX (RS-485) fingerprint entry/exit readers.

This kit allows a centralized access control installation of up to 4 doors using proximity, keyboard or fingerprint readers. Each controlled door has a current output of 0.2A for readers and a current output of 1.0A for door openers and other door devices. The complete system is powered from the own power supply included in this kit.

Details

AC-MAX Centralized Access Control Kit for Four Doors

What does the Fermax 5224 4 Door AC-MAX Kit include?

BOX-IP16 metal box
PWR4D 13.8Vdc power supply
AC-MAX-CU controller on TCP/IP network. It manages up to 4 doors each door with an entry reader, therefore it allows the connection of up to 4 Wiegand readers or 8 FPAC-MAX fingerprint readers (4 entry and 4 exit).
EXP4D I/O Expander
