Access Point WIFI6 11ax Cloud 4T4R EnGenius

SKU

ENGECW230S

Brands: EnGenius

Availability: On request

Delivery: 1 to 7 days

€595.07 Tax included

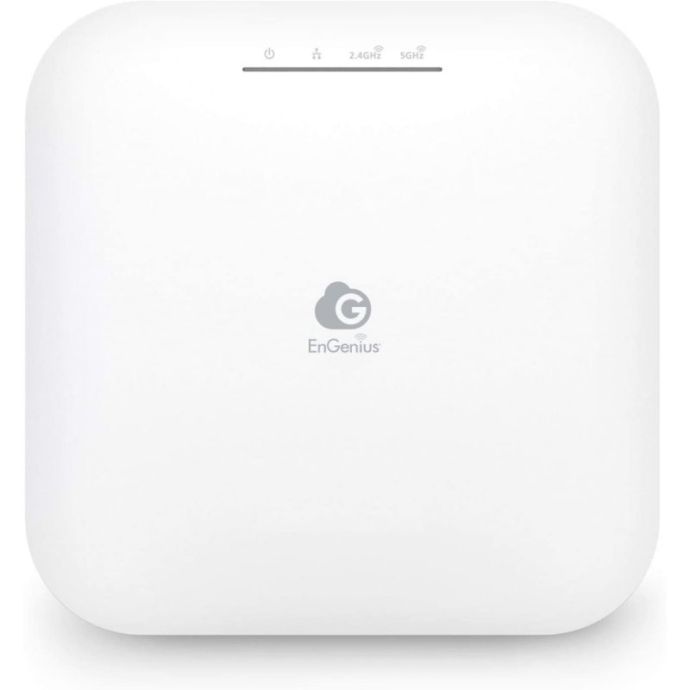

Access Point WIFI6 11ax Cloud 4T4R EnGenius

Designed with a sleek, low-profile style, this indoor access point provides high efficiency and security for client and device connections.

The device incorporates 802.11ax technology, such as OFDMA, MU-MMIMO, and spatial reuse. It reaches maximum speeds of 1,148 Mbps (at 2.4GHz) and 2,400 Mbps (at 5GHz).

Higher performance with a 2.5GbE ethernet port and supports 802.3at and 48V PoE input.

This access point enables energy savings for IoT clients and devices.

Package Contents:

1 – ECW230 Cloud Managed Indoor Access Point

1 – Ceiling Mount Base (9/16” Trail)

1 – Ceiling Mount Base (15/16” Trail)

1 – Screw kit for ceiling and wall mounting

1 – Quick Installation Guide

Details

Technical Characteristics of the Access Point WIFI6 11ax Cloud 4T4R EnGenius

Standards:

IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac

Antenna:

4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna

Physical Interface:

1 x 10/100/1000/2500 Ethernet Port (PoE+)
1 x DC Jack
1 x Reset Button

LED Indicators:

1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source:

Power-over-Ethernet: 802.3at Input
IEEE 802.11e Compliant Source
12VDC /2A Power Adapter (optional)

Maximum Power Consumption:

19.5W

Wireless & Radio Specifications:

Operating Frequency:

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes:

AP, AP Mesh, Mesh

Frequency Radio:

2.4 GHz: 2400 MHz~2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power Up to 20 dBm on 2.4 GHz:

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF):

Radio Chains/Spatial Stream :

4 × 4:4

SU-MIMO:

Four (4) spatial stream Single User (SU) MIMO for up to 1,148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4 GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5 GHz radio.

MU-MIMO:

(4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously.

Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4 GHz simultaneously

Supported Data Rates (Mbps):

802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies:

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization:

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation:

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
