Antenna TDT-UHF Nano HDTN-694V LTE 5G Ikusi OUTLET

SKU
IKU1825OUT
Brands: Ikusi
Availability: On request
1 to 7 days
€19.31 Tax included
-
+

OUTLET: UHF Nano HDTN-694V antenna from Ikusi 1825

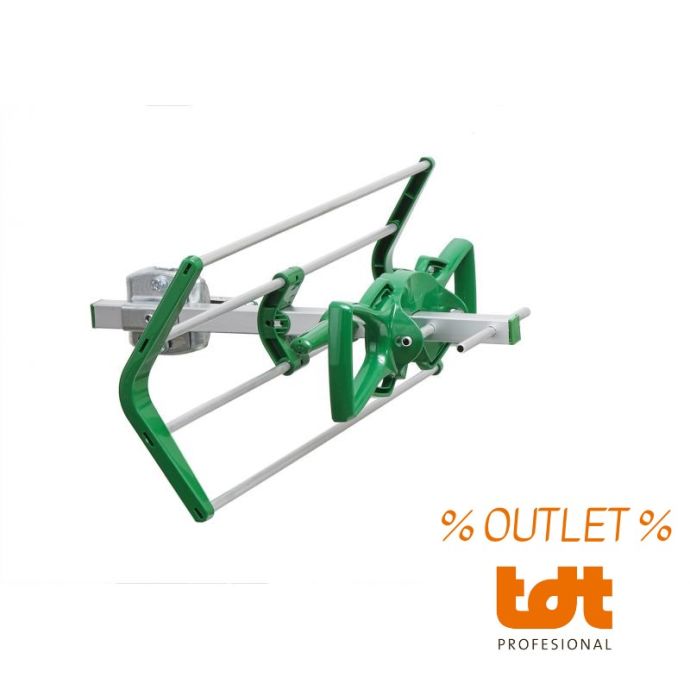

Small antenna designed for receiving TV signals in the UHF band with an average gain of 12dB. It is formed by a reflector in the form of a dihedral composed of 4 aluminum tubes and a compact dipole. Valid for horizontal and vertical polarization.

The Ikusi 1825 reference antenna integrates a 5G LTE filter with rejection on channel 48 to eliminate interference from the 2nd Digital Dividend. It works in the frequency range of channels 21 to 48 (470-694 MHz).

Its assembly is really simple and does not require tools, a threaded male connector and a rubber protector are supplied next to the antenna. This antenna can be fixed on masts of Ø 25 to 50 mm.

What is TDTprofesional OUTLET?

Our Outlet category is made up of products from our clients' returns, which are in perfect condition and have been tested by our technical department to guarantee their correct operation. The product packaging may show knocks or the product may not be sent in its original packaging. The products in our Outlet include a special discount and have the same guarantee as new products.

OUTLET: Technical Specifications of the Ikusi 1825 HDTN-694V Nano UHF Antenna

DTT-UHF Nano antenna for channel 21 to 48 (2nd Dividend) of Ikusi.

What are the main features of the Ikusi UHF HDTN-694V antenna?

  • Valid for vertical and horizontal polarization allowing varying the elevation angle.
  • Supplied with 1 threaded male connector and a rubber protective cap.
  • Fixing to masts of Ø 25 to 50 mm.
  • Reduced size antenna
  • Adapted to the 2nd Dividend
  • Rejection of channel 48
  • Easy to install on wall, caravans, etc.
  • 12dB average gain
  • Assembly without tools

What technical specifications does the Ikusi HDTN-694V 1825 UHF antenna have?

  • MODEL HDTN-694V HDTN-790V
  • REF. 1825
  • Channels: 21 - 48 (470-694 MHz)
  • Nominal gain: 12 dB
  • D / A ratio: ≥ 16 dB
  • Opening angle: 60º H / 80º V
  • Wind load:
    • 130 Km / h: 18 N
    • 150 Km / h: 23 N
  • Length: 50cm
  • Green color
More Information
EAN 8435136418252
System DTT
SERIE Pasive
Type DTT 5G
Entorno Exterior
Orientation Directive
Gain Medium
Dipole Passive
LTE compatible Yes
Supply required No
Product Brand Ikusi
