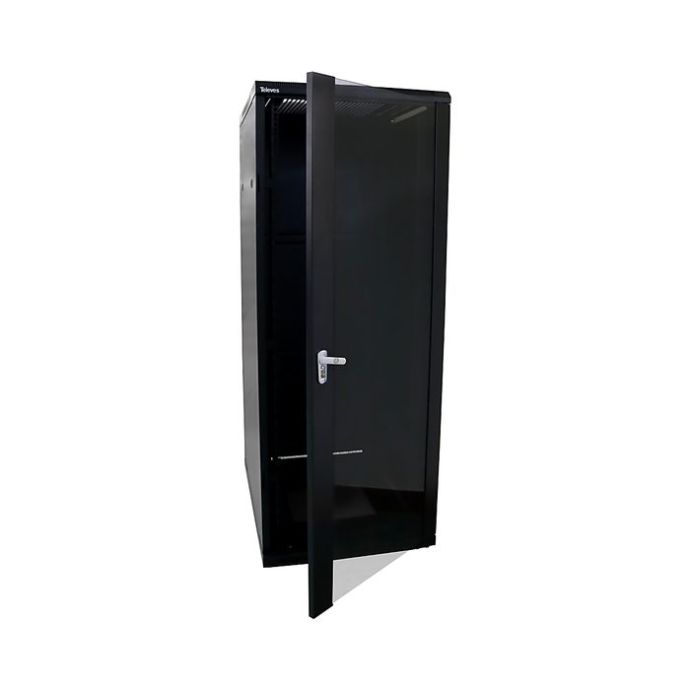

Televes 19'' 42U 600x800 mm Rack Cabinet
Televes 533142 19'' 42U 600x800 mm Rack Cabinet
The Televes 19'' 42U 600x800 mm rack cabinet provides a centralised, protected and organised space for active and passive telecommunications equipment. Its steel construction, lockable doors and 42U capacity make it a robust solution for professional network installations.
Its 800 mm depth accommodates equipment requiring additional installation space, particularly in GPON, fibre-optic, UTP/FTP data cabling and coaxial distribution infrastructures. The compact 600 mm width helps optimise the available space in technical rooms and telecommunications areas equipped with 19-inch floor-standing rack cabinets.
Designed for floor installation, it is supplied assembled with a tempered-glass front door, steel rear door and removable side panels. It is a complete product for new installations, system expansions or cabinet renewals, not a replacement part. The compatible Televes 533176 ventilation tray can be added when the thermal load generated by active equipment requires forced ventilation.
With a height of 2010 mm, depth-adjustable profiles, protective earthing and a maximum load capacity of 1000 kg when installed directly on the floor, the Televes 533142 supports accessible, secure and well-organised multi-technology deployments. Internal cable management can be completed with a 19'' 1U brush cable-management panel.
Reference: TEL533142
