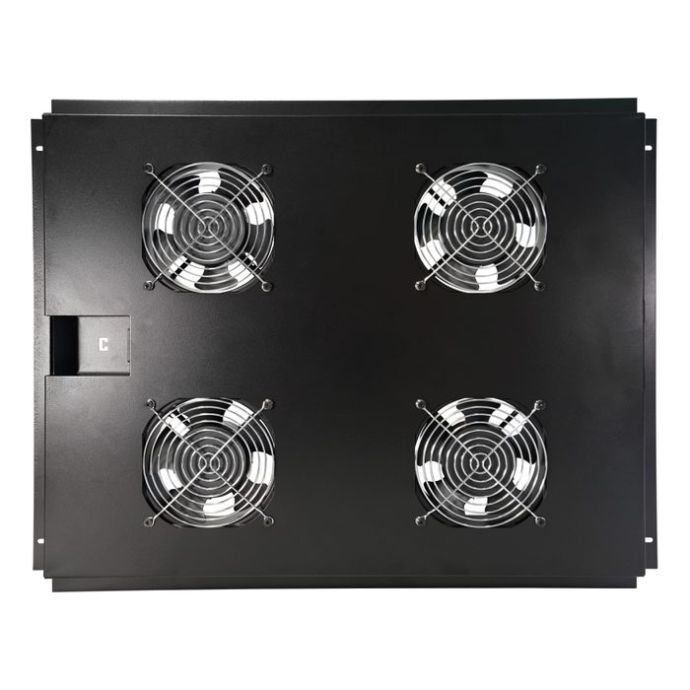

Televes Top Tray with 4 Fans for 19" Rack, 800mm - 1000mm Depth
Top Tray with 4 Fans for 19" Rack, 800mm and 1000mm Depth, 780m3/h
The Televes 533176 top tray with 4 fans is a professional solution for improving forced cooling inside 19-inch rack cabinets with active electronic equipment. It helps extract the heat generated by servers, switches and telecom devices, keeping the rack within a safer operating temperature range.
This ventilation unit is suitable for 19" racks with 600x800 mm, 800x800 mm and 800x1000 mm structures. It is designed for new installations or for upgrading the airflow in an existing rack when natural ventilation is not enough. It can be used together with compatible rack cabinets according to the installation format.
Its main installation position is on the top of the rack, although it can also be mounted at the bottom by rotating the fans 180º to optimize air intake and exhaust flow. With an airflow of 780 m3/h, it can operate continuously or be controlled by a compatible thermostat, such as an analog rack thermostat.
Made from 1 mm thick black RAL 9005 steel, it includes 4 axial fans, an IEC C14 connector and fixing screws. It is a practical choice for installers who need to improve air circulation in telecom, networking or technical room racks without replacing the full cabinet.
Reference: TEL533176
