Cable 2 Fibras Ópticas Monomodo Interior Amarillo CPR DCA en bobina de 500m de Openetics

SKU
OPE49823B
Brands: Openetics
€241.40
Tax included
Availability: On request
1 to 7 days

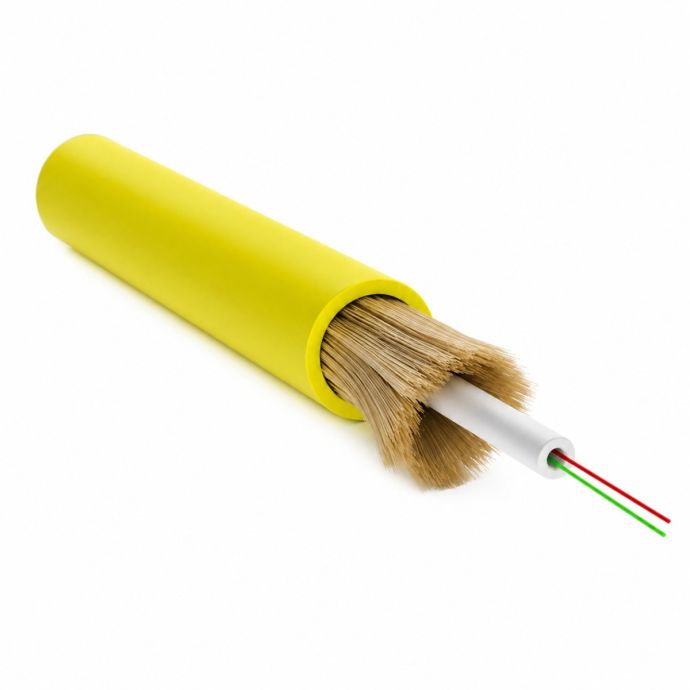

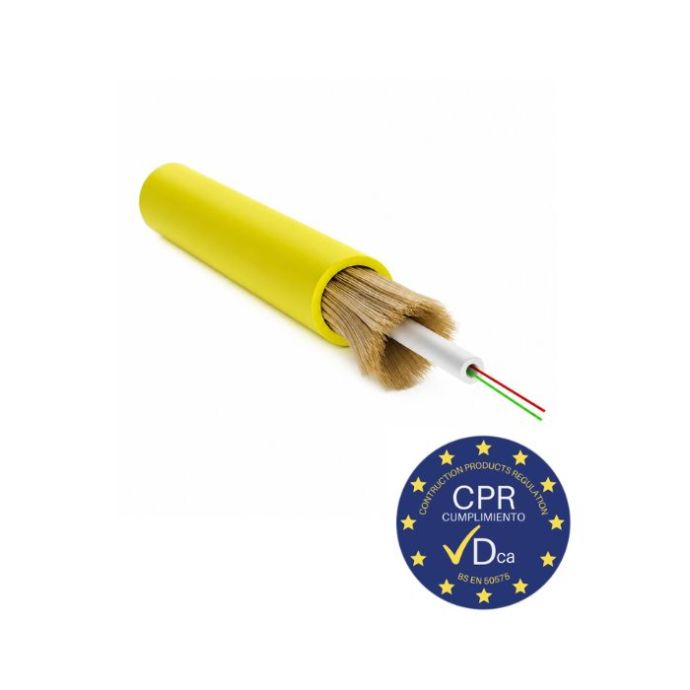

Openetics 2-Fiber OS2 9/125 μm G.657.A2 Dielectric Fiber Optic Cable

The Openetics 49823 dielectric fiber optic cable is designed for professional telecommunications installations requiring reliable performance, low attenuation and long-term durability. Its optimized construction makes it an excellent choice for FTTH deployments, structured cabling projects and indoor optical networks.

Featuring high-quality OS2 singlemode 9/125 μm fiber with G.657.A2 technology, this cable delivers outstanding transmission performance while maintaining excellent flexibility. The bend-insensitive fiber design helps minimize signal loss, even in demanding routing conditions with tight bends and limited installation space.

Its fully dielectric construction contains no metallic elements, providing complete immunity to electromagnetic interference and making installation safer and easier in a wide range of environments. This cable is particularly suitable for installers working on modern fiber optic infrastructures where reliability and ease of handling are essential. It is intended for new fiber optic installations rather than replacement applications.

Combining low bending losses, premium singlemode fiber performance and a halogen-free LSZH jacket, the Openetics 49823 is a dependable solution for high-performance optical networks in residential, commercial and telecommunications projects.

Reference: OPE49823

-
+

Extended information about Dielectric Fiber Optic Cable

Practical applications of the Dielectric Fiber Optic Cable

Example 1. FTTH deployment in residential buildings:

In FTTH installations for multi-dwelling buildings, this cable allows vertical and horizontal distribution while maintaining excellent transmission quality. Its OS2 singlemode 9/125 μm fiber provides low attenuation and high capacity for future bandwidth upgrades.

Example 2. Technical ducts and communication rooms:

In data centers, technical rooms or corporate infrastructures, the fully dielectric construction helps prevent issues caused by electromagnetic interference. Its G.657.A2 fiber makes routing easier in confined spaces, bends and complex cable paths without compromising optical performance.

Package contents of the Openetics 2-Fiber OS2 9/125 μm G.657.A2 Dielectric Fiber Optic Cable

  • OS2 9/125 μm singlemode dielectric fiber optic cable.
  • 2 tight-buffered G.657.A2 fibers.
  • 505-meter supply box.
  • Manufacturer marking and identification.

Technical specifications openetics 2-fiber os2 9/125 μm g.657.a2 dielectric fiber optic cable

Brand Openetics
Manufacturer reference 49823
SKU OPE49823
Product type Dielectric fiber optic cable
Application Indoor
Fiber type OS2 singlemode
Fiber diameter 9/125 μm
Number of fibers 2
Construction Tight-buffered fibers
Fiber standard G.657.A2
CPR classification Dca s2 d2 a1
Jacket LSZH
Jacket color Yellow
Halogen-free Yes
Fully dielectric Yes
EMI/RFI immunity Yes
Installation temperature -20 °C to +60 °C
Operating temperature -40 °C to +70 °C
Storage temperature -40 °C to +70 °C
Mode field diameter @1310 nm 8.8 ± 0.4 μm
Mode field diameter @1550 nm 9.8 ± 0.5 μm
Cladding diameter 124.8 ± 0.7 μm
Core-cladding concentricity error ≤ 0.5 μm
Cladding non-circularity ≤ 0.7%
Supply length 505 m
Recommended use FTTH, FTTx, backbone, buildings, data centers and data networks
Standards IEC 60793-1, IEC 60793-2, IEC 60794-2, IEC 60332-1-2, IEC 60754-1/2
CPR certified Yes
CE marking Yes
More Information
Hight 0.001
Length 0.001
Width 0.001
Usar stock disponible No
Product Brand Openetics
Write Your Own Review
You're reviewing:Cable 2 Fibras Ópticas Monomodo Interior Amarillo CPR DCA en bobina de 500m de Openetics
Your Rating
File Label Size Download
pdf Ficha técnica OPE49823 Cable fibra óptica dieléctrico 265.4 KB Download
