Openetics UTP CAT6 Indoor Cable White DCA LSZH 305m Reel

SKU
OPE0706D2B
Brands: Openetics
€138.47
Tax included
Openetics
Availability: In stock
24/48 Hours

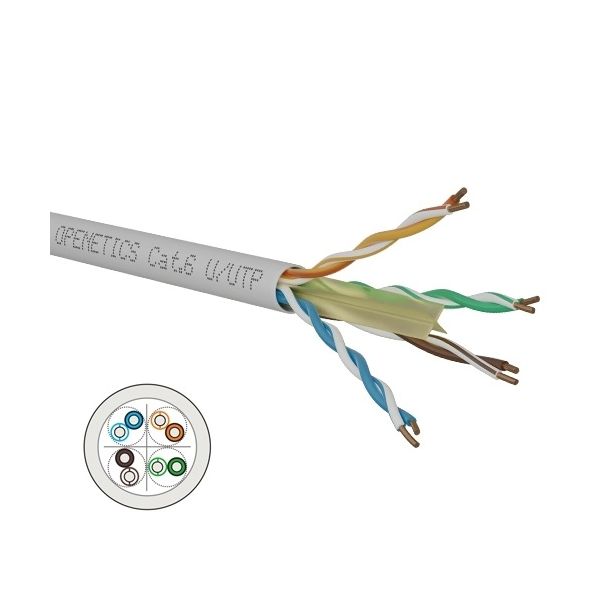

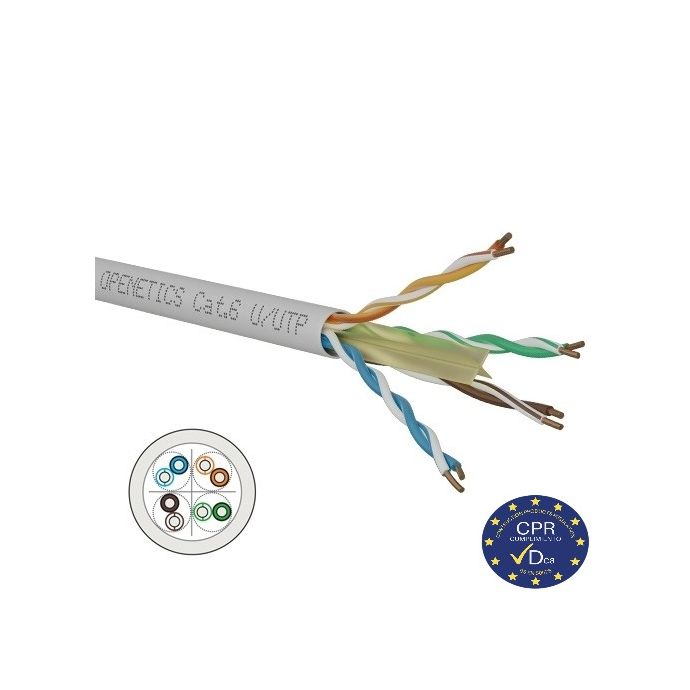

Openetics 305m Category 6 Indoor Cable Reel White DCA LSZH

The 0706D2 cable is perfect for professional or home installations as it has a high quality. It is a rigid category 6 U/UTP cable , perfect for horizontal cabling, designed to transmit data, voice or even PoE without losses and supporting frequencies up to 250 MHz and 1 Gbps speed.

The LSZH option (low smoke and halogen-free) and fire class Dca-s2, d2, a1 offer extra safety in inhabited environments, ideal for sensitive buildings, offices and facilities. It has an internal separator crossarm that guarantees a constant stranding, reducing crosstalk and maintaining performance.

This cable is certified for applications such as: Gigabit Ethernet, Token Ring, ATM, PoE/PoE+, and even 10G Base-T (in lengths <50 m), offering versatility for current and future installations. Usethis cable to bring Gigabit networks to life through trunking or trays. The dispenser box makes it easy and tangle-free to pull out.

It is designed for horizontal indoor use in trunking or technical ceilings, not unprotected outdoor use. With this cable you will know that every meter delivers what it promises: fast network, safe and durable cable, make your installation speak for itself!

Technical Specifications of the Openetics 305m Rigid CAT6 UTP LSZH DCA Cable Reel

Parameter

Specification

Brand

Openetics

Model

0706D2

Cable Type

Cat. 6 U/UTP solid (4 pairs) with separator cross

Jacket

LSZH, fire-reaction class Dca‑s2,d2,a1 (EN 13501‑6)

Frequency

Up to 250 MHz

Speed

Suitable for 10/100/1000Base‑T, Token Ring, ATM, PoE/PoE+

Compatible Applications

LAN, voice, data, PoE, up to 10G Base‑T (<50 m)

Standards

ISO/IEC 11801, IEC 61156‑5, EN 50288‑6‑1, IEEE 802.3at, TIA/EIA‑568‑C.2, UL 444, etc.

Conductor

23 AWG solid copper

Insulation

0.95 mm polyolefin

Outer Diameter

≈ 5.4–5.8 mm

Operating Temperature

–20 °C to +60 °C; install: 0 °C to +50 °C; storage: –20 °C to +70 °C

Impedance

100 ± 5 Ω @ 100 MHz

NVP (Velocity Propagation)

≈ 67 %

Max. Resistance

≤ 176 Ω/km @ 20 °C

Box Length

305 m

More Information
Hight0.000
Length0.000
Width0.000
CTI - SystemCAT6
CTI - Serie305m
EntornoInterior
ColorWhite
Cobertura Exterior CablesLSFH
Conductor Interno CablesCopper (Cu)
Product BrandOpenetics
