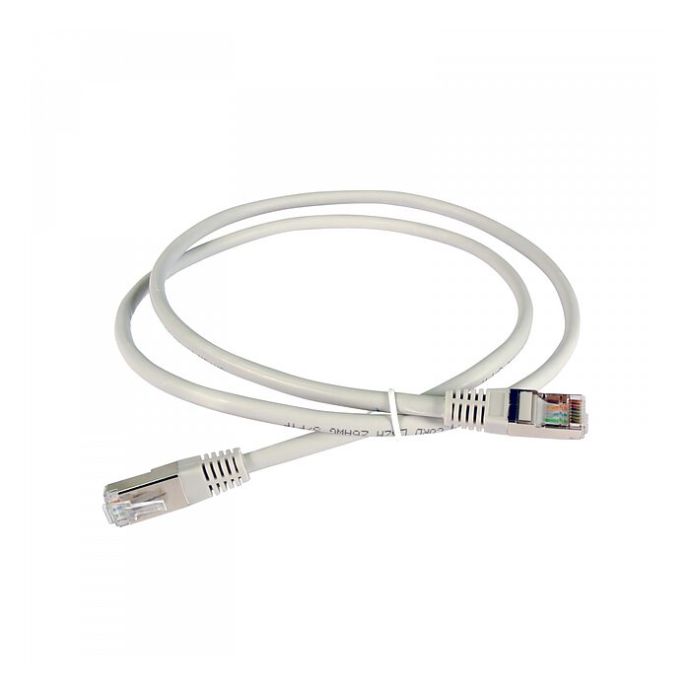

Televes Grey S/FTP Cat 6A LSFH Ethernet Network Cable 1 m

SKU
TEL209112
Brands: Televes
€3.98
Tax included
Availability: On request
1 to 7 days

Televes 209112 Grey S/FTP Cat 6A LSFH Ethernet Cable 1 m

The Televes 209112 Grey S/FTP Cat 6A LSFH Ethernet Cable 1 m is a professional solution for connecting computers, IP cameras, access points, switches or routers within high-performance local networks. Its pre-terminated design with RJ45 connectors at both ends allows a fast, clean and reliable connection.

This patch lead works in Ethernet networks with Cat 6A structured cabling and is suitable for 10Base-T, 100Base-T, 1000Base-T and 10GBase-T applications. With support for up to 10 Gbps and a 650 MHz bandwidth, it is especially suitable for installations requiring low latency, intensive data traffic, 4K/8K streaming, online gaming or frequent transfer of large files.

It is suitable for new installations and also for replacing or upgrading existing patch leads in racks, workstations, network electronics or PoE/PoE+ devices. Its S/FTP shielding combines an overall aluminium braid with individual foil shielding for each pair, helping to maintain a stable connection against electromagnetic interference in technical environments. For other lengths, you can also check the 3-metre S/FTP Cat 6A RJ45 CU LSFH grey patch lead.

The halogen-free LSFH outer sheath provides an additional safety benefit for indoor installations, as it reduces smoke and corrosive gas emissions in the event of fire. It is a suitable cable for integrators, telecommunications installers and users who need a compact, shielded RJ45 connection ready for demanding networks; as an installation accessory, the Televes 209924 Cat 6A RJ45 male grip connector can also be considered.

Reference: TEL209112

-
+

Extended information about Televes 209112 Grey S/FTP Cat 6A LSFH Ethernet Cable 1 m

Practical applications of the Televes 209112 Grey S/FTP Cat 6A LSFH Ethernet Cable 1 m

Example 1: connecting devices inside a communications rack with heavy data traffic

In an office, retail premises or technical room where the switch, router and network devices are close together, this 1-metre Cat 6A patch lead helps complete short links without leaving excess cable inside the rack. An installer would choose it to keep the cabinet tidy while maintaining RJ45 links ready for 10 Gbps, especially when the network handles backups, high-resolution video or internal services with heavy data traffic.

Example 2: PoE supply for IP cameras or access points near the switch

In an installation with IP cameras, VoIP phones or Wi-Fi access points powered from a PoE/PoE+ switch, this cable carries data and power through the same patch lead. Its S/FTP construction provides extra protection against interference when power, network electronics and several cables are installed close together, avoiding the need for separate power adapters for each compatible device.

Package contents of the Televes 209112 Grey S/FTP Cat 6A LSFH Ethernet Cable 1 m

  • 1 m grey S/FTP Cat 6A LSFH Ethernet network cable
  • 2 pre-terminated RJ45 connectors, one at each end
  • Manufacturer packaging: box of 10 units

Technical specifications Televes 209112 Grey S/FTP Cat 6A LSFH Ethernet Cable 1 m

Feature Value
Brand Televes
Manufacturer reference 209112
TDTprofesional SKU TEL209112
Logical reference PK6AL1G
EAN13 8424450250846
Cable type S/FTP
Category Cat 6A
Length 1 m
Colour Grey
Connectors RJ45 at both ends
Use Indoor
Transmission bandwidth 650 MHz
Data transfer speed Up to 10 Gbps
Ethernet compatibility 10Base-T, 100Base-T, 1000Base-T and 10GBase-T
PoE compatibility PoE / PoE+
Inner conductor Flexible copper
Conductor type 26 AWG
Conductor diameter 0.16 mm
Conductor insulation Polyethylene
Insulation diameter 1.1 mm
Pair shielding foil Aluminium + polyester
Outer shielding braid Aluminium
Outer sheath LSFH, Low Smoke Free of Halogen
Outer sheath diameter 6.2 mm
Outer sheath thickness 0.59 mm
Crucifix filler No
Ripcord No
Nominal impedance 100 ohms
Conductor resistance < 100 Ohm/km
Nominal velocity 79%
Working voltage 300 V
Spark Test 3000 Vac
Operating temperature -25 to 70 degrees C
Net weight 40 g
Gross weight 40 g
Dimensions 12 mm width x 1010 mm height x 10 mm depth
Main product weight 44 g
Manufacturer packaging Box of 10 units
More Information
EAN 8424450250846
Hight 0.000
Length 0.000
Width 0.000
CTI - System CAT6A
CTI - Serie 1m
Entorno Interior
Type FTP
Category 6A
Halogen-free Yes
Color Gray
Cobertura Exterior Cables LSFH
Conductor Interno Cables Copper (Cu)
Usar stock disponible No
Product Brand Televes
