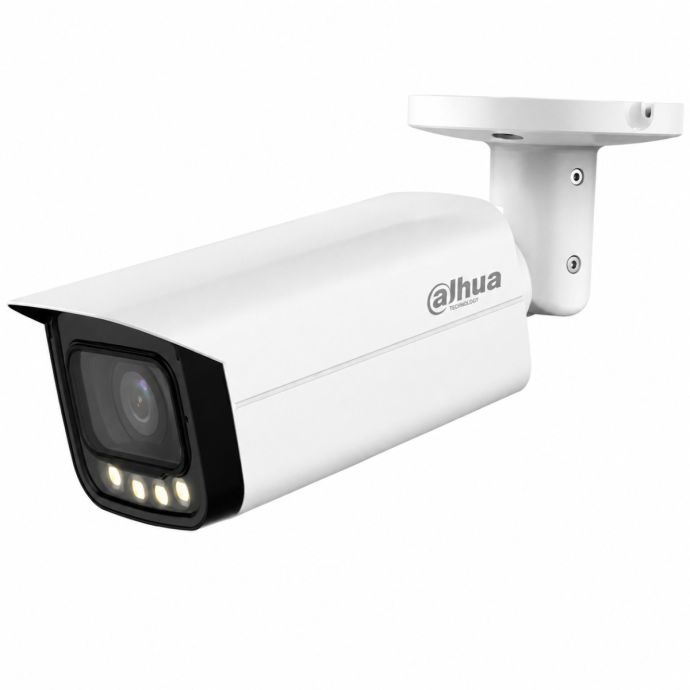

Dahua 5MP Hybrid Bullet Camera with Motorized 2.7-12mm Varifocal Lens, Smart Light IR 60m and IP67 Protection

SKU
DAH-HAC-HFW1509TUP-Z-A-LED-27135
Brands: Dahua
€120.12
Tax included
Availability: In stock
1 to 7 days

Dahua 5MP Hybrid Bullet Camera with Motorized 2.7-13.5mm Varifocal Lens, Smart Light 60m and IP67 Protection

The DAH-HAC-HFW1509TUP-Z-A-LED-27135 from Dahua is a professional bullet camera designed for surveillance projects that demand high image quality, flexible installation and broad compatibility. Its 4-in-1 hybrid technology allows seamless integration with HDCVI, TVI, AHD and CVBS systems, making it ideal for both new installations and CCTV upgrades.

Featuring a 5MP CMOS sensor and a motorized 2.7-13.5mm varifocal lens, this camera enables remote adjustment of the field of view to suit different monitoring requirements. Professional installers will appreciate the ability to fine-tune coverage without physically repositioning the camera, improving installation efficiency and reducing maintenance time.

The advanced Smart Light technology combines infrared illumination and intelligent white LED lighting with a range of up to 60 meters. When a person or vehicle is detected, the camera automatically activates the white light to provide full-color images with enhanced detail, while maintaining discreet infrared monitoring when no relevant targets are present. The built-in microphone also allows audio capture for a more complete surveillance solution.

With its rugged metal housing, IP67 weatherproof protection, integrated microphone and versatile hybrid compatibility, this Dahua camera delivers reliable performance in residential, commercial and industrial environments. It is a robust and future-proof solution for professional video surveillance projects.

Reference: DAH-HAC-HFW1509TUP-Z-A-LED-27135

-
+

Extended Information about the Dahua 5MP Hybrid Bullet Camera with Motorized 2.7-13.5mm Varifocal Lens, Smart Light 60m and IP67 Protection

Practical Applications of the Dahua 5MP Hybrid Bullet Camera with Motorized 2.7-13.5mm Varifocal Lens, Smart Light 60m and IP67 Protection

Example 1. Perimeter surveillance for industrial facilities:

The combination of 5MP resolution, motorized varifocal lens, and Smart Light technology allows effective monitoring of access points, perimeters, and logistics areas. Installers can remotely adjust zoom and focus settings to adapt coverage to project requirements, reducing maintenance time and site visits.

At night, intelligent illumination enables the identification of people and vehicles at long distances, providing higher-detail images than traditional infrared-only systems.

Example 2. Access control for retail stores, parking lots, and office buildings:

In vehicle entrances and pedestrian access points, Smart Light technology automatically activates white LED lighting when relevant movement is detected, capturing color images that facilitate identification of license plates, faces, and other critical details.

Thanks to its 4-in-1 compatibility, this camera is particularly suitable for CCTV upgrade projects, allowing significant image quality improvements without replacing the entire installed system.

Package Contents of the Dahua 5MP Hybrid Bullet Camera with Motorized 2.7-13.5mm Varifocal Lens, Smart Light 60m and IP67 Protection

  • 1 x Dahua DAH-HAC-HFW1509TUP-Z-A-LED-27135 Bullet Camera
  • 1 x Integrated mounting bracket
  • 1 x Installation screws and wall plugs kit
  • 1 x Mounting template
  • 1 x Quick installation guide
  • Manufacturer-supplied waterproof accessories

Technical specifications Dahua 5MP Hybrid Bullet Camera with Motorized 2.7-13.5mm Varifocal Lens, Smart Light 60m and IP67 Protection

Feature Specification
Brand Dahua
Model DAH-HAC-HFW1509TUP-Z-A-LED-27135
Technology HDCVI
Hybrid System 4-in-1 (HDCVI / TVI / AHD / CVBS)
Image Sensor 1/2.7" 5MP CMOS
Maximum Resolution 5MP (2880 x 1620)
Frame Rate Up to 25fps at 5MP
Lens Motorized Varifocal 2.7 ~ 13.5mm
Focus Type Motorized
Horizontal Viewing Angle 35° ~ 112°
Minimum Illumination 0.001 Lux @ F1.2
Day/Night Mode Automatic (ICR)
IR Range Up to 60m
White Light Range Up to 60m
Smart Light Technology Yes
Illumination Type Smart IR + Intelligent White LED Light
Color Night Vision Yes, through Smart Light technology
WDR 120dB True WDR
Backlight Compensation BLC / HLC
Digital Noise Reduction 2D-NR / 3D-NR
White Balance Auto / Manual
Automatic Gain Control AGC
Privacy Masks 8 configurable zones
Motion Detection Yes
Built-in Microphone Yes
Audio over Coax Yes (with compatible recorder)
Video Output Switchable HDCVI / TVI / AHD / CVBS
OSD Menu Coaxial control
Power Supply 12V DC ±30%
Maximum Power Consumption 11.8W
Environmental Protection IP67
Housing Material Metal
Installation Indoor / Outdoor
Operating Temperature -30°C to +60°C
Operating Humidity Less than 95% RH (non-condensing)
Dimensions 244.1 x 90.4 x 90.4 mm
Weight 790 g
Certifications CE, FCC, RoHS
Recommended Applications Perimeter surveillance, retail stores, parking facilities, industrial warehouses, residential communities, and office buildings



More Information
EAN 6939554927065
Hight 0.200
Length 0.100
Width 0.200
Usar stock disponible No
Product Brand Dahua
Camera Type Bullet
Optic Type Motorized Varifocal
Color White
Alimentación 12VDC
