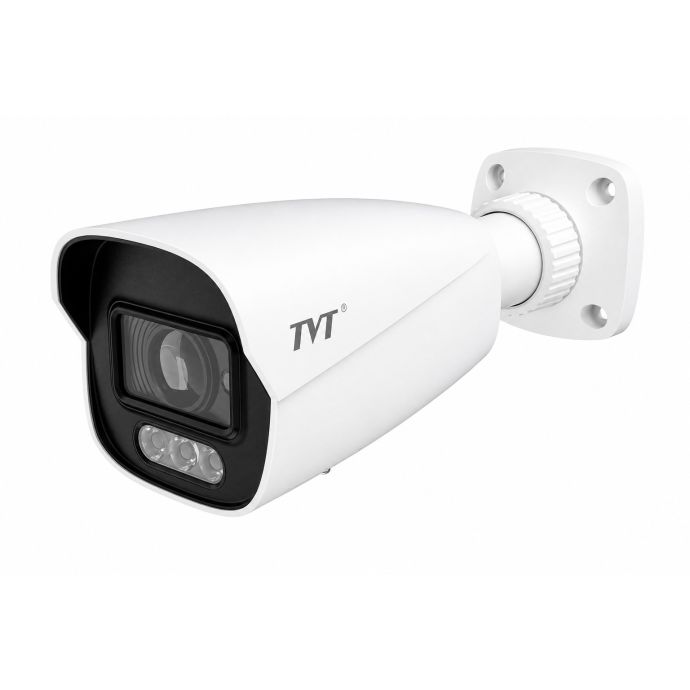

8MP IP Bullet Camera with 2.8-12mm Motorized Varifocal Lens, 50m IR, 30m White Light, SD and AI by TVT

SKU
TVT-276
Brands: TVT
€194.81
Tax included
% Discount for professionals
TVT
Availability: On request
1 to 7 days

8MP IP Bullet Camera with Dual Illumination and 2.8-12mm Motorized Lens

The TVT-276 8MP IP bullet camera is designed for video surveillance installations requiring large-area coverage with a high level of detail. Its 3840 × 2160 pixel resolution makes it suitable for monitoring car parks, building façades, perimeters and industrial facilities, while allowing detailed digital zoom to examine faces or other elements within the scene. Discover more IP and WiFi cameras to complete professional video surveillance installations.

Its 2.8 to 12mm motorized varifocal lens allows the viewing angle to be adjusted remotely, switching from a wide-angle view to a tighter shot depending on the area that needs to be monitored. It features intelligent dual illumination, with infrared illumination up to 50 metres for surveillance in darkness and white light up to 30 metres, providing visible illumination of the scene and enabling colour imaging at night when operating conditions and camera settings allow.

The TVT-276 operates in IP video surveillance systems and features intelligent analytics for line crossing and region intrusion detection, with human and vehicle classification to help reduce irrelevant alarms. It also includes PoE, IP67 protection, a built-in microphone, a MicroSD card slot supporting up to 256GB and ONVIF compatibility, making it particularly suitable for installers looking for a versatile perimeter protection camera. It can be used for new installations as well as extensions or upgrades of compatible IP systems, and combined with NVR recorders for centralized recording and system management.

Overall, this TVT 8MP IP camera combines 4K resolution, motorized optics, IR night vision, white-light illumination and intelligent video analytics in a unit designed for professional indoor and outdoor installations. It is an especially complete solution when the field of view needs to be adapted to the installation while maintaining effective 24/7 video surveillance.

Reference: TVT-276

-
+

Extended information about TVT 8MP Motorized Varifocal 2.8-12mm IP Bullet Camera with 50m IR, 30m White Light, SD and AI

Practical applications of the TVT 8MP Motorized Varifocal 2.8-12mm IP Bullet Camera

Example 1. Perimeter surveillance in industrial buildings:

Installed on the perimeter of a warehouse, factory or logistics facility, the TVT-276 can monitor large outdoor areas with 8MP resolution and a remotely adjustable field of view. The motorized 2.8-12mm lens allows the installer to fine-tune the scene according to the distance and width of the area being protected. Its infrared illumination reaches up to 50 metres, helping maintain surveillance when there is little or no ambient light. Line crossing and region intrusion analytics can then be used to detect relevant activity around restricted areas.

Example 2. Monitoring car parks and controlled access areas:

In car parks, residential complexes or commercial premises, the camera can be configured to supervise entrances, circulation zones and restricted areas. White-light illumination reaches up to 30 metres, providing visible illumination when required and offering an additional deterrent effect against potential intruders. Human and vehicle classification helps distinguish relevant events from conventional motion, reducing unnecessary alarms. The motorized varifocal lens also makes it possible to switch between a wider overview and a more focused view of an access point.

Package contents of the TVT 8MP Motorized Varifocal 2.8-12mm IP Bullet Camera

The manufacturer's technical datasheet supplied does not provide an exact list of the commercial package contents. To avoid adding unverified accessories or components, only the camera itself can be confirmed from the available documentation.

  • 1 × TVT TD-9482S4-C(D/AZ/PE/AW3) 8MP IP bullet camera

Technical specifications TVT 8MP Motorized Varifocal 2.8-12mm IP Bullet Camera

Brand TVT
SKU TVT-276
Manufacturer model TD-9482S4-C(D/AZ/PE/AW3)
Camera type IP bullet network camera
Image sensor 1/2.8" CMOS
Maximum resolution 8MP, 3840 × 2160
Electronic shutter 1/3 s ~ 1/100000 s
Minimum illumination 0.02 lux @ F1.6, AGC ON; 0 lux with illumination on
Lens type Motorized varifocal
Focal length 2.8-12mm
Aperture F1.6
Lens mount Φ14
Horizontal field of view 97.3° ~ 34°
Vertical field of view 52.3° ~ 17.7°
Diagonal field of view 116° ~ 37°
Day/Night ICR
Wide Dynamic Range 120 dB
BLC Yes
HLC Yes
Digital noise reduction Yes
Defog Yes
S/N ratio ≥50 dB
Angle adjustment Pan 0°-360°; Tilt 0°-90°; Rotation 0°-360°
Infrared range 30-50 m
White light range 20-30 m
Supplement light Smart Supplement Light
Main stream compression H.265+ / H.265 / H.264+ / H.264
Sub / third stream compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Supported resolutions 8MP, 6MP, 4MP, 2K, 1080P, 720P, D1, VGA, 640×360, 480×240, CIF
Main stream frame rate 8MP up to 20 fps; lower resolutions up to 25/30 fps depending on system frequency
Video bitrate 64 Kbps ~ 12 Mbps
Bitrate control VBR / CBR
Video streams 3
ROI Yes, independently configurable
Audio 1-channel audio input + built-in microphone
Audio compression G711A/U
Network interface RJ45
Local storage Built-in MicroSD slot, up to 256 GB
Remote storage Network remote storage supported
Remote monitoring Web browser / TVT NVR / NVMS2.X / Mobile APP
Simultaneous users Up to 10 users
ONVIF Yes
P2P Yes
Network protocols UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTPS, HTTP POST, P2P, QoS, HTTP
Motion detection Yes
SMD Yes
Line crossing detection Yes
Region intrusion detection Yes
Intelligent classification Human / motor vehicle / non-motor vehicle
Abandoned / missing object detection Yes
Video exception detection Scene change, video blur and abnormal colour detection
Additional alarms MicroSD full/error, IP address conflict, cable disconnection
Power supply 12 VDC / PoE
PoE standard IEEE 802.3af
Power consumption <12 W
Ingress protection IP67
Operating temperature -30 °C ~ +60 °C
Operating humidity Less than 95%, non-condensing
Storage temperature -30 °C ~ +65 °C
Dimensions 217.8 × 80.5 × 80.3 mm
Net weight Approx. 0.68 kg
Installation Ceiling mounting / wall mounting
Certification CE, FCC
More Information
More Information
Hight 0.100
Length 0.300
Width 0.100
Technology IP
Usar stock disponible No
Product Brand TVT
Camera Type Bullet
Optic Type Motorized Varifocal
Color White
Alimentación 12VDC/PoE
