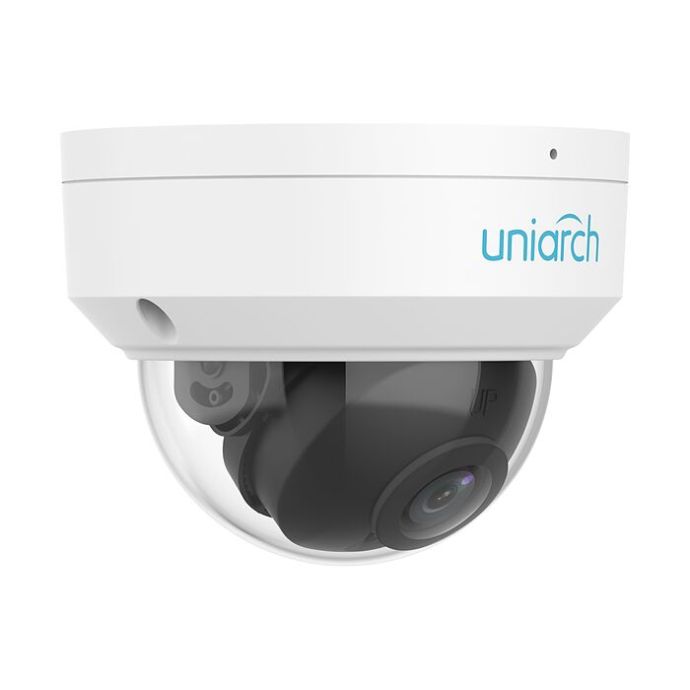

Uniarch 2MP Fixed 2.8mm IR 30m MicroSD AI WiFi IP Dome Camera

SKU
UV-UHO-D1R-M2F3-A
Brands: Uniarch
€40.66
Tax included
% Discount for professionals
Uniarch
Availability: In stock
5 days

Uniarch 2MP Fixed 2.8mm IR 30m MicroSD AI WiFi IP Dome Camera

The Uniarch 2MP Fixed 2.8mm IR 30m MicroSD AI WiFi IP Dome Camera is a compact solution for IP video surveillance in homes, small businesses, entrances, patios and shared areas. Its Full HD 1080p resolution and 2.8 mm fixed lens provide a wide, detailed image, making it suitable for covering open spaces without complicating the installation.

It works in IP video surveillance systems through 2.4 GHz WiFi or a 10/100 RJ45 Ethernet port, with management via APP and Uniarch client. It is not a spare part: it is a camera for new installations, system expansions or IP system upgrades, designed for projects that require a robust WiFi dome camera with Ultra 265/H.265/H.264 compression and local microSD storage up to 512 GB.

Its Smart IR reaches up to 30 metres, allowing the camera to capture images in complete darkness using infrared light that is invisible to the human eye. In addition, Ultra Motion Detection helps filter false alarms caused by rain, moving leaves or light changes, triggering alerts based on human or vehicle silhouettes. It can be integrated into IP and WiFi camera installations or combined with other Uniarch equipment.

With a built-in microphone, IP67 outdoor protection, IK10 vandal resistance and 3-axis adjustment, this Uniarch WiFi IP dome camera is especially useful for installers who need a discreet, resistant and easy-to-position solution for real surveillance points.

Reference: UV-UHO-D1R-M2F3-A

-
+

Extended information about Uniarch 2MP Fixed 2.8mm IR 30m MicroSD AI WiFi IP Dome Camera

Practical applications of the Uniarch 2MP Fixed 2.8mm IR 30m MicroSD AI WiFi IP Dome Camera

Example 1: outdoor access surveillance in a home or residential building.

An installer can use this Uniarch WiFi IP dome camera to cover an entrance, communal patio or outdoor passage area where running a network cable to the camera point is not practical. Its 2.4 GHz WiFi connection simplifies deployment, while the RJ45 port remains available if the installation requires a wired connection. The 2.8 mm lens and 103° horizontal field of view help monitor a wide area from a single capture point.

Example 2: video surveillance expansion in a small retail premises with local recording.

In a shop, stockroom or small professional premises, this camera can be added as an independent control point to reinforce monitoring of entrances, counters or transit areas. The microSD slot, compatible with cards up to 512 GB, allows local video storage, while the built-in microphone provides ambient audio recording. Human and vehicle-based detection helps reduce irrelevant alerts in installations where light changes, rain or environmental movement may otherwise cause false alarms.

Package contents of the Uniarch 2MP Fixed 2.8mm IR 30m MicroSD AI WiFi IP Dome Camera

  • Uniarch Uho-D1R-M2F3-A WiFi IP dome camera

Technical specifications Uniarch 2MP Fixed 2.8mm IR 30m MicroSD AI WiFi IP Dome Camera

Feature Details
Model Uho-D1R-M2F3-A
SKU UV-UHO-D1R-M2F3-A
Product type WiFi IP dome camera
Maximum resolution 2 MP
Video resolution 1920 x 1080 at up to 25 fps; 1280 x 720 at up to 25 fps
Sensor 1/3.0" CMOS
Minimum illumination Colour: 0.01 lux F2.0 AGC ON; 0 lux with IR on
Day/night IR-cut filter with automatic ICR switching
Lens Fixed 2.8 mm
Aperture F2.0
Field of view Horizontal 103.0°; vertical 60.7°; diagonal 108.4°
DORI distance Detection 46.7 m; observation 18.7 m; recognition 9.3 m; identification 4.7 m
Night illumination Smart IR up to 30 m, 850 nm
Video compression Ultra 265, H.265, H.264
Streams Dual stream
WDR DWDR
Image functions 2D/3D DNR, BLC, digital defog, ROI, Smart IR
Detection Ultra Motion Detection based on human body and vehicle detection, tampering alarm and high-decibel detection
Audio Built-in microphone; G.711U/G.711A; 64 Kbps
Two-way audio Not available
Local storage MicroSD up to 512 GB
WiFi connectivity IEEE 802.11b/g/n, 2.4 GHz
WiFi security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Wired network 1 x RJ45 10/100 Base-TX Ethernet
Protocols IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP
Integration API, SDK
Client APP, Uniarch client
Power supply DC 12 V ±25%
Power consumption Max. 2.2 W
Adjustment 3-axis: pan 0° to 352°, tilt 0° to 70°, rotate 0° to 350°
Protection IP67, IK10, 4 kV surge protection
Material Metal + plastic
Dimensions Ø109 x 83 mm
Weight 0.33 kg
Operating temperature -30 °C to 60 °C
Certifications CE-EMC, FCC, CE RED, CE LVD, CE-RoHS, WEEE
More Information
More Information
EAN 6937096363259
Hight 0.150
Length 0.150
Width 0.150
Technology IP
Usar stock disponible No
Product Brand Uniarch
Camera Type Domo
Optic Type Fixed
Color White
Alimentación 12VDC
