Coaxial cable Cu, Cu of inner in coil of 100 meters

SKU
TEL214102B
Brands: Televes
€92.70 Tax included
Televes
Availability: In stock
24/48 Hours

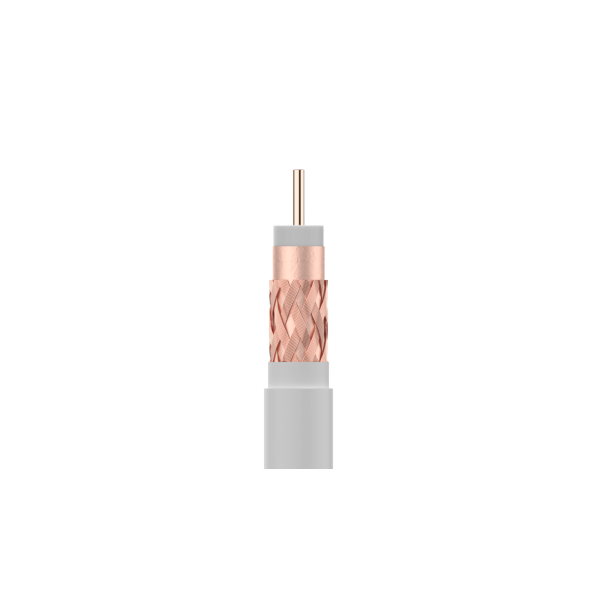

Coil of 100 meters of indoor coaxial cable

Coil of 100 meters of coaxial cable of 6.6mm in white color of Televes brand. This cable is ideal for any indoor installation.

This cable is manufactured with an expanded polyethylene dielectric, copper mesh with a 73% coverage and a PVC cover which makes this cable a very economic cable that presents a surprising quality / price ratio, in addition it has an attenuation of 16,60 dB at 862 MHz.

The coaxial cable 214102 is a cable of very good quality, which can be used in all types of indoor installations.

What technical characteristics does the 214102 coaxial cable have?

Reference  213001 213002  215101  214102 214104 214108
 type  T200 T200  T100 T100
conduct Ø mm  1,2   1,12 1,13
Material    Cu  Cu Cu
Res. Óhmica (Ω/Km)    16  20 20
 Dielectric Ø mm    5,0  4,7 4,8
Material  PEE  PEE PEE
Inside sheet Cobre + Poliester
 net Res. Óhmica (Ω/Km)  12,0
Dimensões (C x S x Ø)  16 x 8 x 0,11
Coverage %  73
Material  Cu
Non-slip sheet Si
 Petro-Gel No
Outdoor cover Ø mm  6,9 6,6
Cor  Cz  Cz Br Br Pr
Material  LSFH PVC
 Application Especial Interior
Minimum bend radius mm  34,5 33,0
 Armor to 1GHz dB  Classe A
 Impedance Ω  75
Loop Resistance (Ω/m)  0,028 0,032 0,032
 Packaging  100 250 100 100 250 100

What is the attenuation of Televes 214102 coaxial cable?

Frequency Attenuation
5 Mhz 1,1
60 Mhz 4,1
90 Mhz 5,00
750 Mhz 15,4
862 Mhz 16,6
950 Mhz 17,5
2150 Mhz 27,5
3000 Mhz 33,00





More Information
EAN8424450103449
Hight0.000
Length0.000
Width0.000
System ICTRG6
Serie100m
EntornoInterior
ColorWhite
Cobertura Exterior CablesPVC
Conductor Interno CablesCopper (Cu)
Material Malla CoaxialCopper (Cu)
Product BrandTeleves
Write Your Own Review
You're reviewing:Coaxial cable Cu, Cu of inner in coil of 100 meters
Your Rating
File Label Size Download
pdf Ficha técnica del cable Coaxial Televes 214102 148.6 KB Download
