Hikvision IP65 IK09 PoE Access Control for Up to 10,000 Users

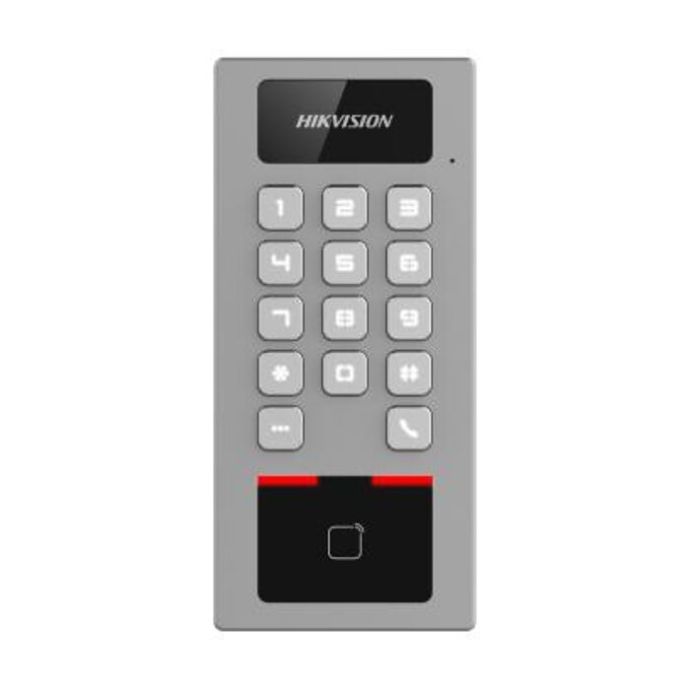

Hikvision DS-K1T502DBWX-E1 Standalone Terminal for One or Two Doors
The Hikvision DS-K1T502DBWX-E1 combines access control and security intercom functions in a single standalone terminal. The device checks each user’s permissions and authorised schedules before operating the door lock directly, eliminating the need for an additional controller for basic operation.
It supports up to 100,000 cards or passwords and stores 300,000 events. Users can authenticate using 13.56 MHz M1/MIFARE and DESFire cards, a PIN code or a Bluetooth mobile credential. This model does not include a camera or QR code reader.
It is designed for new installations and professional upgrades involving one or two doors. It provides two lock control outputs, Ethernet, 2.4 GHz Wi-Fi, RS-485 and Wiegand connectivity. 802.3at PoE power and a 12 VDC/1 A output for a compatible lock simplify wiring and allow the terminal to be combined with a Hikvision PoE+ switch.
Its zinc-alloy housing with IP65 and IK09 protection makes it suitable for exposed outdoor entrances. Two-way SIP audio, calls to indoor stations or Hik-Connect, and remote door release make it a robust solution within professional access control systems.
Reference: DS-K1T502DBWX-E1
