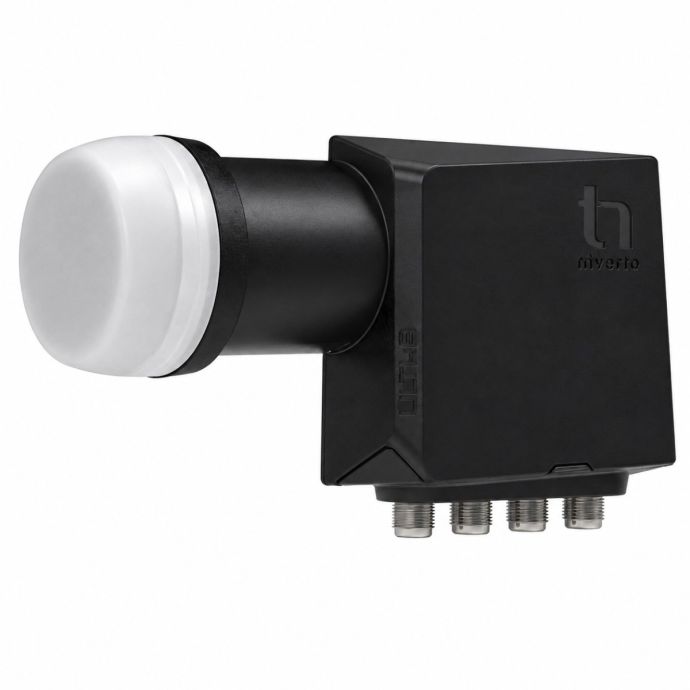

Inverto Universal Quad Ultra 0.2dB LNB

Inverto Universal Quad Ultra 0.2dB LNB

The Inverto Universal Quad Ultra 0.2dB LNB is designed for satellite TV installations where maximum reception quality is required. Its high 60–70dB conversion gain combined with a typical noise figure of just 0.2dB provides excellent performance even in installations where the available satellite signal level is weak.

This Universal Quad LNB receives signals from a single satellite and distributes them independently to up to 4 satellite tuners, thanks to its four F-type outputs. It can be used with four individual satellite receivers or, for example, two Twin Tuner receivers, providing a dedicated line for each tuner. These connections can be completed using suitable RG6 coaxial cable for TV and satellite signal distribution.

The Ultra range is specifically designed for challenging reception conditions, including installations located near the edge of a satellite footprint, small satellite dishes or long coaxial cable runs. It features high 4G immunity, excellent cross-polarisation isolation and very low spurious levels. Its superior phase-noise performance and DVB-S2X compatibility also make it ready for Ultra HD 4K and 8K satellite TV transmissions. Its four female F-type outputs can be connected using F connectors for satellite and TV installations selected according to the diameter of the coaxial cable used.

It is particularly suitable for professional installers who need greater reception margin and four independent satellite lines without using a collective distribution system. The LNB can be used for new installations or to replace and upgrade an existing compatible LNB; it is not a replacement part designed for one specific satellite dish model.

Reference: INV5930
