Copper + Fiber Certification Kit TESTPRO-K51E

SKU
GTL22GTTESTPROK51E
Brands: GTlan
€18,844.54
Tax included
Availability: On request
1 to 7 days

GTLAN TESTPRO-K51E Fiber Copper Certification Kit by Gtlan

GTLAN TESTPRO-K51E is a professional certification kit that combines in a single piece of equipment everything necessary to validate installations of copper wiring (Cat5e–Cat8) and multimode and singlemode optical fiber . It is a solution designed for installers looking for precision, speed and easy use, even on large projects or with tight deadlines. With this kit you will be able to certify complex links reliably and without complications.

One of its greatest advantages is that it incorporates advanced functions such as testing PoE 802.3af/at/bt, validation Multigigabit up to 10GBASE-T, network self-diagnosis, port detection with switch detail, VLAN analysis and troubleshooting tools. These functions make it much more than a certifier: it is a true field assistant to solve connectivity problems.

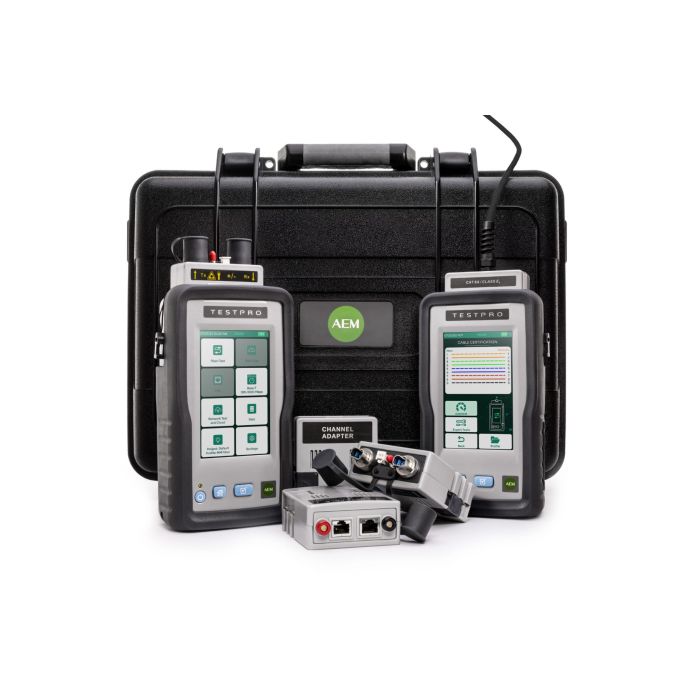

The kit includes: TestPro CV100 unit , the copper certification modules , the fiber optic certification modules, the PoE and Multigigabit modules, as well as accessories, hoses and carrying case . All of this makes it easier for the installer to arrive on site with a team fully prepared to certify, diagnose and deliver professional reports with TestDataPro. The TestPro unit has an impact-resistant touch screen, dense rubber casing that protects the equipment against drops, hot keys and a very intuitive interface.

In short, the TESTPRO-K51E is ideal for technicians looking for a complete fiber copper kit with advanced network functions, intuitive use thanks to its touch screen, and the versatility necessary to adapt to modern high-speed installations.

Reference: GTL22GTTESTPROK51E

-
+

Technical Specifications of the GTLAN TESTPRO-K51E Fiber Copper Certification Kit from Gtlan

 Practical applications of the GTLAN TESTPRO-K51E Fiber Copper Certification Kit

1. Complete certification in structured cabling deployments

In projects where mixed networks with copper and fiber are installed, the TESTPRO-K51E simplifies the work by allowing both media to be certified from a single device. Its interchangeable adapters allow you to switch from Cat6A/Cat8 tests to multimode and singlemode optical measurements without restarting or changing settings. Fast measurements (only 6 seconds on Cat6A according to the official PDF) speed up execution and reduce delivery times, something especially useful in data centers and corporate projects.

2. Troubleshooting advanced networks with PoE and Multigigabit

In installations with Wi-Fi 6/6E access points, IP cameras, PoE lighting or Multigigabit electronics, this kit stands out for its ability to validate real PoE up to 90W and verify 1/2.5/5/10G links. TestPro CV100's diagnostic tools can detect power interruptions, port problems, VLAN conflicts or performance losses in seconds. It is ideal in scenarios where the installer needs to certify and at the same time diagnose in the same visit.

Specification Detail
Kit model TESTPRO-K51E
main unit TestPro CV100 with 5"touch screen 800×480 px
Copper certification Cat5e to Cat8 / Class I and II, full tests of IL, RL, NEXT, ACR-F, TCL, imbalance, length and wire map
Cat6A test time 6 seconds (Automatic)
Fiber certification Multimode and singlemode, dual wavelength (850/1300 MM, 1310/1550 SM), bidirectional loss, length and integrated VFL
MM fiber range Up to 2 km (10 dB max)
SM fiber range Up to 20 km (20 dB max)
OTDR Compatible with MM and SM OTDR adapters (Level 2)
PoE 802.3 af/at/bt and UPoE tests, charging up to 90W, peer identification and continuous monitoring
Multigigabit 2.5G/5G/10GBASE-T validation with SNR analysis
Connectivity Wired and wireless analysis, switch detail (port/VLAN), ping, traceroute, network discovery
Internal memory 10,000 storable tests
Reporting software TestDataPro (PC and Cloud), Copper and Fiber .pdf reports
Battery Li-ion 3.7V / 13200 mAh (hasta 9 h)
Dimensions 200 × 105 × 50 mm
Includes the kit TestPro CV100, Copper Certification Modules, Fiber Certification Modules, PoE and Multigig Modules, Adapters, Patch Cords, Case
Warranty 2 years extendable to 5 with registration
