Manual FO OTDR 850/1310/1550nm 21/30/28dB GTLAN

SKU
22GTOTDR
Brands: GTlan
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€4,514.51 Tax included
GTlan

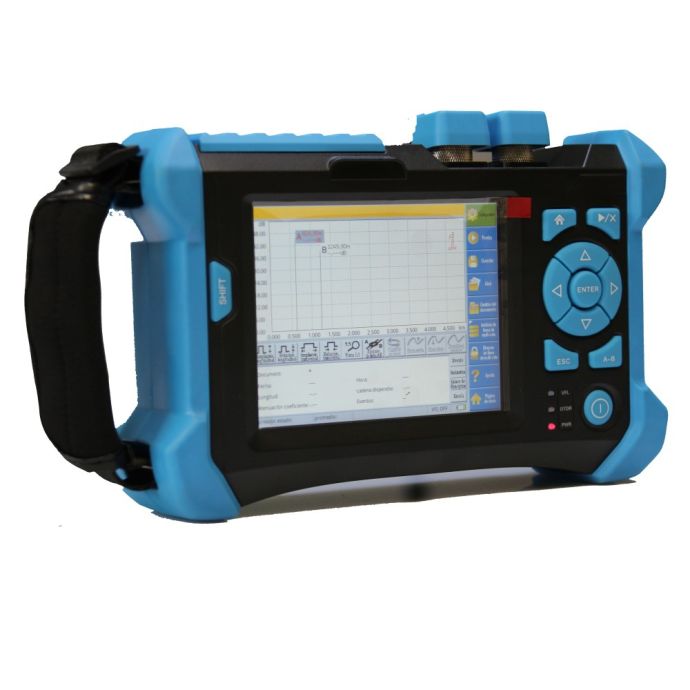

Manual Fiber Optic OTDR 850/1310/1550nm GTLAN 22GTOTDR

Optical reflectometer (OTDR) for installation and maintenance of fiber optic networks. Compatible with 850/1310/1550nm wavelengths, 21/30/28dB dynamic range. For APC or UPC polish types. Storage capacity up to 800 records.

This OTDR allows you to quickly locate any failure in the infrastructure. It has a lithium battery with up to 8 hours of continuous operation, to work with the equipment without worrying about charging it. OTDR equipment with quick start-up in just 5 seconds.

Portable and lightweight OTDR with carrying case.

GTLAN Manual OTDR 850/1310/1550nm 21/30/28dB Optical Reflectometer

What are the main features of the OTDR GTLAN 22GTOTDR?

  • Optical Reflectometer (OTDR)
  • Fast, portable and lightweight format, with carrying case
  • Storage capacity up to 800 records
  • Quick start (5 seconds)
  • APC or UPC polishing types
  • Possibility of integrated VFL (visual fault locator) (650nm)

What technical specifications does the OTDR GTLAN 22GTOTDR have?

Wavelength 850/1310/1550 nm
Dynamic range 21/30/28 dB
Pulse width options 5,10,40,80,160,320,640,1280,2560,5120,10240,20480,ns
Test time 5sec, 10sec, 15sec, 30sec, 1min, 2min y 3 min. selectable
Shows 32 k
Distance measurement precision ± (1m + 5 x 0.001 x distance + sample interval)
Range 0.3 a 180 km
Blind zone ≤1.8m
Blind zone attenuation ≤10 m
Attenuation measurement accuracy ±0.05dB/dB
Loss threshold 0.05 dB
Loss resolution ratio 0.01 dB
Sampling resolution 0.125 to 8 m
Operating temperature -10ºc to 50ºc
Standstill temperature -40ºC to 70ºC
Humidity 0% a 95% (no condensation)
Connectors FC/SC
Power supply Lithium battery with autonomy of up to 8 hours in continuous operation
Storage Up to 800 records SD CARD (4G)
Screen 5.6' TFT - LCD Tactile
Dimmensions (mm) 220x110x70
Weight (kg) 1.5
Warranty 1 year
Normative EN 55011, EN 61000-6-1, RoHS 2011/65/UE y CE

More Information
EAN8435481001567
ColorBlue
Product BrandGTlan
SystemFiber Optic Meter
SERIEOTDR
