Data cable STP CAT7 Dca Cu LSFH White Coil 500m from Televes

SKU
TEL219202B
Brands: Televes
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
13% Discount for professionals
€788.98 Tax included
Televes
-
+

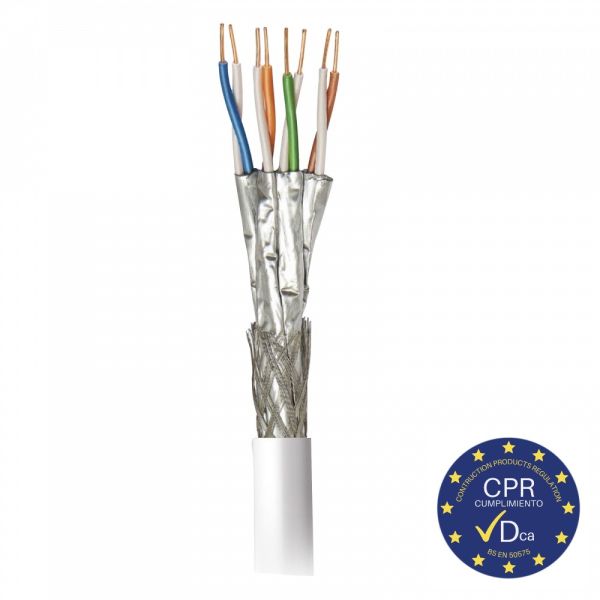

Category 7A Dca LSFH STP Data Cable in coil 500m 219202 from Televes

Data cable with 4 pairs of copper wires, individual shielding in pairs and at the global level (it has shielding for each pair of cables and also in the set of 4 pairs). The cable has a category 7A and euroclass Dca.

The cable achieves a bandwidth of up to 1500Mhz with an impedance of 100 ohms. Its maximum resistance per conductor is less than 93.8 ohm/km.

This type of cable is used for network installations, being the evolution of category 7 and being compatible with lower categories.

The cable is presented in a 500-meter coil and in white RAL 9010.

Technical Specifications of the STP Data Cable of Category 7A Dca LSFH in coil 500m 219202 of Televes



Type   S/FTP
Euroclass   Dca
Euroclass: Smoke Production   s1a
Euroclass: Flaming droplets   d2
Euroclass: Acidity   a1
Categorie   Cat 7A
Transmission bandwidth   1500MHz
Transfer rate   10Gbps
Conductor Diameter mm 0.58
Conductor Material   Solid copper
Conductor type AWG   23
Conductor isolation Diameter mm 1.43
Conductor isolation Material   Polyethylene
Crucifix filter   No
Shielding foil of pairs   Aluminium + Polyester
Outer shielding braid   Tinned copper (CuSn)
Outer sheath Diameter mm 7.7
Outer sheath Material   LSFH
Outer sheath Thickness mm 0.7
Rip cord   No
Spark Test Vac 3000
Nominal impedance Ω 100
Nominal speed % 79
Operating temperature °C -25 ... 70
Frequencies
1 MHz 4 MHz 10 MHz 62.5 MHz 100 MHz 155 MHz 200 MHz 300 MHz 400 MHz 600 MHz 900 MHz 1000 MHz
NEXT dB/100m
78 78 78 78 75.4 72.5 70.9 68.2 66.4 63.7 -- 60.4
PS-NEXT dB/100m
75 75 75 75 72.4 69.5 67.9 65.2 63.4 60.7 -- 57.4
ELFEXT dB/100m
78 78 78 69.4 65.3 61.5 59.3 55.8 53.3 49.7 -- 45.3
PS-ELFEXT dB/100m
75 75 75 66.4 62.3 58.5 56.3 52.8 50.3 46.7 42.3 --
Return losses dB
-- 23 25 21.5 20.1 18.8 18 17.3 17.3 17.3 -- 15.1
More Information
More Information
EAN 8424450267530
System CAT7
Serie 500m
Entorno Interior
Color White
Conductor Interno Cables Copper (Cu)
Product Brand Televes
Reviews
Write Your Own Review
You're reviewing:Data cable STP CAT7 Dca Cu LSFH White Coil 500m from Televes
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Cable de datos STP CAT7 Dca Cu LSFH Blanco Bobina 500m de Televes 1.2 MB Download
