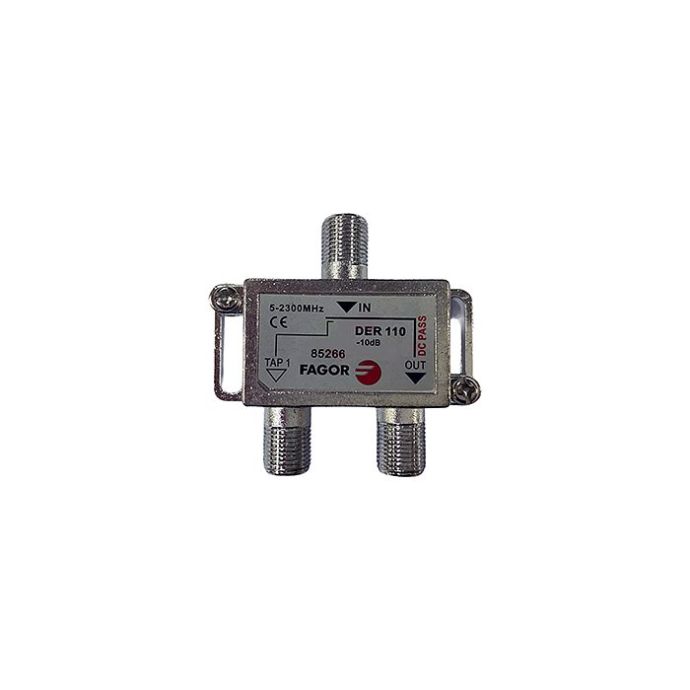

Fagor 1 Output IF SAT Tap-Off with F Connector 10dB

Fagor DER 110 1st IF SAT Tap-Off with 10 dB Derivation

The Fagor 1 Output IF SAT Tap-Off with F Connector 10dB is a passive solution for extracting one user TV outlet without interrupting the continuity of the main distribution line. It is a practical option for ICT installations where the signal needs to be tapped towards a home or user point while keeping network attenuation under control.

This Fagor DER 110 tap-off operates across the 5-2300 MHz band, making it suitable for DTT, VHF/UHF and satellite IF signals. It includes a 10 dB tap output and a through output, making cascade installations easier within signal tap-off systems for community or individual TV distribution networks.

It is designed for new installations and replacements in existing coaxial networks when a single derivation point with F connector is required. Its DC pass capability in tap-off units allows power to be supplied to installation elements such as mast amplifiers or satellite LNBs, provided the system is configured for it and the technical conditions of the network are respected.

Overall, the FAG85266 is a compact, shielded component suitable for installers who need to feed one user TV outlet without excessive loss on the main line. It combines wideband operation, F connection and passive design for DTT/SAT distribution and accessory projects.

Reference: FAG85266
