Digital Multimeter Electro DH 60.101

SKU

ED60.101

Brands: Electro DH

Availability: In stock

Delivery: 24/48 Hours

€10.70 Tax included

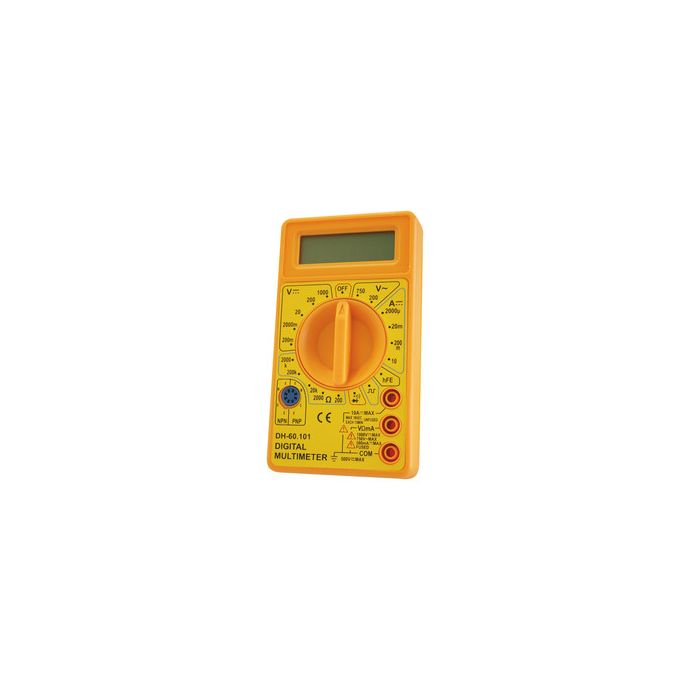

Electro DH 60.101 Multimeter

This multimeter or multimeter is indicated to make all kinds of measurements: active or passive electrical quantities, currents, resistances, impedances, etc. Measurements can be made in both direct and alternating current. It also includes acoustic indication of continuity.

Simple and easy-to-use design, you just have to connect the tips in each terminal of the resistance you want to measure, adjust the magnitude and that's it! Test leads are included.

It has a digital LCD screen with up to 3 digits. With wheel to choose the type of measurement to be carried out and at a very economical price, more designed for more domestic uses.

Details

Economical Digital Multimeter with AC/DC measurement, resistance and continuity.

Electro HD 60.101 multimeter technical specifications

specifications
transistor test		yes
Dimensions		127×70×24 mm
DC voltage measurement	reading scale	200 mV, 2 V, 20 V, 200 V, 600 V
DC voltage measurement	precision	±0.5%
AC voltage measurement	reading scale	200 V, 600 V
AC voltage measurement	precision	±1.2%
DC intensity measurement	reading scale	2000 μA, 20 mA, 200 mA, 10 A
	precision	±1%
	overload protection	fuse 200 mA
Resistance measurement	reading scale	200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ
Resistance measurement	precision	±0.8%
Type		digital multimeter
Presentation		box
Acoustic indication of continuity		sí
Screen	type	LCD
Screen	nº dígits	3½
diode test		yes
