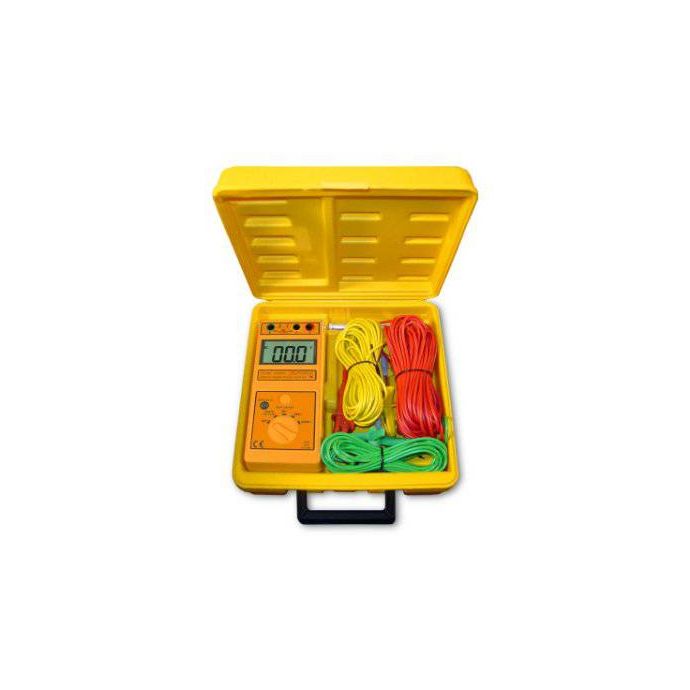

Digital ground resistance meter with spades PE-335 from Promax
Digital earth resistance meter with spades.
The Promax PE-335 performs ground resistance measurements by the three-electrode method but also allows measurement by the two-electrode method.
The measuring current of 2 mA allows the earth resistance to be checked, avoiding the activation of the low-circuit limiter.
The PE-335 Digital Ground Resistance Meter incorporates functions such as data storage, timer for test functions (3 to 5 minutes), measurements of ground voltages and low battery indicator on its large LCD screen.
Promax PE-335 meter for the measurement of earth resistance with spades by 3 or 2 electrodes with LCD screen and many functions included.
What technical specifications does the Promax PE-335 meter have?
- MEASUREMENT SYSTEM: Injection constant current 820 Hz, 2 mA
- STRESS & competitively priced EARTH: 0 ~ 199.9 V AC, 50/60 Hz
- M X. INPUT VOLTAGE: 200 V RMS
- SCALE AND RESOLUTION N:
- 0 ~ 19.99 Ω (0.01 Ω)
- 0 ~ 199.9 Ω (0.1 Ω)
- 0 ~ 1999 Ω (1 Ω)
- ACCESSORIES: Set of test leads, 2 auxiliary earth spikes, instruction manual, carrying case
|Manual de instrucciones del medidor P-335 de Promax (Español / English)||489 KB||Download|
