Digital multimeter with DT850L memory

SKU
NIMOMUL001
Brands: TDTprofesional
Availability: On request
1 to 7 days
€11.53 Tax included
-
+

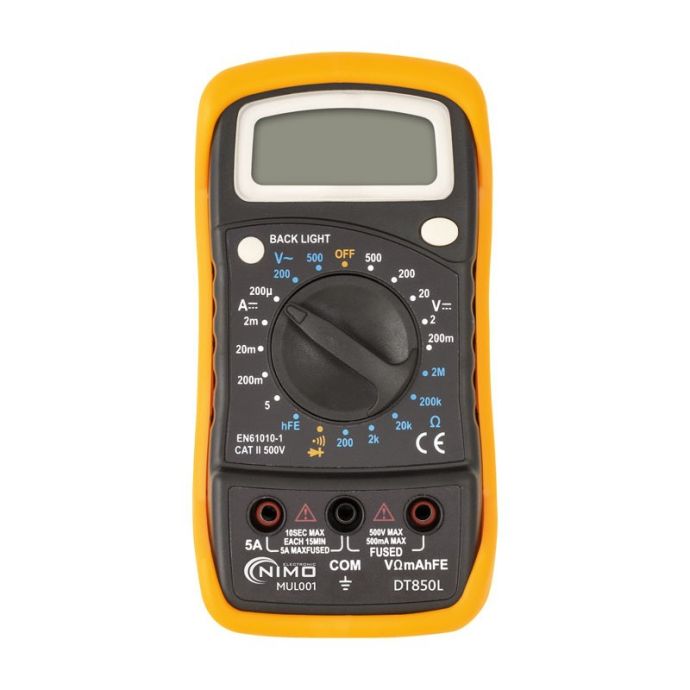

Digital multimeter with DT850L memory

Economical digital multimeter to measure DC Current, AC/DC Voltage, Resistance, Transistors, Diodes test and audible Continuity test.

Portable device that works with batteries, with a 3½ digit display. The different measurements are selected using a rotary selector with all functions and working ranges. The work option of backlighting the display is by means of the “BLACK LIGHT” button.

NIMO MUL001 DT850L portable digital multimeter that runs on batteries.

What are the main functions of the DT850L Digital Multimeter?

  • Data memory
  • DC Voltage Measurements
  • DC Current Measurements
  • AC Voltage Measurements
  • Resistance Measurements
  • Diode Test
  • Transistor Measurements
  • Audible Continuity Test

What technical specifications does the DT850L Digital Multimeter have?

  • Maximum voltage between terminals and grounding CAT II 500V.
  • Fuse: F 500mA / 500V - F5A / 500V (fast).
  • Power supply: 9V battery, 6F22.
  • Display: LCD, 1999 counter of 2-3 seconds.
  • Integrated double ramp A / D measurement method.
  • Overload indicator: “1” on the display.
  • Polarity indicator "-" for negative polarity.
  • Working temperature: 0ºC to 40ºC.
  • Storage temperature: -10ºC to 50ºC.
  • Low battery indicator: battery image on the display.
  • Size: 138mm x 69mm x 31mm.
  • Weight: 170 gr approx.

What does the DT850L Digital Multimeter include?

  • User manual
  • Test tip set
  • A rubber protector
  • 9V battery, 6F22
More Information
EAN 8436300685302
Color Yellow
Product Brand TDTprofesional
System Multimeters
SERIE Digital
