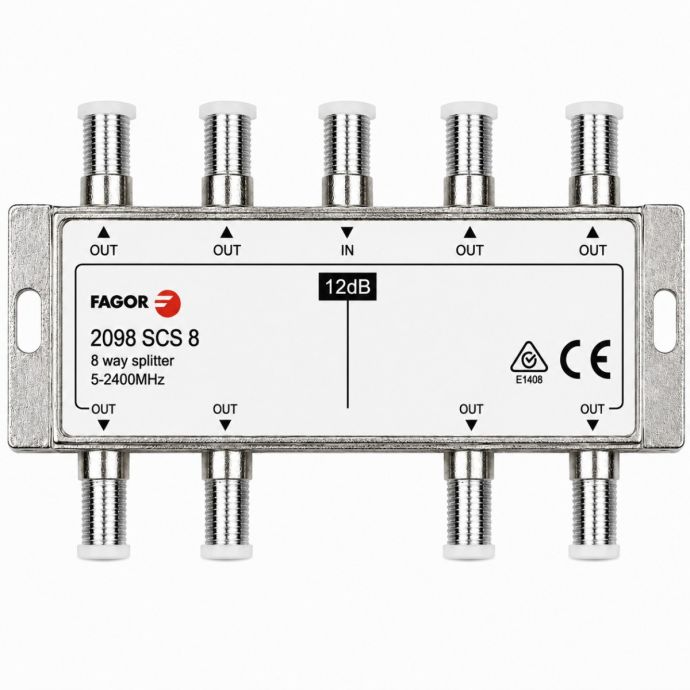

main product photo

Fagor 8-Way DTT and SAT Splitter with F Connector 12dB

SKU
FAG2098
Brands: Fagor
€8.93
Tax included
% Discount for professionals
Fagor
Availability: On request
1 to 7 days

Fagor SCS 8 Splitter for Terrestrial TV and Satellite Networks

The Fagor 2098 SCS 8 splitter is designed to divide a single coaxial signal and distribute it evenly across 8 independent lines. It is particularly suitable for large homes, apartment buildings and professional installations with multiple TV outlets where stable and balanced signal distribution is required.

With its wide 5 to 2400 MHz frequency range, it can operate in MATV networks with DTT (COFDM) and DAB signals, as well as SAT-IF DVB-S/S2 (QPSK and 8PSK) satellite distribution systems. This makes it a practical solution for installations combining terrestrial and satellite TV signals. You can also browse our range of DTT and satellite splitters and distribution equipment to complete your coaxial network.

All 8 outputs support DC/AC power pass towards the input up to 24 V/500 mA, directionally coupled by diodes. This feature enables power to be supplied to active equipment located upstream in compatible satellite installations. In addition, its 110 dB shielding provides a high level of protection against interference.

The Fagor SCS 8 is particularly suitable for professional installers who need to distribute TDT/DTT and satellite signals across eight branches using a compact, robust splitter with F female connectors. It is suitable for new installations as well as extensions or modifications to existing coaxial networks; it is not a dedicated replacement part. For an alternative with similar functionality, see this 8-way DTT and satellite splitter available from TDTProfesional.

Reference: FAG2098

-
+

Extended Information about Fagor 8-Way DTT and SAT Splitter with F Connector

Practical Applications of the Fagor 8-Way DTT and SAT Splitter

Example 1. Signal distribution in a large residential property:

In a large detached house with several television points, the Fagor SCS 8 can divide one incoming coaxial feed into eight separate branches. Its 5–2400 MHz bandwidth allows the same distribution network to carry terrestrial DTT and satellite IF signals. This makes it especially useful when several rooms require access to television services from a central distribution point. Its eight-output configuration simplifies installation and helps maintain a structured coaxial network.

Example 2. Collective installation requiring power pass:

In a MATV or SAT-IF distribution system, the Fagor 2098 can be installed where eight independent coaxial branches need to be supplied from a common input. Because all outputs support power pass towards the input up to 24 V / 500 mA, compatible downstream equipment can supply power to active components located upstream. The diode-coupled design provides controlled current routing across the distribution network. This makes the splitter particularly practical in professional terrestrial and satellite installations.

Package Contents of the Fagor SCS 8 8-Way Splitter

  • 1 x Fagor SCS 8 8-way coaxial splitter, manufacturer reference 2098.

Technical specifications Fagor SCS 8 8-Way Splitter

Specification Value
Brand Fagor
Model SCS 8
Manufacturer Reference 2098
TDTProfesional SKU FAG2098
Product Type 8-way coaxial splitter
Number of Outputs 8
Frequency Range 5–2400 MHz
Applications SAT-IF and MATV distribution networks
Satellite Systems DVB-S/S2 (QPSK, 8PSK)
Terrestrial Signals DTT (COFDM) and DAB
Insertion Loss 5–40 MHz ≤ 12 dB
Insertion Loss 40–1000 MHz ≤ 13 dB
Insertion Loss 1000–1750 MHz ≤ 15.5 dB
Insertion Loss 1750–2150 MHz ≤ 17 dB
Insertion Loss 2150–2400 MHz ≤ 18.5 dB
Return Loss 5–40 MHz ≥ 7.9 dB
Return Loss 40–1000 MHz ≥ 9 dB
Return Loss 1000–1750 MHz ≥ 10 dB
Return Loss 1750–2150 MHz ≥ 10 dB
Return Loss 2150–2400 MHz ≥ 10 dB
Output-to-Output Isolation 5–40 MHz ≥ 20 dB
Output-to-Output Isolation 40–1000 MHz ≥ 21 dB
Output-to-Output Isolation 1000–1750 MHz ≥ 20 dB
Output-to-Output Isolation 1750–2150 MHz ≥ 20 dB
Output-to-Output Isolation 2150–2400 MHz ≥ 20 dB
Power Pass From all RF outputs towards the input
Maximum Power Pass 24 V / 500 mA
Power Coupling Directionally coupled through diodes
Shielding 110 dB
Return Loss Class Class 3
Connectors F female
Housing Material Zinc alloy with tin coating
Rear Protection Soldered rear plate
Operating Temperature -30 to +60 °C
Dimensions (W x H x D) 118 x 48 x 16 mm
Net Weight 88 g



More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Distributor
Entorno Interior
TV-SAT Distribution Connection F
Outputs 8
Insertion Loss (dB) 12
Current bypass Yes
Usar stock disponible No
Product Brand Fagor
