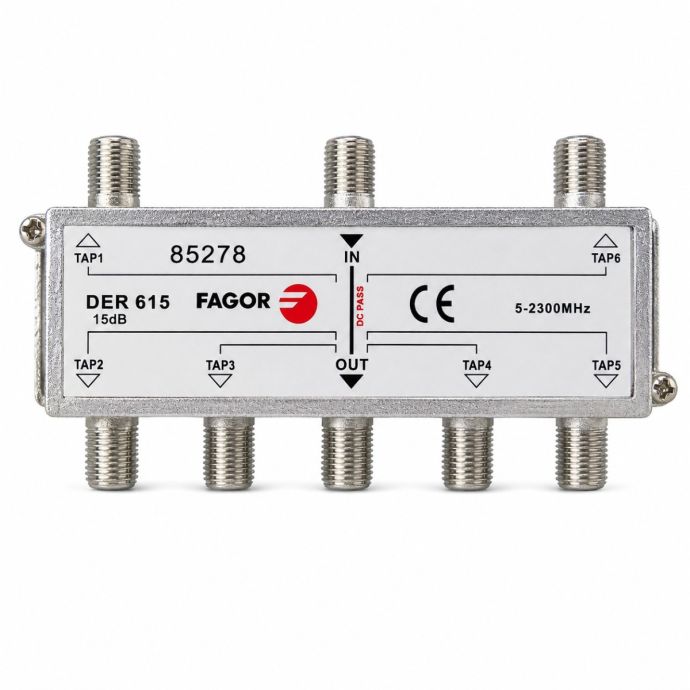

Fagor 6-Output Satellite IF Tap with F Connector 15dB

SKU
FAG85278
Brands: Fagor
€8.13
Tax included
% Discount for professionals
Fagor
Availability: On request
1 to 7 days

Fagor DER 615 6-Output Tap for DTT and Satellite IF Distribution

The Fagor DER 615 is designed to tap and distribute the signal from a main coaxial trunk line to 6 homes, hotel rooms or user outlets, while maintaining the continuity of the main line. It is particularly suitable for residential buildings, hotels and other collective installations with six users per floor.

This 6-output tap operates across the 5 to 2300 MHz frequency range, making it suitable for both terrestrial television and satellite intermediate frequency (Satellite IF) signals. Its six tap outputs provide 15 dB tap attenuation, allowing the signal to be distributed to users while the main trunk continues towards the following floors.

Unlike a conventional splitter, the DER 615 features a trunk input and through output together with six tap outputs. This configuration makes it particularly suitable for installers designing DTT and satellite distribution networks in ICT installations with six homes or rooms per floor. It can be used for both new installations and the replacement of compatible taps, and combined with other TV signal taps when configuring the building's coaxial distribution network.

Its fully shielded construction and F-type connections provide a professional solution for collective TV systems. The Fagor DER 615 is especially useful when six users on the same floor need to be served while maintaining trunk-line continuity, and the installation can be completed with 75 Ohm F-type termination loads when required by the network configuration.

Reference: FAG85278

-
+

Extended information about Fagor 6-Output Satellite IF Tap with F Connector 15dB

Practical applications of the Fagor 6-Output Satellite IF Tap with F Connector 15dB

Example 1. ICT distribution for six apartments per floor:

In a residential building with six apartments on each floor, the Fagor DER 615 can be installed on the main coaxial trunk to provide one tap output for each dwelling. Each branch is supplied with a nominal attenuation of 15 dB, while the through output keeps the main distribution line active for the floors located further along the network.

This arrangement is especially useful for professional installers designing structured ICT distribution systems, because the six local users can be served without terminating the trunk line at that floor. The 5–2300 MHz bandwidth also allows the same distribution infrastructure to carry both terrestrial TV and Satellite IF signals.

Example 2. TV distribution in a hotel with six rooms per floor:

In a hotel with six rooms on each floor, the DER 615 can provide one coaxial branch for every room while preserving the continuity of the main riser. This makes it possible to organise the distribution floor by floor without replacing the trunk architecture with a simple six-way splitter.

Its 15 dB tap attenuation helps establish a controlled signal level at each local branch, while the through path keeps the remaining signal available for subsequent sections of the installation. Final level planning should always be based on the complete network calculation and the losses of the remaining components.

Package contents of the Fagor DER 615

  • 1 × Fagor DER 615 tap, manufacturer reference 85278.

Technical specifications Fagor DER 615

Manufacturer Fagor
Manufacturer reference 85278
SKU FAG85278
Model DER 615
Product type Coaxial tap
Number of tap outputs 6
Covered frequency band 5–2300 MHz
Tap attenuation, 5–2300 MHz 15 dB
Through attenuation, 5–47 MHz 3.5 dB
Through attenuation, 47–862 MHz 4 dB
Through attenuation, 950–2150 MHz 5 dB
Through attenuation, 2150–2300 MHz 5.5 dB
Directivity attenuation, 5–47 MHz 25 dB
Directivity attenuation, 47–862 MHz 22 dB
Directivity attenuation, 950–2150 MHz 22 dB
Directivity attenuation, 2150–2300 MHz 21 dB
Isolation between outputs, 5–47 MHz 22 dB
Isolation between outputs, 47–862 MHz 22 dB
Isolation between outputs, 950–2150 MHz 22 dB
Isolation between outputs, 2150–2300 MHz 16 dB
Return loss, 5–862 MHz 12 dB
Return loss, 950–2150 MHz 10 dB
Minimum shielding factor, 5–862 MHz 65 dB
Minimum shielding factor, 950–2150 MHz 55 dB
DC current pass Through all outputs
Connector type F
Construction Fully shielded
Recommended application ICT installations
Package dimensions, 10 units 205 × 125 × 67 mm
Package weight, 10 units 1.10 kg
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Outputs 6
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 15
Usar stock disponible No
Product Brand Fagor
