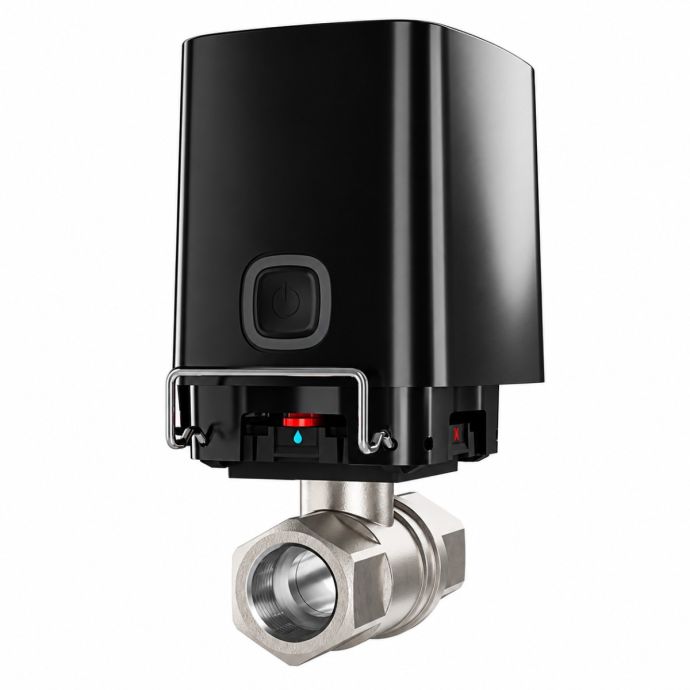

Ajax Water Shut-Off Valve 1" (DN25) in Black

Extended information about Ajax Water Shut-Off Valve 1" (DN25) in Black

Practical applications of Ajax Water Shut-Off Valve 1" (DN25) in Black

Example 1. Protecting an industrial facility against failures in the fire protection system water tank:

In an industrial facility already equipped with an Ajax alarm system, recurring failures in the cistern controlling the filling of the fire protection system's water tank caused significant water leaks over weekends. As the premises remained closed, the problem often went unnoticed until Monday, by which time water had already reached the warehouse and office areas. Installing an Ajax flood detector together with WaterStop allows the system to detect the presence of water and automatically shut off the supply whenever another failure occurs. This prevents large amounts of water from being wasted, reduces cleaning costs and, importantly, helps protect stock, furniture and other materials stored at floor level from potential flood damage.

Example 2. Preventive water shut-off when leaving the property:

In a second home or property that remains unoccupied for certain periods, the installer can configure WaterStop to close the water supply automatically when the Ajax system is armed. This allows the Ajax automatic water shut-off valve to become part of the security routine without requiring the user to manually close the main water valve whenever the property is left unattended.

Package contents of Ajax WaterStop Jeweller 1" (DN25)

• 1 x Ajax WaterStop Jeweller electric actuator
• 1 x Bonomi / RuB DN25 (1") shut-off valve
• 4 x pre-installed CR123A batteries
• 2 x mounting locks for securing the electric actuator
• 1 x quick start guide

Technical specifications Ajax Water Shut-Off Valve 1" (DN25) in Black
