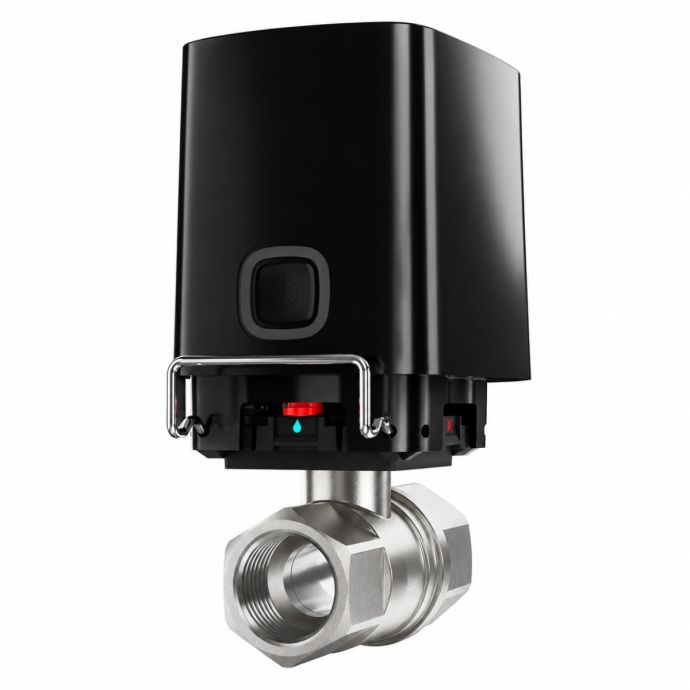

Ajax 1/2" (DN15) Water Shut-Off Valve in Black

SKU
AJ-WATERSTOP-1/2-B
Brands: AJAX
€221.59
Tax included
Availability: In stock
5 days

Ajax WaterStop Jeweller DN15 1/2" Black

The Ajax WaterStop 1/2" smart shut-off valve provides automated and remote control of the water supply in homes and commercial premises. When a leak is detected, WaterStop can automatically shut off the water through a configured Ajax scenario, helping to prevent serious damage caused by leaks and flooding.

AJ-WATERSTOP-1/2-B combines an electric actuator with a RuB DN15 (1/2") shut-off valve and communicates with the Ajax system via the Jeweller wireless protocol. It can work alongside an Ajax flood detector, such as LeaksProtect, to automatically stop the water supply when flooding is detected. Under normal conditions, the valve closes 7 seconds after receiving the command.

Its straightforward installation makes Ajax WaterStop particularly suitable for installers looking to add automated flood protection without installing communication cables. The device is added to the system through the Ajax app by simply scanning its QR code. In addition to alarm-triggered operation, water shut-off can be automated according to a schedule or when arming/disarming the security system. Manual control is also available. An Ajax hub is required for operation within the Ajax system.

Designed for new installations and extensions of existing Ajax systems, rather than as a replacement part, this black WaterStop combines automatic, remote and manual water control in one device. Its pre-installed batteries provide up to 3 years of operation according to Ajax, while external 9–12 V DC, 2 A power can also be used. A practical solution for homes, shops and offices where fast action against water leaks is essential.

Reference: AJ-WATERSTOP-1/2-B

-
+

Extended information about Ajax WaterStop 1/2" (DN15) Black Water Shut-Off Valve

Practical applications of the Ajax WaterStop 1/2" (DN15) Black Water Shut-Off Valve

Example 1. Automatic water shut-off after a leak alarm:

In a home equipped with Ajax LeaksProtect, a flood alarm can trigger an automation scenario that orders the Ajax WaterStop Jeweller DN15 to close the water supply automatically. Under normal operating conditions, Ajax specifies that the valve closes 7 seconds after receiving the command. This allows the security system to react to a detected leak even when nobody is on site, helping to reduce the risk of serious water damage.

Example 2. Automated water management in shops and offices:

In commercial premises, offices or other locations that remain unattended outside business hours, the installer can configure WaterStop to close the water supply when the Ajax system is armed. The valve can also be operated according to a schedule or other compatible Ajax scenarios. This makes it possible to integrate water protection into the overall security automation of the premises without relying exclusively on manual intervention.

Package contents of the Ajax WaterStop Jeweller DN15 1/2" Black

  • Ajax WaterStop Jeweller electric actuator in black.
  • RuB DN15 (1/2") shut-off valve.
  • Pre-installed batteries.
  • Mounting and locking elements supplied with the assembly.

Technical specifications of the Ajax WaterStop Jeweller DN15 1/2" Black

Brand Ajax
Model WaterStop Jeweller
SKU AJ-WATERSTOP-1/2-B
Product type Remote-controlled water shut-off valve with electric actuator
Main application Automated anti-flooding protection within the Ajax system
Valve type RuB shut-off valve
Nominal diameter DN15
Connection size 1/2"
Colour Black
Wireless protocol Jeweller
Communication Two-way wireless communication
Radio communication range Up to 1,100 m in open space without obstacles
Control methods Ajax apps, automation scenarios, actuator button and manual valve lever
System pairing Via QR code
Ajax hub required Yes
Valve closing time 7 seconds after receiving the command under normal conditions
Maximum actuator torque 8.5 N·m
Automation scenarios Flood alarm, schedule, arming/disarming and other compatible Ajax scenarios
Manual operation Yes
Valve status in Ajax apps Yes
Main power supply Pre-installed batteries
Battery life Up to 3 years
External power supply 9–12 V DC, 2 A
Ingress protection IP66
Anti-sabotage protection Yes
Mounting locks Yes
Valve compatibility Compatible with shut-off valves manufactured according to ISO 5211
Installation type Suitable for new installations and extensions of existing Ajax systems



More Information
EAN 4823114030994
Hight 0.000
Length 0.000
Width 0.000
Color Black
