Elegance Telephone Simplebus 2 System Style Series by Comelit

SKU

COM2628

Brands: Comelit

Availability: On request

Delivery: 1 to 7 days

€117.22 Tax included

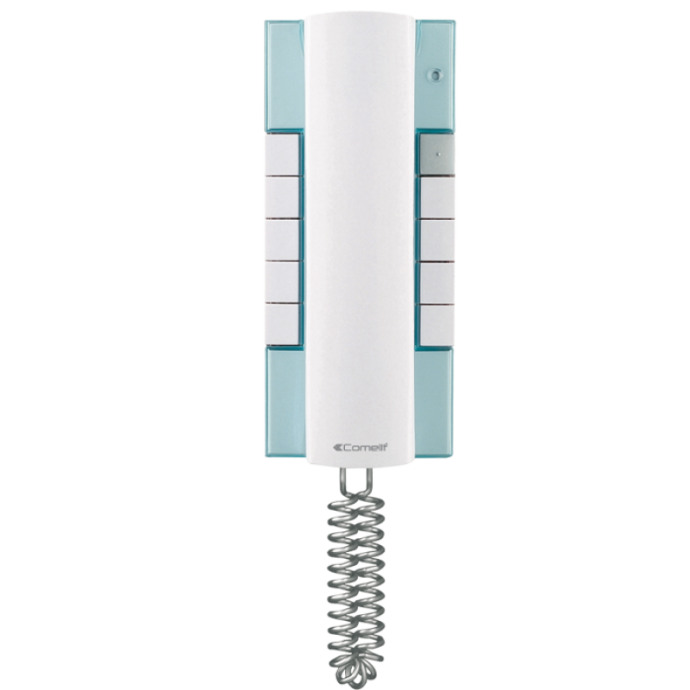

Telephone for Simplebus 2 System Elegance Style 2628 by Comelit

It is an intercom telephone with the Simplebus 2 system, it belongs to the Style series. It has many functions such as: conversation key to the base, volume regulation, lock release button, private service and additional button.

The telephone has an 8-position dipswitch, with which we can select the desired user code. This telephone can be used in mixed audio/video installations (simplebus 1 and simplebus 2).

In this phone model it is possible to replace the cover.

Dimensions: 95x215x58mm.

Details

Technical Specifications of the Comelit Elegance Style 2628 Telephone for Simplebus 2 System

STYLE ELEGANCE HANDSET FOR A/V SYSTEMS
GENERAL DATA
Height (mm)	215
Width (mm)	95
Depth (mm)	58
Type of finishing materials	Plastic
Product weight (g)	0,5
Wall-mounted	Yes
Desk base-mounted	Yes
ELECTRICAL CHARACTERISTICS
Supply voltage	22÷28VDC
Maximum absorption (W)	200
HARDWARE FEATURES
Customisable housing	Yes
Total buttons (n°)	4
Additional buttons (n°)	6
LED signaling (no.) (n°)	1
ENVIRONMENTAL AND COMPLIANCE FEATURES
IP protection rating	IP30
Operating temperature (°C)	-5 ÷ 40

GENERAL FEATURES
Maximum current absorption (mA)	200
Minimum current absorption (mA)	1
Call to group addresses	Yes
Call to multiple addresses	Yes
Panic call	Yes
Interchangeable cover	Yes
Call forwarding	Yes

GENERAL FEATURES
Switchboard call function	Yes
Floor door call function	Yes
Actuator control function	Yes
Privacy conversation function	Yes
Privacy function	Yes
Key button function	Yes
Loudspeaker volume control	Yes
Microphone volume control	Yes
Ringtone volume control	Yes
Redial	Yes
Led to additional signaling (no.) (n°)	3
Audio system	Yes
Simplebus 2 audio system	Yes
Simplebus 2 audio/video system	Yes
Electronic bell	Yes
