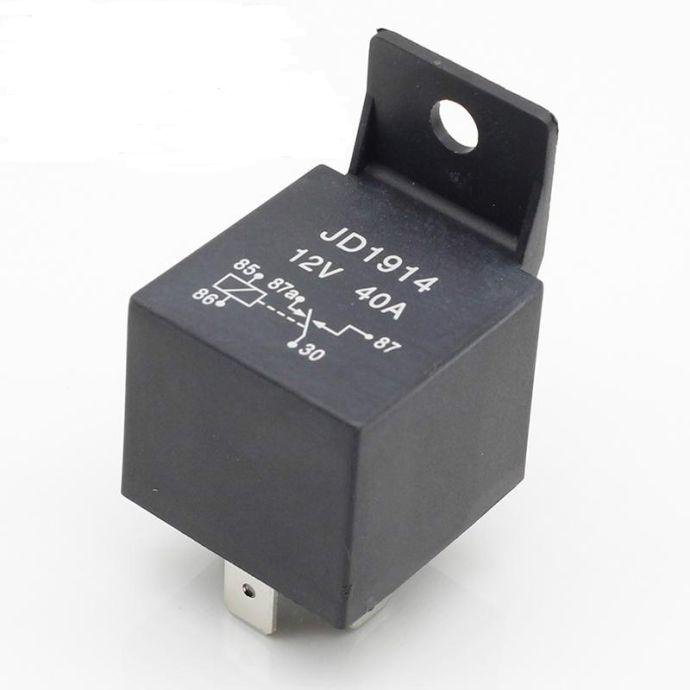

Relay 12Vdc 40A with Socket

SKU
NAR12DC
Brands: TDTprofesional
Availability: In stock
24/48 Hours
11% Discount for professionals
€10.70 Tax included
TDTprofesional
-
+

12Vdc Relay with Socket and 40A

A relay is used to open and close electrical circuits and can be used to automatically control the power of household appliances, access doors, electromechanical locks, etc.

This relay is ideal for the installation of electromechanical locks. It has a 12Vdc and 40A power supply and eliminates the problem of surges.

It has a very small size in order to facilitate its installation in electrical registers.

The connection system would be:

Positive (+12V)

Negative (-12V)

Relay common (C)

N.C. Relay (NC)

NO. Relay (NO)

Technical Specifications of the 12Vdc Relay with Socket and 40ª




R12 DC

Characteristics:

Maximum switching current: 40A.

Electrical life expectancy: 100,000 operations (at 30 operations/min).

Mechanical life expectancy: 10,000,000 operations.

Rated Voltage (VDC): 12V

Coil Resistance (1.8W): 80

Maximum applicable voltage (VDC): 15.6.

Temperature range: -30 °C ~ +80 °C.

Humidity: 40% ~ 85%.

Insulation resistance: 100 m ohm minimum at 500 V DC.

Dielectric strength between open contacts: 500 V AC (for one minute/sec).

Between contact and coil: 750 V AC (for one minute/second).

Operating time: 7ms.

Release time: 5ms.

Size: 5.2 x 2.7 x 3.1cm.



More Information
More Information
System Rele
SERIE Accessories
Color Black
Product Brand TDTprofesional
Reviews
Write Your Own Review
You're reviewing:Relay 12Vdc 40A with Socket
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Rele 12Vdc 40A con Zócalo 190.4 KB Download
