PLC Powerline AV500 WiFi Extender 300Mbps
Availability:
In stock
Delivery:
24/48 Hours
Powerline WiFi AV500 Extender

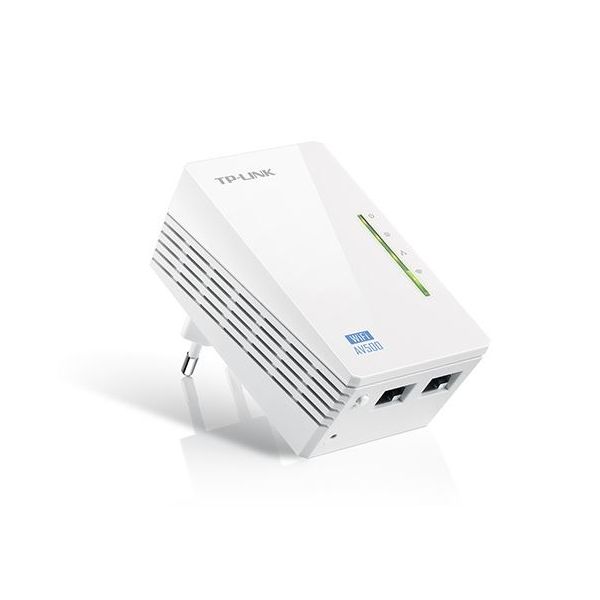

TP-LINK TL-WPA4220 PLC takes your Internet connection to any room in the house through the existing electrical installation in your home.
The TL-WPA4220 has a Wi-Fi cloning button that allows a super extension of coverage, automatically copying the SSID and password of your router.
In this way, the TL-WPA4220 simplifies your Wi-Fi configuration and allows mobility without cuts in your home network.
NOTE: All Tp-Link PLC models are compatible with each other.
With wireless speeds of up to 300Mbps, you can effortlessly extend your network and WiFi through the existing Powerline and relay a wireless signal to share with all your WiFi devices in other areas of your home or office.
What technical characteristics does the TL-WPA4220 PLC have?
Super extension of coverage at the touch of a button - The cloning Wi-Fi button simplifies your Wi-Fi configuration and helps you build a unified, uncut network
The HomePlug AV standard provides high-speed data transmission up to 500Mbps over existing electrical wiring in the home, ideal for streaming HD or 3D video without delays and network gaming
Extends wireless connections up to 300Mbps to previously inaccessible areas of your home and office
What technical specifications does the TL-WPA4220 PLC have?
HARDWARE FEATURES
Plug Type
EU, UK, US, AR
Standards and Protocols
HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface
2*10/100Mbps Ethernet Port
Button
Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption
Maximum: 5.308W (220V/50Hz) Typical: 5.086W (220V/50Hz) Standby: 4.170W (220V/50Hz)
LED Indicator
PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H )
3.7 x 2.1 x 1.6 in. (94×54×40mm)
Range
300 Meters over electrical circuit
WIRELESS FEATURES
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity
270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wireless Security
64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions
Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power
CE:<20dBm(2.4GHz) FCC:<30dBm
SOFTWARE FEATURES
Modulation Technology
OFDM (PLC)
Encryption
Powerline Security: 128-bit AES Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification
CE, RoHS
Package Contents
● AV600 Powerline Wi-Fi Extender: TL-WPA4220 ● Ethernet Cable × 1 ● Quick Installation Guide
System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux, Windows 10
Environment
Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
More Information
EAN
6935364032241
Hight
0.190
Length
0.100
Width
0.140
System
WiFi
SERIE
Fast Ethernet
Color
White
Network Equipment
Powerline PLC
Ports
2
Data Speed
Fast Ethernet (10/100Mbps)
PoE
No
Product Brand
Tplink
