Fermax Marine SIP 1 Pushbutton ST1 AP101

SKU
FER1680
Brands: Fermax
€444.00
Tax included
Availability: On request
1 to 7 days

Marine SIP ST1 AP101 Fermax 1680 plate

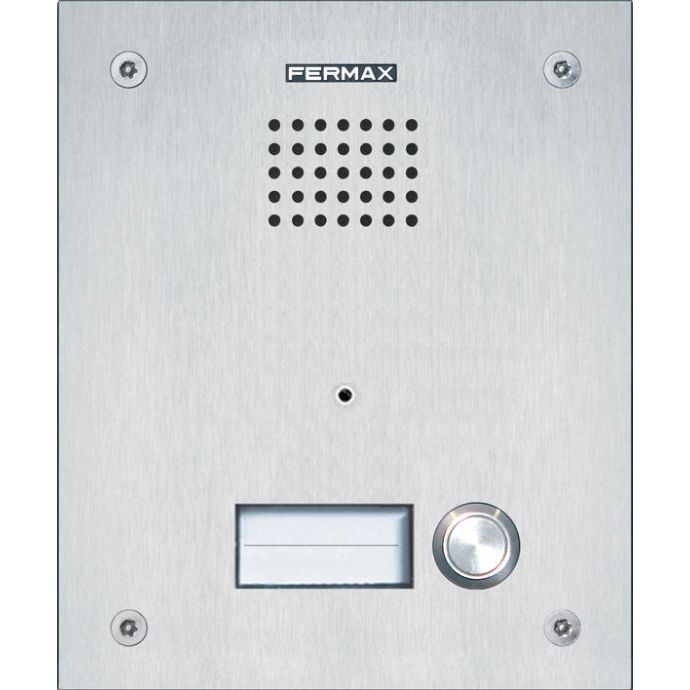

The Fermax Marine SIP 1680 plate is a 1-button SIP entrance panel , designed for professional installations where it is required maximum mechanical resistance and durability outdoors.

Made in 2.5 mm thick AISI 316L stainless steel , this vandal-proof plate IP65 IK09 is prepared to resist impacts, vandalism and extreme weather conditions, being especially suitable for humid, saline or corrosive environments .

He vandal-proof stainless steel push button, with anti-lock system and integrated information card holder , to be able to add an informative label, guaranteeing reliable operation even in intensive use accesses, maintaining a professional and robust aesthetic.

Altogether, the Marine SIP plate Fermax 1680 It is an ideal solution for single-family homes, controlled access and SIP projects where the reliability of the material and the external protection are decisive.

*Marine plates do not include the recessed box or surface, they must be ordered separately.

Reference: FER1680

-
+

Extended information about Marine SIP ST1 AP101 Plate

Practical Applications of the Fermax 1680 SIP Marine Plate

1. Single-family homes in coastal areas or adverse climates

The Marine SIP 1680 board is ideal for chalets and single-family homes located in coastal areas, industrial environments or areas with high humidity, where AISI 316L steel guarantees resistance to corrosion and a long useful life.

2. Exposed exterior accesses and isolated control points

Thanks to your anti-vandal design and his single programmable SIP button, this plate is very suitable for access doors, technical rooms, private parking lots or remote installations , where simplicity, robustness and reliability are required.

Technical Specifications of the Fermax 1680 SIP Marine Plate

otocolos

SIP v1 (RFC2543), SIP v2 (RFC3261) sobre TCP, UDP o TLS
RTP/RTCP/SRTP
STUN
DHCP
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Audio

Codecs G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K, G.722, Opus
DTMF In-band, Out-band (RFC2833/SIP INFO)

Departures

2x Relé C-N/O, N/C máximo 30V/2A cc, 125V/0,5A ca

Red

Ethernet 10/100 Mbps
Modos IPv4, IPv6, IPv4 IPv6
Static, Dynamic, PPoE IP Address
VPN L2TP, OpenVPN
VLAN

Feeding

PoE Class 3 (30W max)
12Vcc/1A

Others

Operating temperature: -30ºC to 60ºC
Operating humidity: up to 95%, non-condensing
Tested according to IEC 60068 standard



More Information
EAN 8424299016801
Hight 0.000
Length 0.000
Width 0.000
ACCESOS - SISTEMA SIP
ACCESOS - SERIE MARINE
Color Silver
Color Portero/Videoportero Solo Audio
Type Entrance panel
Usar stock disponible No
Product Brand Fermax
Write Your Own Review
You're reviewing:Fermax Marine SIP 1 Pushbutton ST1 AP101
Your Rating
File Label Size Download
pdf Guía Rápida PLACA MARINE SIP ST1 AP101 1.4 MB Download
pdf Declaración de Conformidad Placa Marine SIP 1 Pulsador ST1 AP101 de Fermax 136.9 KB Download
pdf Ficha Técnica Placa Marine SIP 1 Pulsador ST1 AP101 de Fermax 137.8 KB Download
