Fermax Marine ST1 Duox Plus Plate

SKU
FER44338
Brands: Fermax
€295.88 Tax included
Free shipping
(Iberian Peninsula)
Fermax
Availability: On request
1 to 7 days

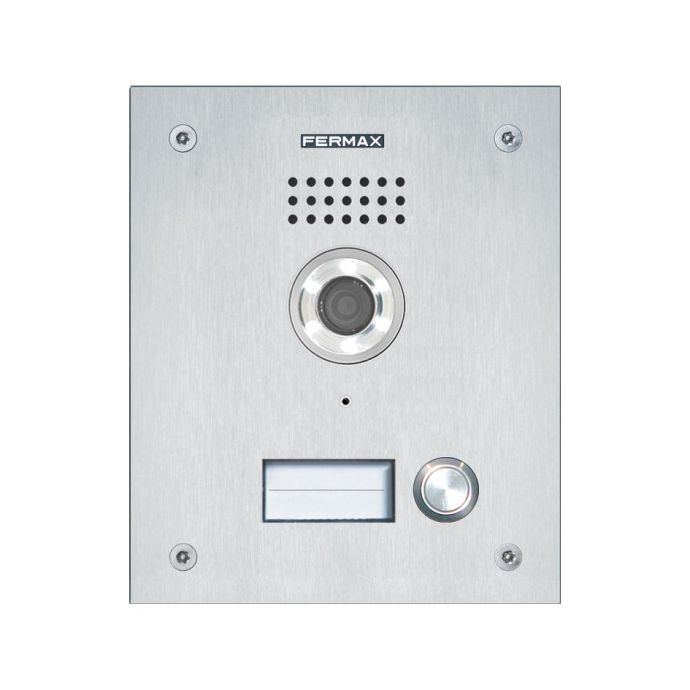

Fermax Marine ST1 Duox Plus 44338 panel

The Marine ST1 CP101 DUOX PLUS series panel is a robust and elegant solution for video door entry systems. Made of 2.5 mm thick AISI 316L stainless steel, it offers exceptional resistance to adverse weather conditions and vandalism.

Ideal for residential communities or buildings in coastal areas, where corrosion resistance and durability are essential. Its vandal-resistant design and wide-angle camera guarantee security and reliability.

Equipped with a wide-angle color camera, it allows a wide view of the entrance area. Its DUOX PLUS 2-wire non-polarized system facilitates installation and ensures clear and secure communication.

The panel includes a vandal-proof push button with backlit card holder, allowing resident identification even in low light conditions.

Technical Specifications of the Fermax Marine ST1 Duox Plus 44338 Plate

Consumption Leds illumination: 3.5 mA per card holder.

Video

  • Sensor: 1/3" color CMOS.
  • Effective pixels> 340K. (camera captures 720x480)
  • Minimum external illumination: 0 lux.
  • As it has LEDs, no additional illumination is required.
  • S/N >45dB.
  • Frame rate 25 fps.
  • Resolution> 368x288 pixels.
  • Video codec:
  • H264 Highline Profile
  • Auto iris.
  • Auto BLC
  • .Viewing angle 125º horizontal, 85º vertical.
  • Fisheye correction.
  • Color night vision through white LEDs.
  • Digital Pan & Tilt zoom.

ST1 Series board.

  • Board measures: 150x180 mm (width-height).
  • Flush box measures: 130x160x55 mm (width-height-depth).
  • Surface box dimensions: 154x184x95 mm (width-height-depth).
  • Visor dimensions: 154x184x40 mm (width-height-depth).

Power supply: 18-24 Vdc

Consumption:

  • idle: 240 mA.
  • active audio: 560 mA.

IP65 IK09

Power audio direction home-street: 2W

Power audio direction street-home: 0,15W

Volume adjustable in both directions

Operating temperature: -25 to 70 ºC
Technology: DUOX

Weight: 1.177 kg

Packed product dimensions: 21x15,8x7,8 cm

EAN 13: 8424299443386

More Information
EAN8424299443386
Hight0.300
Length0.100
Width0.200
ACCESOS - SISTEMADUOX PLUS
ACCESOS - SERIEMARINE
ColorSilver
Color Portero/VideoporteroColor
TypeEntrance panel
Product BrandFermax
