Fermax Way-Fi Plus 7'' Monitor

SKU

FER1572

Brands: Fermax

Availability: In stock

Delivery: 24/48 Hours

€254.83 Tax included

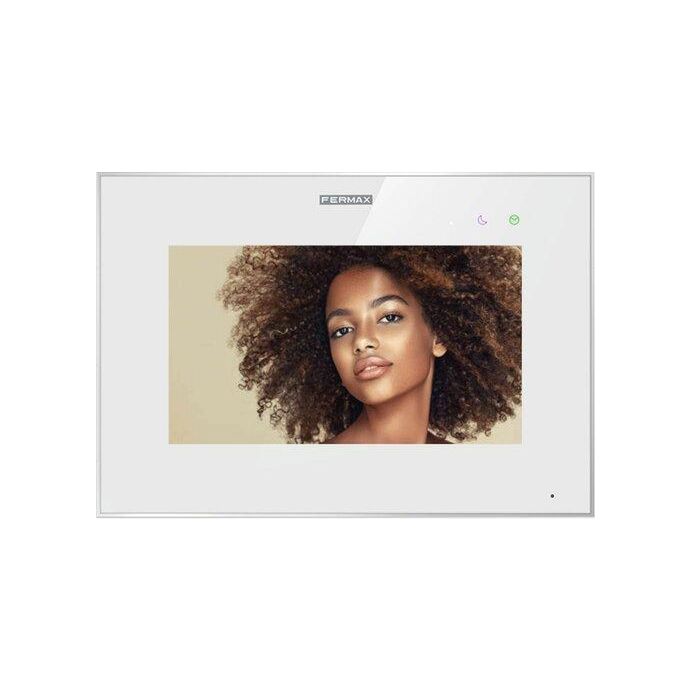

Fermax Way-Fi Plus 7'' Monitor

This monitor serves as an additional monitor for the Fermax WAY-FI Plus kit, with the 1573 board and the Fermax 1570 feeder. It has a 7” screen size and is touch-sensitive.

The monitor has a Wi-Fi connection to be able to use call forwarding to smartphones and tablets. The monitor is installed through a 2-wire non-polarized system.

It is compatible with Alexa and Google Home. We can receive call notifications on the speaker or our smart screen. We can also open the door using voice commands.

The monitor can capture photos and videos, also allowing them to be viewed from the monitor or mobile phone. If we have another monitor in the same home, it allows intercommunication between the monitors (up to 6 monitors in total in the home).

Pairing is done easily via QR code. Allows the integration of the Fermax 9986 Wifi IP camera (up to 4 cameras per home), allowing us to see the camera images on our monitor or mobile phone).

Details

Especificaciones Técnicas del Monitor Way-Fi Plus 7'' de Fermax

MONITOR. Ref 1572

Call forwarding to cell phone: unlimited number of cell phones that can be paired. Possibility to select on the monitor whether the call rings at the same time on the monitor and on the smartphone or first on the monitor and then on the smartphone (programmable delay time 5-25 s.). Forwarding from the monitor can also be deactivated.
Mounting: Surface mounted (wall connector included)
Display: 7" capacitive touch screen (widescreen 16:9 format). Resolution 1024 x 600 pixels. Wide viewing angle (IPS technology). Intuitive user interface compatible with swipe operations.
Leds: White: Monitor On; Purple: Do-not-disturb On; Green: Photos/Videos Pending Display
Conversation mode: Hands-free
Connections for door bell: terminals GND, BELL
Connections for auxiliary device activation: terminals GND, F1
Date and time: Time: 12/24h format; Date: configurable format. Configurable manually or synchronized from internet.
Do not disturb mode: immediate and/or timed activation/deactivation for a time slot during the day.
Photo Capture: Automatic-Disable (disabled by default) and Manual. 200 photos without Micro SD card, 5,000 with Micro SD (depending on SD size). Photos on the monitor can be copied to the Micro SD card.
Video capture: Automatic-Disable (disabled by default) and Manual. 20 videos without Micro SD card, 5000 with Micro SD card. SD size: 8-128 GB, not included in the kit. Videos of 15 seconds.
Delete photos and videos: One by one, select several, select all. When the storage limit is reached, it deletes the oldest ones. Option to format the Micro SD. Activated by default the deletion after 30 days.
Photo and video gallery (with date and time).
Auto-on: display of the lane from the monitor, with the possibility of switching from panel/camera.
Pedestrian door opening (electric door opener): 12 Vdc output active. Opening time programmable (1-10 s.)
Garage door opener (electromagnetic door opener): Activates relay. Programmable opening time (1-10 s.)
Image settings: Brightness.
Call and conversation volume adjustment: levels from 0-8.
Internal intercom function in the house: Only between monitors (not with smartphones). Possibility of call to one or call to all. Maximum up to 6 monitors per house (1 main and 5 additional).
Menu languages: 17
Selectable for: badge call, doorbell, intercom call, motion alarm, tamper, app call.
Compatibility with analog CCTV cameras: No
Compatibility with FERMAX Wifi IP CCTV cameras ref. 9986: up to 4 cameras per installation. Not compatible with other camera models.
Connections: Bus (B, B); Doorbell (GND, BELL); Auxiliary activation (F1, GND). Slot for Micro SD card (8-128 GB).
Menu-driven configuration, without DIP-switches.
Firmware update via SD or OTA (internet).
