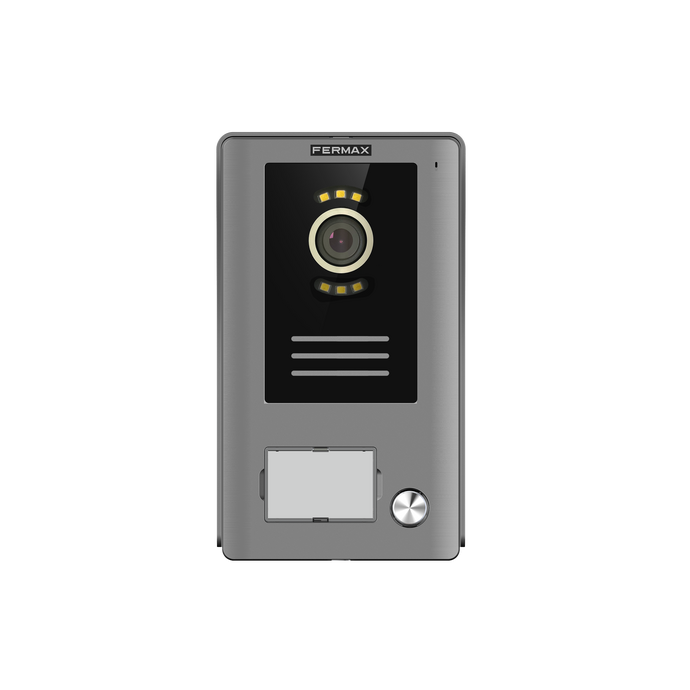

Way-Fi Plus 1 Street Panel by Fermax Home

SKU

FER1573

Brands: Fermax

Availability: In stock

Delivery: 24/48 Hours

€184.04 Tax included

Street Panel for Fermax WAY-FI Plus 1 Housing System

Additional entrance panel for the Fermax WAY-FI Plus video intercom kit. It is a single-family plate. It is compatible with the 1572 monitor.

The plate is surface mounted and includes a rain visor. It is suitable for outdoors, with a rating of IP 44 and vandal-proof IK 07. The panel comes with a high-quality color camera, which will allow us to see good images even at night, thanks to its 6 white LEDs that are activated by a light sensor.

It has 2 activators: one for an electric door opener (with 12Vdc and 250mA output) and another for a second garage door, configurable as open/closed. The panel has a maximum consumption of the lock release of 250mA during maintenance.

The plate has an aluminum color and includes a round button. Also includes a removable card holder. Both the button and the card holder have blue LED lighting. The backlight is activated by a light sensor. The speaker volume can be adjusted manually. The 1573 plate allows door opening via QR code.

Details

Technical Specifications of the Entrance Panel for WAY-FI Plus 1 House System of Fermax

PLATE. Ref 1573

Mounting: Surface mounted. Rain visor included, required for mounting.
IP / IK Rating: IP 44 / IK 07
Material finish Aluminum
Electric lock release activation: Yes (output 12 Vdc 250 mA, terminals S+, S-). Can be timed (1-10 s.)
Potential free relay for 2nd door activation (garage): Yes. Configurable as Normally Open/Closed. Time delay (1-10 s.)
Pushbutton connection for entrance hall exit: Yes, activates electric lock release or relay, selectable and timed (1-20s). Terminals PL, GND
Camera: CMOS, HD resolution. Wide angle (H=122º; V=63º). White LEDs (6) camera illumination with light sensor activation.
Card holder and push button set: Front removable card holder and call button, both with white LED backlighting. Backlight activation by light sensor.
Possibility of additional plates: Yes, one.
Speaker volume adjustment: Yes
Operating temperature: [-25ºC, +70ºC].
Maximum electric lock release consumption: 250 mA in maintenance mode
Configuration by DIP-switch: board number and output button activation selection (electric lock release or garage relay)
