SMATV Optical Receiver without return channel 1200..1600nm
Availability:
On request
SKU:
TEL2335
Televes
1 to 7 days
Free shipping
(Iberian Peninsula)
€668.67
Tax included

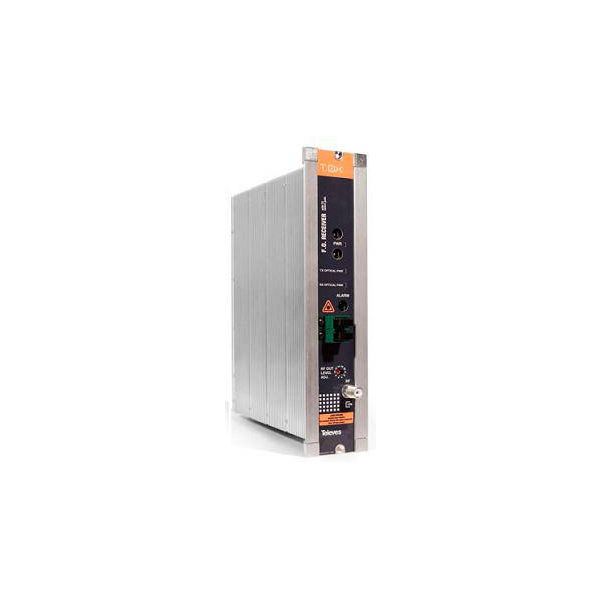

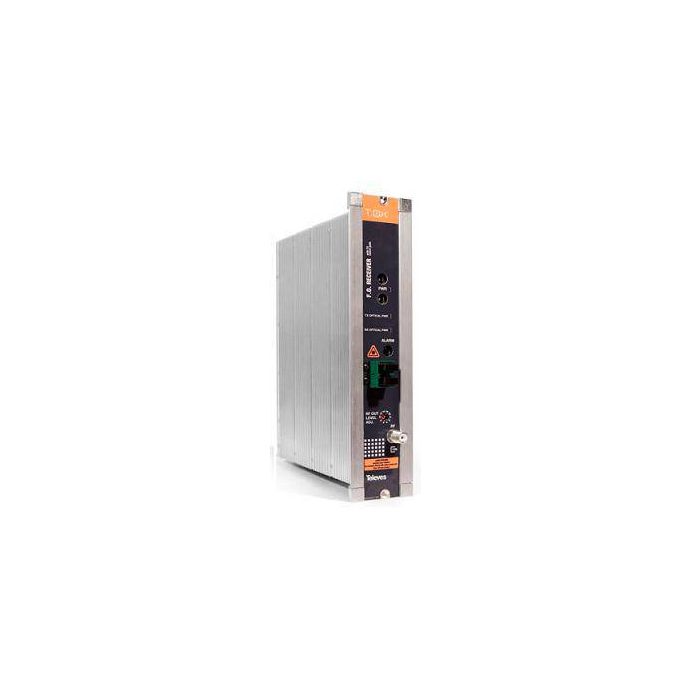

SMATV Optical Receiver without return channel 1200..1600nm
This module receives the signal from the optical fiber to transform it into RF for adaptation to a coaxial network. It is very energy efficient and optimizes quality parameters in optical reception.
This receiver is multi-window (it works in the 1200..1600nm range).
Ideal in constructions where there is a long distance between the headend and the distribution system, where a coaxial cable reaches high losses and it is better to use fiber optics, such as large urban complexes, hotels, large villas.
The receiver has a high RF output power (114 dBμV in MATV and 117 dBμV in IF).
Used in conjunction with: Ref. 233306/233311/234305 (optical transmitter) and Ref. 5629 (power supply)
Televes
1 to 7 days
Free shipping
(Iberian Peninsula)
Technical Specifications of the SMATV Optical Receiver without return channel 1200..1600nm
RF Input/Output |
Frequency range | Forward channel | MHz | 87 - 2400 |
Return channel | ---- | |||
Maximum Output Level for CSO and CTB >= 60dB | 87-862 MHz | dBμV | 93 | |
950-2400 MHz | 90 | |||
Output level regulation margin (in 2 dB steps) | dB | 0 - 18 | ||
Maximum input level return path | dBμV | ---- | ||
Equivalent input noise of the return channel, measured at 30 MHz and the transmitter output connected directly to the receiver |
dBm/Hz | -152,5 | ||
Flatness | dB | ± 1,5 | ||
Return losses | dB | >= 11 | ||
Impedance | ohm | 75 | ||
Optical input (forward channel) |
Optical device | type | InGaAs Pin Photodiode | |
Wavelength | nm | 1200 -1600 | ||
Detection bandwidth | MHz | 1 - 3000 | ||
Maximum Optical power received | mW/dBm | 4 / 6 | ||
Optical output (return channel) |
Laser | type | ---- | |
Wavelength | nm | ---- | ||
Maximum output power | mW/dBm | ---- | ||
General | Powering/Consumption | 12 Vdc | mA | 300 |
24 Vdc | 155 | |||
RF connectors | type | F hembra | ||
Optical connectors | SC/APC | |||
Operating temperature | ºC | -5 ··· +45 |
Televes
1 to 7 days
Free shipping
(Iberian Peninsula)
EAN | 8424450147603 |
---|---|
Color | Silver |
Product Brand | Televes |
FO Distribution | FO Receiver |
Entorno | Interior |
