Ajax 16-Channel 8 MP NVR Recorder with 80 Mbps Bandwidth, AI Motion Detection, Black

SKU
AJ-NVR116-HDC-B
Brands: AJAX
€500.06
Tax included
% Discount for professionals
AJAX
Availability: In stock
1 to 7 days

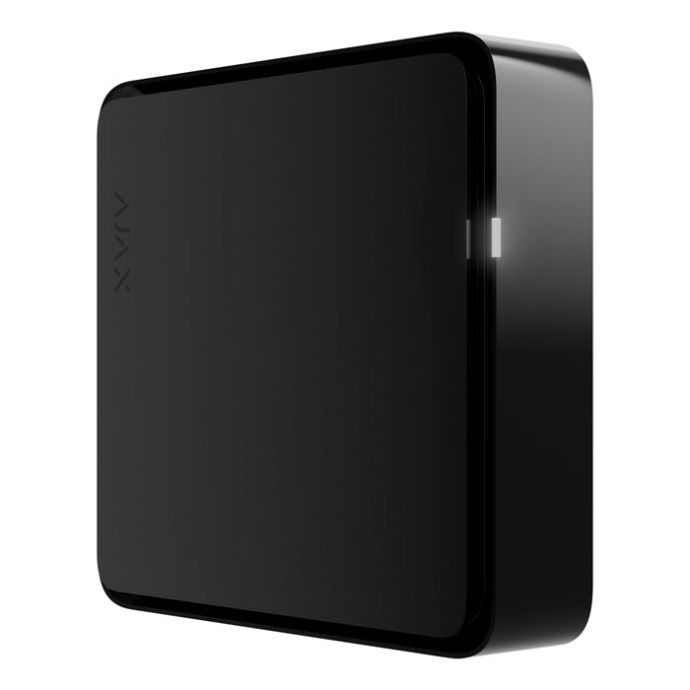

Ajax 16-channel 8 MP HDC black NVR recorder with HDMI

The Ajax AJ-NVR116-HDC-B 16-channel 8 MP NVR recorder centralises recording, management and live viewing for up to 16 IP security cameras. It is a compact solution for professional video surveillance projects that require high-definition recording, fast access to footage and integration with the Ajax ecosystem.

This recorder works in IP video surveillance systems and supports compatible cameras via ONVIF/RTSP, with H.265/H.264 compression to optimise storage and transmission. It is especially suitable for shops, offices, communities and large homes where the installer needs to manage several cameras from one reliable device.

The AJ-NVR116-HDC-W offers recording resolution up to 8 MP, incoming bandwidth up to 80 Mbps and Full HD HDMI output for local monitor viewing. It is intended for new installations or IP system expansions, not as a specific spare part, and enables quick setup through Ajax QR code pairing and mobile app configuration.

Overall, this white Ajax NVR is a practical choice for projects requiring centralised video management, clear image quality and easy maintenance. It can be combined with IP and WiFi cameras or listed within the IP NVR recorders category.

Reference: AJ-NVR116-HDC-B

-
+

Extended information about Ajax 16-channel 8 MP 80 Mbps AI Motion Detection Black NVR Recorder

Practical applications of the Ajax AJ-NVR116-HDC-B 16-channel 8 MP NVR Recorder

Example 1. Logistics distribution warehouse:

The company already had 12 existing Hikvision IP cameras, compatible with ONVIF, installed across the loading docks and perimeter. Their previous recorder had failed, so they needed an alternative that would allow security guards to monitor everything locally in real time, while also sending instant notifications to the owners’ mobile phones in the event of a night-time sabotage attempt. The 12 existing cameras were kept in operation thanks to the open compatibility of the AJ-NVR116-HDC-B. In addition, 3 native Ajax TurretCam cameras were added in the main offices, taking advantage of the NVR’s capacity to support up to 16 channels in total.

Example 2. Professional installation with local viewing and app-based access:

In a large home, residential community or business premises with a dedicated security monitor, the Full HD HDMI output allows live and recorded footage to be viewed locally. QR code pairing and configuration through the Ajax apps help speed up commissioning and reduce installation time, especially in projects where the installer needs to leave the video system fully operational in a single visit.

Package contents of the Ajax 16-channel 8 MP 80 Mbps AI Motion Detection Black NVR Recorder

  • Ajax HDC 16-channel NVR recorder
  • Terminal adapter
  • Power cable
  • Ethernet cable
  • Installation kit
  • Quick start guide

Technical specifications Ajax 16-channel 8 MP 80 Mbps AI Motion Detection Black NVR Recorder

Category Specification
Brand Ajax
SKU AJ-NVR116-HDC-B
Product type IP NVR recorder
Series Ajax NVR HDC
Channels Up to 16 IP cameras
Maximum recording resolution Up to 8 MP
Camera compatibility ONVIF Profile S / RTSP
Video formats H.265 / H.264
Incoming bandwidth Up to 80 Mbps
Outgoing bandwidth Up to 40 Mbps
Video output Full HD HDMI
Network Ethernet port
USB ports 2 x USB Type-A
Storage 1 x SATA 3.5" hard drive, up to 16 TB
Hard drive included No
Video functions Motion detection, video events and management via Ajax apps
Transmission technology Ajax JetSparrow
Configuration QR code pairing and control via Ajax apps
Main power supply HDC 8-16 V DC, up to 4 A
Power supply with PSU jumper 12.1-16 V DC, up to 4 A
Power consumption Up to 24 W
Operating temperature 0 °C to +40 °C
Operating humidity Up to 75%
Protection rating IP20
Dimensions 212 x 212 x 64 mm
Weight 752 g, without hard drive
Colour Black
Installation SmartBracket mounting panel
Not included Hard drive and HDMI cable
More Information
More Information
EAN 4823114083860
Hight 0.000
Length 0.000
Width 0.000
Event notifier No
Usar stock disponible No
Product Brand AJAX
