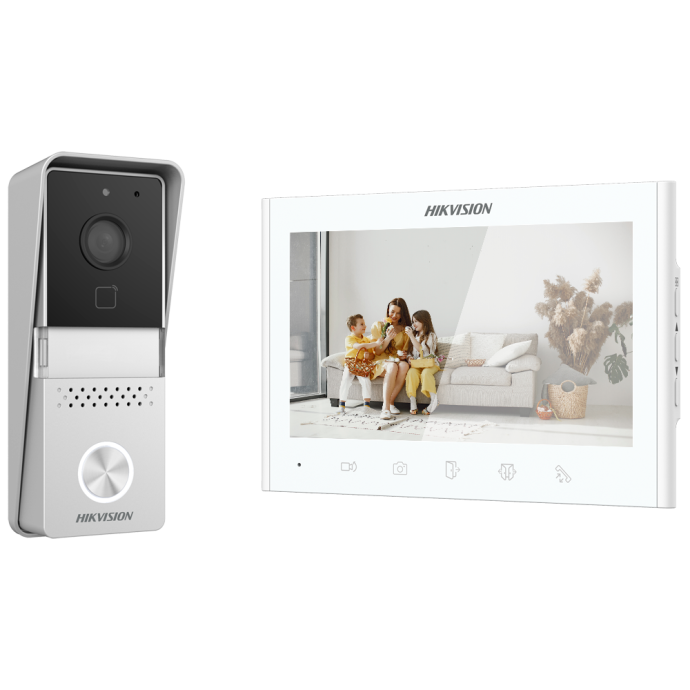

Hikvision 2-wire video intercom kit with keypad panel and 7" LCD monitor (includes MF card reader)

SKU
DS-KIS102-P/Surface
Brands: Hikvision
€199.89
Tax included
Availability: In stock
24/48 Hours

2 -wire videoporter kit with MF reader 7 ”Hikvision Monitor

The Hikvision DS-Kis102-P/Surface Video Surface street plate with mifare card reader (MF) , which allows you to manage tickets comfortably and safely and a 7 -inch LCD monitor , which offers clear image and intuitive control. It is designed to offer a comprehensive communication and access control solution.

The External plate has 2 thread connection , being useful in new facilities or to renew facilities with existing wiring. Its installation is simple and fast. The 2 -wire system allows a bidirectional hands -free communication and opening oars from the interior monitor. It is designed to install it on surface. Has a mechanical call and opening button with MF cards 13.56MHz (up to 50 cards).

On the other hand, the monitor LCD has a screen 7 ”full color , with a 1020x600 resolution. It has 5 touch buttons with which you can navigate the menu in a simple way.

This Hikvision kit is designed to adapt to both residential and commercial environments, guaranteeing reliability and image quality in each use. Its modern design, combined with advanced access control functions, makes it an ideal option for those who seek security and practicality in a single team.

Package content:

  • Hikvision external door entry panel for surface mount installation
  • Hikvision indoor Monitor
  • Rain Cover

Modernize your access and improve your safety with the Hikvision DS-KIS102-P/Surface: easy to install, safe and designed for your comfort.

Reference: DS-KIS102-P/Surface

-
+

Technical Secifications of the 2 Wire Videoporter with MF reader and 7" monitor Kit Hikvision

PLATE

Operating system Embedded analog operating system
Audio Bidirectional audio with microphone and speaker
Image sensor 800 TVL with IR
Viewing angle H: 110º, V: 65º
Keypad Mechanical button with LED backlit name-tag
Outputs 2 x relay outputs (1 x power up to 12 V / 400 mA)
Inputs 1 x monitor input, 2 x push button, 2 x door sensor
Access control Door opening with MF card 13.56 MHz
Up to 50 cards
Communication 2 wires
Power DC 15 V / 1.2 A max. (via monitor by 2 wires)
Degree of protection Suitable for exterior IP55
Material Aluminium alloy
Temp. operation -30 ºC ~ +60 ºC
Dimensions 63 (W) x 151 (H) x 41 (D) mm

MONITOR

Operating system Embedded analog operating system
Screen type 7" color TFT
Screen resolution 1024 x 600
Operation mode 5 touch buttons
Physical menu and scroll buttons for configuration
Outputs 2 x output of 2 wires for inside monitor
Inputs 2 x 2 wires input for external boards, 1 x analog camera input
Audio Two-way audio with integrated microphone and loudspeaker
Connection 2 analogue wires
Power DC 15 V / 1.2 A max.
Temp. operation -10 ºC ~ +50 ºC
Dimensions 123 (W) x 184 (H) x 20 (D) mm
More Information
EAN 6936422119218
Hight 0.120
Length 0.300
Width 0.090
ACCESOS - SISTEMA 2 Threads
ACCESOS - SERIE Kit
Color Silver
Color Portero/Videoportero Color
Type Complete Kit
Indoor Unit Type Hands-free
Internet Conectivity No internet
Number of dwellings 1
Usar stock disponible No
Product Brand Hikvision
