Broadband Amplifier 4 inputs (BI-FM-BIII/DAB-UHF) 31dB
€51.76
Tax included

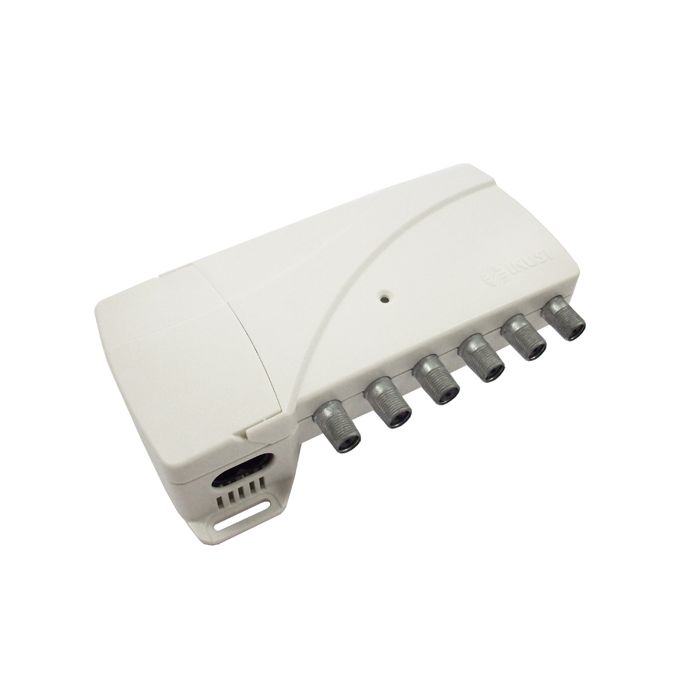

NBS-204 Amplifier with 4 inputs (FM-BI-DAB/BIII-UHF) LTE IKUSI 3516
Terrestrial broadband amplifier unit of 4 inputs (FM-BI-DAB/BIII-UHF) with 31dB of gain and integrated 4G LTE filter. It offers an output of up to 106dBμV with a low noise figure of 5dB.
Low power multiband amplifier designed for small collective radio and television installations. It has attenuators on each input to adjust the output levels optimally.
Device in a zamak box with a protective cover for the adjustment elements. For wall mounting in indoor areas.
Ikusi
24/48 Hours
NBS-204 Terrestrial Multiband Unit with 4 inputs (FM-BI-DAB/BIII-UHF) with 31dB Gain and LTE filter
What technical characteristics does the Ikusi 3516 Amplifier have?
- Model adapted to the first digital dividend.
- Low power broadband switchboard for amplification of terrestrial signals in small collective facilities.
- Interstage input attenuators.
- Zamak box with protective cover for the adjustment elements.
- Interior mounting and wall mounting.
What technical specifications does the Ikusi 3516 Amplifier have?
- MODEL: NBS-204
- REF. 3516
- Inputs: 4 (BI-FM-BIII/DAB-UHF)
- Frequency band (MHz):
- BI: 45-68
- FM: 88-108
- BIII/DAB: 174-240
- UHF: 470-790
- Gain (dB):
- BI: 31
- FM: 31
- BIII/DAB: 31
- UHF: 31
- Gain regulation (dB):
- BI-FM-BIII/DAB: 0 - 18
- UHF: 0 - 15
- In-band ripple (dB):
- BI-FM-BIII/DAB: ± 2
- UHF: ± 2
- Outputs: 1
- Output test (dB): -30
- Output level (DIN-45004B IMD -60 dB): 106 dBμV
- Noise figure (dB):
- BI-FM-BIII/DAB: 4.5
- UHF: 5
- Input / output return loss (dB): 10
- Power (VAC): 240 (+ 10% -15%)
- Consumption (W): 3
- Dimensions (mm): 155 x 80 x 40
Ikusi
24/48 Hours
EAN | 8435136435167 |
---|---|
System | DTT |
SERIE | F-connector |
Color | Gray |
Type | Broadband station |
Entorno | Interior |
# Inputs | 4 |
Outputs | 1 |
Gain | 31 |
Max. output level Ganancia (dB/uV) | 106 |
LTE compatible | No |
Current bypass | Terrestrial |
Product Brand | Ikusi |
