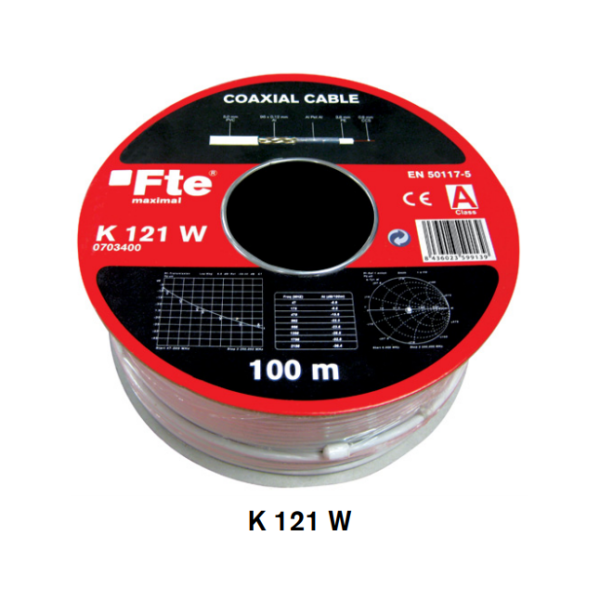

Indoor Coaxial Cable CCS/Al 5mm White FTE (100m)

SKU
FTEK121W
Brands: Fte
€20.42
Tax included
Availability: In stock
24/48 Hours

Coaxial Cable 5mm CCS/Al Indoor White RG59 FTE K 121 W

The FTE K121W coaxial cable is a reliable and cost-effective solution for professional television, satellite and CCTV installations. Designed for indoor use, it offers stable transmission of 75-ohm RF signals, making it suitable for both residential and commercial projects.

This 5 mm coaxial cable features a Copper Clad Steel (CCS) conductor, Al/PET/Al shielding foil, aluminum braid with 80% coverage and a durable white PVC outer jacket. Its construction provides shielding effectiveness above 85 dB, helping to reduce interference and maintain signal quality in TV, FM radio and satellite distribution systems.

Thanks to its compact diameter and flexibility, the K121W is particularly suitable for installers working on new installations, refurbishments or extensions where cable routing through existing conduits is required. It is commonly used to connect antennas, television receivers, satellite equipment and CCTV systems.

In summary, the FTE K121W combines dependable performance, easy installation and excellent value, making it a practical choice for indoor RF signal distribution in television, satellite and video surveillance networks.

Reference: FTEK121W

-
+

Extended Information about FTE K121W 5mm White Indoor CCS/AL Coaxial Cable 100m Reel

Practical Applications of the FTE K121W 5mm White Indoor CCS/AL Coaxial Cable 100m Reel

Example 1. Terrestrial TV signal distribution in a single-family home:

In a domestic television installation, the K121W coaxial cable can be used to distribute the signal from the antenna to multiple TV outlets throughout the property. Its compact 5 mm diameter simplifies cable routing through existing conduits while maintaining reliable signal quality.

Example 2. CCTV installation in retail stores and offices:

The FTE K121W cable is suitable for transporting video signals in analog CCTV systems. Its CCS conductor and aluminum braid provide a cost-effective and reliable solution for connecting cameras to recording equipment in commercial and residential environments.

Package Contents of the FTE K121W 5mm White Indoor CCS/AL Coaxial Cable 100m Reel

  • 1 x FTE K121W coaxial cable reel.
  • Total cable length: 100 meters.
  • Cardboard reel packaging.
  • Ready for installation.

Technical Specifications of the FTE K121W 5mm White Indoor CCS/AL Coaxial Cable 100m Reel

Brand FTE Maximal
Model K121W
SKU FTEK121W
Manufacturer Code 0703400
Product Type Indoor Coaxial Cable
Applications TV, DTT, FM Radio, Satellite, CCTV
Characteristic Impedance 75 Ω
Inner Conductor Ø 0.8 mm CCS (Copper Clad Steel)
Dielectric Ø 3.54 mm PE
Foil Material Al / PET / Al
Braid Material Aluminum (Al)
Number of Braid Wires 96
Braid Construction 16 x 6 x 0.12 mm
Braid Coverage 80%
Shielding Effectiveness > 85 dB (30 - 900 MHz)
Outer Diameter 5.0 mm
Outer Jacket White PVC
Recommended Use Indoor Installations
Attenuation at 47 MHz 5.9 dB / 100 m
Attenuation at 175 MHz 10.7 dB / 100 m
Attenuation at 470 MHz 17.35 dB / 100 m
Attenuation at 862 MHz 23.98 dB / 100 m
Attenuation at 950 MHz 25.2 dB / 100 m
Attenuation at 1350 MHz 30.45 dB / 100 m
Attenuation at 1750 MHz 34.89 dB / 100 m
Attenuation at 2150 MHz 38.98 dB / 100 m
Reel Length 100 m
Net Weight 2.38 kg
Reaction to Fire Fca
EAN 8436023599139
Packaging Cardboard Reel
Color White

More Information
EAN 8436023599139
Hight 0.200
Length 0.300
Width 0.300
CTI - System RG59
CTI - Serie 100m
Entorno Interior
Color White
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper Clad Steel (CCS)
Material Malla Coaxial Aluminum (Al)
Usar stock disponible No
Product Brand Fte
