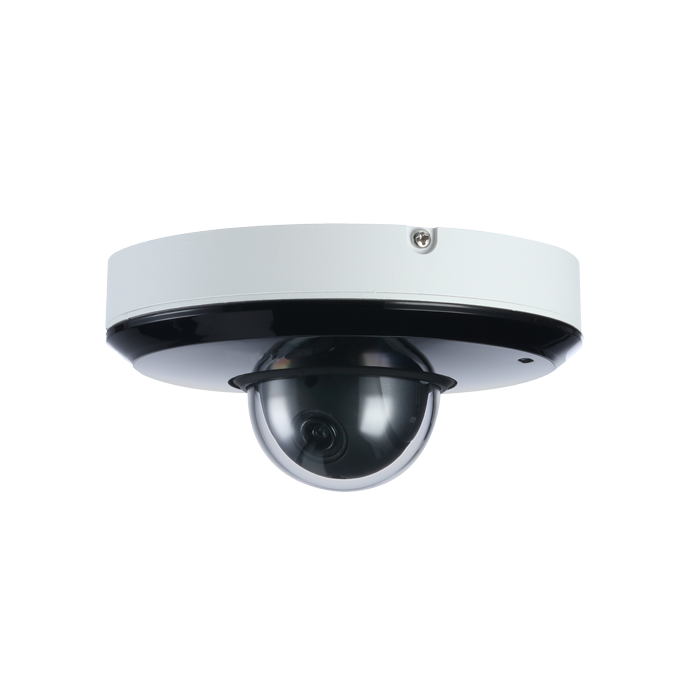

IP Camera PTZ Motorized Dome Zoom x3 for Outdoor


Free shipping
(Iberian Peninsula)
€225.06 Tax included

In stockAvailability: In stock


Delivery: 24/48 Hours

Quick Overview

X-Security PTZ camera with SD Card slot

X-Security XS-IPSD0503SAWH-2W PTZ camera with 2.7~8.1 motorized varifocal optics (3x Optical Zoom - 16x Digital Zoom) and autofocus.

As for its video features, it has a 1/2.8" STARVIS CMOS sensor with 2MP resolution Full HD 1080p and great performance in low light conditions, with night vision at 0 lux in black and white. Supports video compression H.265+ and also allows internal storage by inserting an SD card up to 128GB.

It is an outdoor camera that has IP66 protection that makes it waterproof and IK08 vandal-proof.


X-Security PTZ Dome IP camera with 355º motorized lens, 3x optical zoom and IP66 and IK08 outdoor protection.

What are the main features of the X-Security XS-IPSD0503SAWH-2 camera?

  • PTZ IP Camera
  • Average speed 70º/segundo
  • 3X Optical zoom
  • 1/2.8” STARVIS CMOS
  • 2 Megapixel (1920x1080)
  • 2.7~8.1 mm Varifocal lens
  • Colour 0.005 Lux / B&W 0 Lux
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • RJ-45 10/100 BaseT
  • PoE(802.3af)
  • Weatherproof IP66 Anti-vandal IK08
  • IR Cut
  • WDR
  • SD card recording
  • IVS rules and defog
  • WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF Compatible

What technical specifications does the X-Security camera XS-IPSD0503SAWH-2 have?

Brand X-Security
Image sensor 1/2.8” Progressive CMOS
Maximum resolution 2 Megapixel (1920x1080)
Main Stream rate 1080P/720P/D1 (1 ~ 25/30fps)
Extra Stream rate D1/CIF(1 ~ 25/30fps)
Compression H.265+/H.265/H.264+/H.264/MJPEG
Bitrate 448 Kbps ~ 8192 Kbps
Lens 2.7~ 8.1 mm Motorised Varifocal (Optical Zoom 3X) Autofocus
Digital Zoom 16X
Minimum illumination 0.005 Lux / F1.8 (Colour); 0 Lux (IR on)
Image improvements WDR, BLC, HLC, AWB, AGC, 2D/3D-NR, Privacy Masking
Day / Night Mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Internal memory Slot for Micro SD card (Max 128 GB)
Pan/Tilt Range Horizontal: 0°~355°, Vertical: 0°~90° auto flip 180°
Manual speed Horizontal: 0.1°~70° /s, Vertical: 0.1°~30° /s
Speed between Presets Horizontal: 80° /s, Vertical: 40° /s
Preset positions 300, 8 Tour, Auto Scan
Intelligent detection Line crossing, intrusion, scene changes, abandoned/lost object
Remote access Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR
Interoperability ONVIF
Power supply DC 12 V / 1500 mA / PoE(802.3af)
Degree of protection Weatherproof IP66, Anti-vandal IK08
Temp. operation -30º C ~ +60º C
Dimensions 63 mm (H) x 128 (Ø) mm
Weight 490 g

Additional Information
EAN 8435325430546
Manufacturer X-Security
Technology IP
Color White
Tipe PTZ
Entorno Exterior
Resolution 2MP ~ 1080p
Optics Varifocal
