Kit ROVER TDT 67dB maximum gain
17db UHF Antenna + 50dB Amplifier Satellite Rover + 24V Power Supply + 7 f-type connectors
The Satélite Rover Maximum Gain 67dB DTT Kit has been designed to provide optimal Digital Terrestrial Television (DTT) signal reception in residential installations, rural areas, or locations with low signal levels.
The kit includes high-quality components carefully selected to ensure excellent signal reception, amplification, and distribution.
The included outdoor UHF antenna features 38 elements and delivers a high gain of up to 17dB, allowing efficient reception of weak signals. It also incorporates LTE/5G filtering to minimise interference from mobile networks. The antenna operates in the UHF band, channels 21 to 48 (470–694 MHz) and has a 75-ohm impedance, making it fully compatible with modern television installations.
To maximise system performance, the kit includes the Satélite Rover ROV81182 mast amplifier, equipped with a single UHF input and a manually adjustable gain ranging from 30dB to 50dB, allowing the amplification level to be tailored to the specific requirements of each installation. This adjustment helps prevent signal saturation and optimises reception quality.
The amplifier is powered by the Satélite Rover ROV86009 power supply, a compact 24Vdc, 120mA unit specifically designed for television installations. Its small size makes installation easy in virtually any location, and it features two symmetrical F-type outputs, enabling simple signal distribution and amplifier powering.
The kit is completed with a male F connector for 7.0 mm coaxial cable, designed for professional installations and featuring a 75-ohm impedance, ensuring a reliable low-loss connection.
Thanks to the combination of the antenna's 17dB gain and the amplifier's maximum 50dB gain, the system can achieve a total gain of up to 67dB, making it particularly suitable for challenging coverage areas or installations that require a high signal reserve.

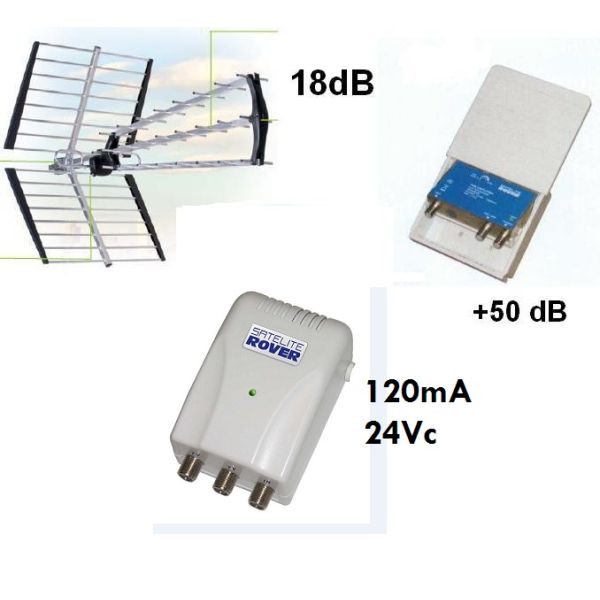

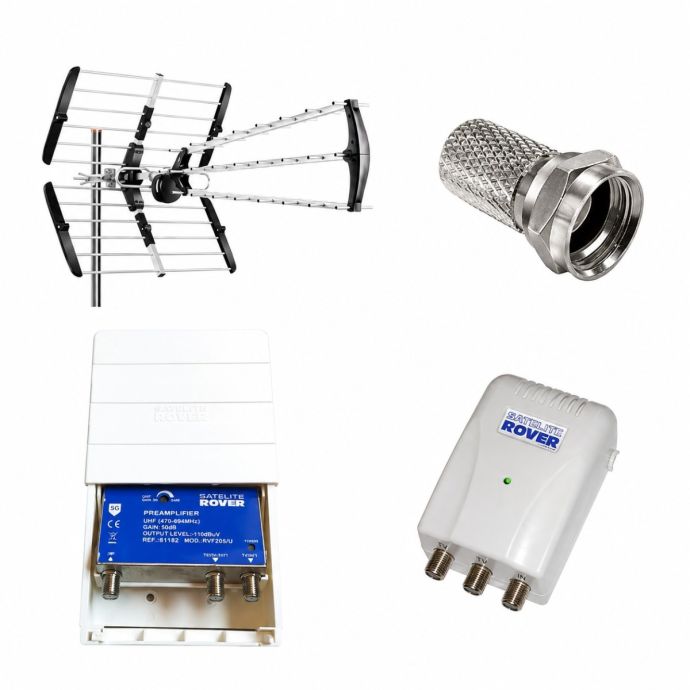

Included Components
- 38-element outdoor UHF LTE/5G antenna.
- Satélite Rover ROV81182 mast amplifier.
- Satélite Rover ROV86009 power supply.
- 7.0 mm male F connector, 75Ω.
Reference: TDT0028
