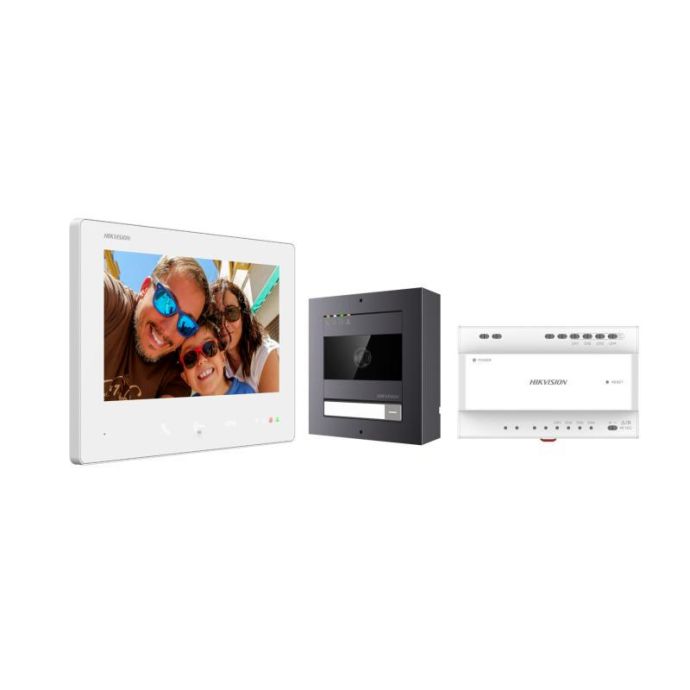

main product photo

Hikvision 2-Wire HD Video Intercom Kit with 2 MP Door Station, 7-Inch Touchscreen Indoor Monitor and 2-Wire Distributor

SKU
DS-KIS704EY/ALUMINUM
Brands: Hikvision
€319.73
Tax included
% Discount for professionals
Hikvision
Availability: In stock
5 days

Hikvision 2-Wire HD Video Intercom Kit with 7-Inch WiFi Monitor

The Hikvision DS-KIS704EY/ALUMINUM includes the door station, touchscreen monitor and distributor required to manage visitors, control access and unlock the door remotely. It is a complete solution for detached houses, villas and residential properties requiring HD video and mobile connectivity.

The DS-KD7003EY-IME2/Aluminum outdoor station features a 2 MP camera, WDR, infrared illumination and a 133° horizontal field of view. Its IP65 protection against dust and water and IK08 impact resistance make it suitable for exposed outdoor entrances. The Hikvision 2-wire video intercom system carries power, audio and video over the same pair of wires.

The DS-KH7300EY-WTE2/White indoor station provides a 7-inch TFT touchscreen, two-way audio and 2.4 GHz WiFi connectivity. Through Hik-Connect, users can receive calls, speak to visitors and unlock the door from a smartphone. It is intended for new installations and renovation projects where the existing wiring has been checked by the installer; it is not a universal replacement.

This 2-wire video intercom kit can simplify the upgrade of an older door-entry system without necessarily replacing all existing conduits. Its main limitation is that remote functions require an Internet connection, while the monitor’s WiFi does not replace the physical 2-wire bus connecting the door station, distributor and indoor monitor.

Reference: DS-KIS704EY/ALUMINUM

-
+

Extended information about the Hikvision 2-Wire HD Video Intercom Kit with 2 MP Door Station, 7-Inch Touchscreen Indoor Monitor and 2-Wire Distributor

Practical applications of the Hikvision 2-Wire HD Video Intercom Kit with 2 MP Door Station, 7-Inch Touchscreen Indoor Monitor and 2-Wire Distributor

Example 1. Upgrading an old door-entry phone in a detached house

An installer upgrading the entrance of a detached house can check the continuity, cross-section and condition of the existing pair of wires and reuse it when suitable. The Hikvision 2-Wire HD system connects the door station, distributor and indoor monitor without necessarily installing new conduits, while adding HD video, two-way audio and remote door release.

Example 2. Managing the main entrance of a villa locally and remotely

For an outdoor entrance exposed to backlighting, rain or low-light conditions, the installer can use the aluminium door station with WDR, infrared illumination and IP65 and IK08 protection. Residents can answer calls on the 7-inch monitor or through Hik-Connect and remotely unlock the door when managing a visitor away from home.

Package contents of the Hikvision 2-Wire HD Video Intercom Kit

  • 1 × DS-KD7003EY-IME2/Aluminum outdoor door station with HD camera, microphone, loudspeaker and call button.
  • 1 × DS-KH7300EY-WTE2/White indoor station with 7-inch colour touchscreen and WiFi.
  • 1 × DS-KAD7060EY audio and video distributor for the Hikvision 2-Wire HD system.

Technical specifications of the Hikvision 2-Wire HD Video Intercom Kit

Feature Specification
Brand Hikvision
Kit model DS-KIS704EY/ALUMINUM
Product type Video intercom kit for residential access control
Technology Hikvision 2-Wire HD
Recommended applications Detached houses, villas, compatible renovations and new installations
Main components DS-KD7003EY-IME2/Aluminum, DS-KH7300EY-WTE2/White and DS-KAD7060EY
Outdoor station DS-KD7003EY-IME2/Aluminum
Camera resolution 2 MP
Low-light support Low-illumination camera with integrated IR supplementary lighting
Field of view 133° horizontal and 82° vertical
Wide dynamic range WDR supported
Video compression H.264
Outdoor station audio Integrated omnidirectional microphone and loudspeaker
Audio processing Noise suppression and echo cancellation
Audio compression G.711 U and G.711 A at 64 Kbps
Lock control 2 outputs: 1 relay rated up to 30 VDC/2 A and 1 DC pulse output
Outdoor station inputs Exit button, door contact and 2 configurable alarm inputs
Additional interfaces 2 × RS-485, tamper input and 2-wire interface
Outdoor station power 48 V from the DS-KAD7060EY distributor or 12 VDC input
Outdoor station consumption ≤ 6 W
Outdoor protection IP65 and IK08
Outdoor operating temperature −40 °C to +60 °C
Outdoor station dimensions 99.5 × 98.5 × 35 mm
Outdoor station installation Surface mounting
Indoor station DS-KH7300EY-WTE2/White
Operating system Embedded Linux
Display 7-inch colour TFT capacitive touchscreen
Display resolution 1024 × 600 pixels
Indoor station audio Integrated microphone and loudspeaker with noise suppression and echo cancellation
WiFi 2.4 GHz, IEEE 802.11 b/g/n
Network protocols TCP/IP, SIP and RTSP
Mobile application Hik-Connect
Remote functions Call reception, two-way communication, live viewing and remote door release
Local storage TF/microSD card up to 128 GB
Image capacity Up to 200 captured pictures with a compatible memory card installed
Linked indoor extensions Up to 3
Alarm input 1
Two-wire interfaces 2: one input and one output
Indoor station power 48 V from DS-KAD7060EY or DS-KAD7061EY
Indoor station consumption ≤ 5 W
Indoor operating temperature −10 °C to +50 °C
Indoor station dimensions 190.2 × 138.2 × 20 mm
Indoor station installation Surface mounting for indoor use
Distributor DS-KAD7060EY
Distributor power input 48 VDC
Distributor interfaces IN and OUT for cascading, plus CH1 to CH4 for door and indoor stations
Distributor power capacity Less than 30 W per channel; 30 W maximum total
Distributor operating temperature −10 °C to +55 °C
Distributor dimensions 143.7 × 92.4 × 65.9 mm
Distributor installation DIN-rail mounting
More Information
More Information
EAN 6942160476223
Hight 0.000
Length 0.000
Width 0.000
ACCESOS - SISTEMA Kit
ACCESOS - SERIE Kit
Color Black
Color Portero/Videoportero Color
Type Complete Kit
Internet Conectivity Wi-Fi
Product Brand Hikvision
