Duox Connect kit for 16 Homes with Electronic Telephone

SKU
FERDUOX16AUD
Brands: Fermax
Availability: In stock
24/48 Hours
Free shipping
(Iberian Peninsula)
€831.77 Tax included
Fermax

Kit Duox Connect for 16 Homes with Electronic Telephone

This kit allows us to install in a building with sixteen houses.

This kit includes everything needed for our installation, from the street plate to the 16 electronic telephones in our home.

The Fermax phone has an extra-flat shape made of high impact ABS plastic with a mirror polished finish for easy cleaning.

The connect board is a board with 4G access that includes a SIM at no cost to the community. It integrates audio and video functions in the same module, has a wide-angle camera with integrated lighting and a focus regulation system. It allows you to adjust the volume both in the street-home and home-street directions.

In facilities with NO WiFi monitors and telephones, they can also have call forwarding to a mobile phone if the user subscribes to Opendit's FLEXI CALL plan, so the community resident can answer calls from their mobile phone.

If you have any questions about how to install or what components you need in your CONNECT system, do not hesitate to contact us!!!

Technical Specifications of the Duox Kit for 16 Homes with Electronic Telephone

The Fermax kit for 16 homes has everything necessary to carry out our installation of electronic doorman in a building with 16 houses.

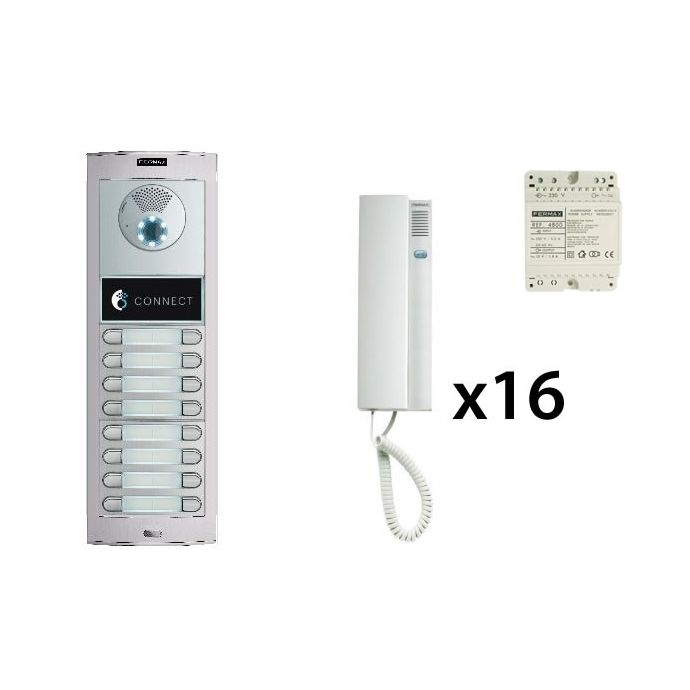

What does this Fermax kit include?

  • Street sign with sixteen pushbuttons 73910.
  • Embedding box.
  • 16 electronic telephones 34440.
  • 4800 Feeder.
  • Feeder + Filter 4825.
  • 2 Duox line adapters 3255.

What technical features does the 34440 phone have?

  • Auto-start: This function is possible with the board of its own block, if the board is at rest, programmed as "0" and there is some talk channel available.
  • Screwed on surface.
  • Power: 18 Vdc
  • Door release button and concierge call.
  • Selectable ring tones.
  • Private communication. Secret of conversation.
  • Consumption:
    • At rest: 15 mA.
    • Active without audio: 112 mA.
    • Communicating tone: 117 mA.
    • Active audio: 125 mA
    • Tone monitoring: 271 mA

What is a Duox line adapter used for?

At DUOX installations, a line adapter device must be installed. Its function is the adaptation of the transmission line. It has a bridge to make different adaptations depending on the type of installation.

Small size allows installation in electrical registers. They can be bolted directly to the wall.

More Information
EAN8416812506012
SystemSimplebus (2 threads)
SERIEKit
ColorWhite
TypeComplete Kit
Product BrandFermax
