Kit Duox Connect for 14 Homes with Telephones by Fermax

SKU
FERDUOX14AUD
Brands: Fermax
Availability: In stock
24/48 Hours
Free shipping
(Iberian Peninsula)
€795.83 Tax included
Fermax

Duox Connect Kit for 14 Dwellings with Video Door Entry System

This kit allows us to install in a building with fourteen houses.

This kit includes everything needed for our installation, from the street plate to the 14 electronic telephones in our home.

The Fermax phone has an extra-flat shape made of high impact ABS plastic with a mirror polished finish for easy cleaning.

The connect board is a board with 4G access that includes a SIM at no cost to the community. It integrates audio and video functions in the same module, has a wide-angle camera with integrated lighting and a focus regulation system. It allows you to adjust the volume both in the street-home and home-street directions.

In facilities with NO WiFi monitors and telephones, they can also have call forwarding to a mobile phone if the user subscribes to Opendit's FLEXI CALL plan, so the community resident can answer calls from their mobile phone.

If you have any questions about how to install or what components you need in your CONNECT system, do not hesitate to contact us!!!

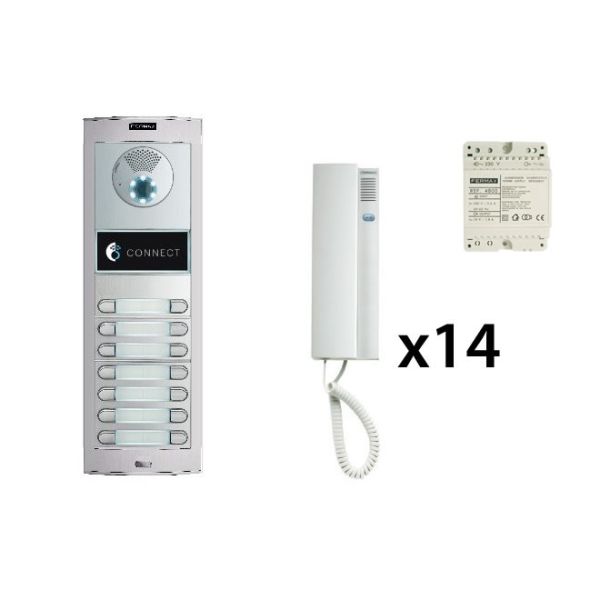

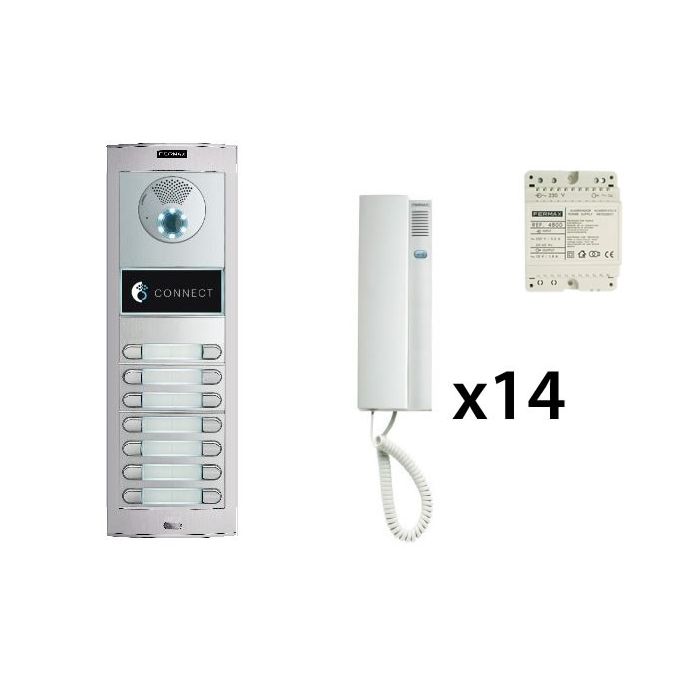

The Fermax kit for 14 homes has everything you need to carry out our electronic doorway installation in a 14 dwelling building.

What does this Fermax kit include?

  • Street sign with fourteen pushbuttons 73910.
  • Embedding box.
  • 14 electronic telephones 34440.
  • 4800 Feeder.
  • Feeder + Filter 4825.
  • 2 Duox line adapters 3255.

What technical features does the 34440 phone have?

  • Auto-start: This function is possible with the board of its own block, if the board is at rest, programmed as "0" and there is some talk channel available.
  • Screwed on surface.
  • Power: 18 Vdc
  • Door release button and concierge call.
  • Selectable ring tones.
  • Private communication. Secret of conversation.
  • Consumption:
  • At rest: 15 mA.
  • Active without audio: 112 mA.
  • Communicating tone: 117 mA.
  • Active audio: 125 mA
  • Tone monitoring: 271 mA

What is a Duox line adapter used for?

At DUOX installations, a line adapter device must be installed. Its function is the adaptation of the transmission line. It has a bridge to make different adaptations depending on the type of installation.

Small size allows installation in electrical registers. They can be bolted directly to the wall.

More Information
EAN8416812505015
SystemSimplebus (2 threads)
SERIEKit
ColorWhite
TypeComplete Kit
Product BrandFermax
Write Your Own Review
You're reviewing:Kit Duox Connect for 14 Homes with Telephones by Fermax
Your Rating
File Label Size Download
pdf Ficha Tecnica módulo connect 77.5 KB Download
