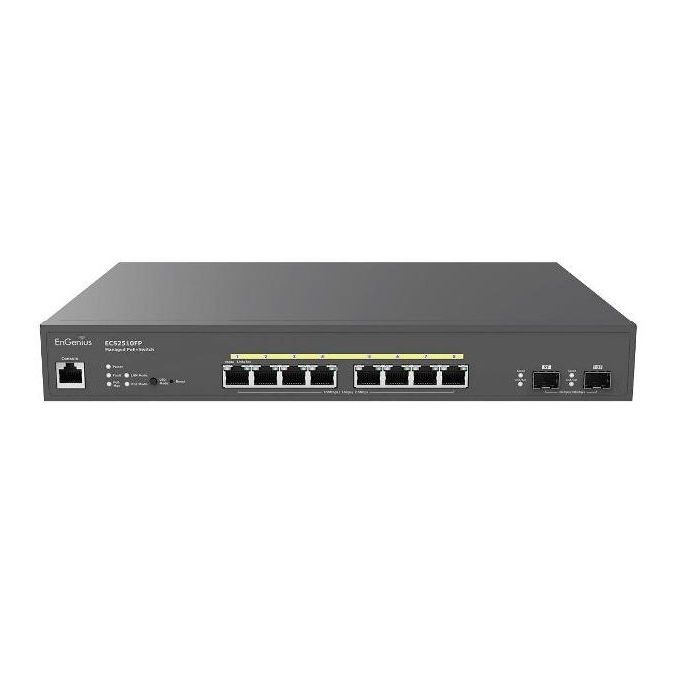

Manageable Switch 8 Ports 2.5Gb POE+ and 2 SFP+ 10Gb 240W by Engenius

Technical Specifications of the Engenius 8-Port 2.5Gb POE+ and 2SFP+ 10Gb 240W Managed Switch

Technical specifications

Standards supported on ports
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control

Network ports
8 Ports 10/100/1000/2500 Mbps
2 SFP+ ports

Switching Capability
120Gbps

Memory (SDRAM)
512MB

Flash memory
128MB

PoE+ compatible ports
1-8 (802.3af/a)

Total PoE Budget
240W

Power supply
100 ~ 240VAC, 50-60Hz

Physical interface

LED indicators
Power LED
fault LED
PoE Max LED
LAN mode LED
PoE mode LED

Status indicators on ports
Link / Activity / Speed (on each Ethernet port)
Link / Activity / Speed (on each SFP port)

Software Features (Layer 3 Features)

Multiple IP interfaces
20 IPv6 addresses

ARP table
Max. 192 ARP entries

static ARP
Max. 192 Static ARP entries

IPv4 static routes
Max. 63 entries

IPv6 static routes
Max. 21 entries

Physical and environmental characteristics

Temperature range
Operation: 32°F to 122°F (0°C to 50°C)

Humidity (non-condensing)
Operating: 5% - 95%

package contents
1x Cloud Managed Gigabit Switch
1x quick installation guide
1x power cord
1x RJ45 console cable
1x rack mounting kit

Dimensions and weights

ECS2510FP device:
Weight: 5.7 lbs. (2.6kg)
Width: 12.99” (330mm)
Length: 9.05” (230mm)
Height: 1.73" (44mm)

packaging
Weight: 7.4 lbs. (3.37kg)
Width: 15.6” (394mm)
Length: 12.2” (309mm)
Height: 4” (104 mm)

Warranty

2 years

Certifications
EC
FCC
I.C.
