Marine SIP ST1 CP201 ​​plate by Fermax

SKU
FER1671
Brands: Fermax
€465.06
Tax included
Availability: On request
1 to 7 days

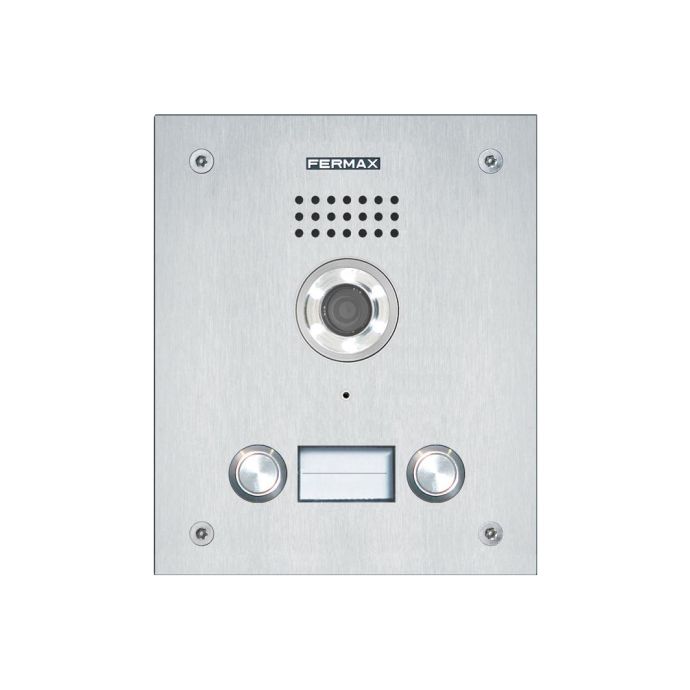

Fermax Marine SIP ST1 CP201 Plate – 2 Push Buttons, HD Camera, AISI 316L Steel

The Fermax Marine SIP ST1 CP201 (Ref. 1671) It is an outdoor vandal-proof plate with two pushbuttons in a 1 row × 2 column layout , specially designed for high-performance SIP installations. Made in 2.5mm AISI 316L stainless steel, offers exceptional resistance to corrosion, impacts and extreme weather conditions with IP65 and IK09.

Integrate a 2MP HD camera with 720p/1080p resolutions, providing clear and sharp vision in both residential and business environments. Its SIP electronics allow direct connection to VoIP switchboards, MEET devices and the MEET ME* App, making it an advanced and fully integrable solution.

The system allows complete programming through webserver, sequential P2P calls up to 8 terminals and management of two simultaneous switchboards. All this makes it a very versatile plate for accesses where two homes/entities or where two different buttons are needed. It also includes a card holder to add information of interest.

It is important to mention that does not include the built-in box, which must be ordered separately, allowing you to select between recessed (Ref. F04641) or surface (Ref. F04645).

Reference: FER1671

-
+

Expanded Information on the Fermax ST1 CP201 ​​Marine SIP Plate

Practical applications of the Fermax Marine SIP ST1 CP201 Plate

1. Entrances with two homes, offices or internal divisions

Thanks to its configuration two independent buttons , this panel is ideal for shared access, commercial premises with two units, portals with double housing or offices with differentiated departments. Its HD camera and mechanical resistance ensure stable operation even in areas exposed to humidity, rain or saline contact.

2. VoIP systems and integrated SIP solutions

The board supports SIP v1/v2, SRTP, multiple audio and video codecs and allows simultaneous connection with two VoIP switchboards , making it easy to integrate into modern corporate infrastructures. Its compatibility with MEET y App MEET ME * Expands call forwarding, teleworking and remote control capabilities.



Technical specifications – Fermax Marine SIP ST1 CP201 (Ref. 1671)

FEATURE DETAIL
Fermax reference 1671
Model Marine SIP ST1 CP201 ​​panel
Material AISI 316L stainless steel – 2.5 mm
Protection IP65 / IK09
Pushbuttons 2 anti-vandal pushbuttons (1 row × 2 columns)
Camera HD 2 Mpx – 720p/1080p – H.264
Audio G.711A/U, G.729, iLBC, G.723.1, G.726, G.722, Opus
SIP protocols SIP RFC2543 / RFC3261 – SRTP – STUN – TR-069
Connectivity Ethernet 10/100 – IPv4/IPv6 – DHCP/PPPoE – VLAN
Relays 2 × C-N/O, N/C (30V/2A cc – 125V/0,5A ca)
Programming Integrated web server
Compatibility MEET – APP MEET ME*
Feeding PoE Class 3 (30W max) or 12 Vdc / 1A
Temperature -30 ºC and 60 ºC
Humidity Up to 95% no condensation
Includes Information card holder
Does not include Embedding box (Ref. F04641) o surface (Ref. F04645)
Packed weight 0.948 kg
Packaging measurements 21 × 15,8 × 7,8 cm
Technology SIP Videoporter
More Information
EAN 8424299016719
Hight 0.000
Length 0.000
Width 0.000
ACCESOS - SISTEMA SIP
ACCESOS - SERIE MARINE
Color Silver
Color Portero/Videoportero Color
Type Entrance panel
Usar stock disponible No
Product Brand Fermax
