Mast Amp. Kit 2in UHF-VHFmix 40dB 5G + 24Vdc Power Supply

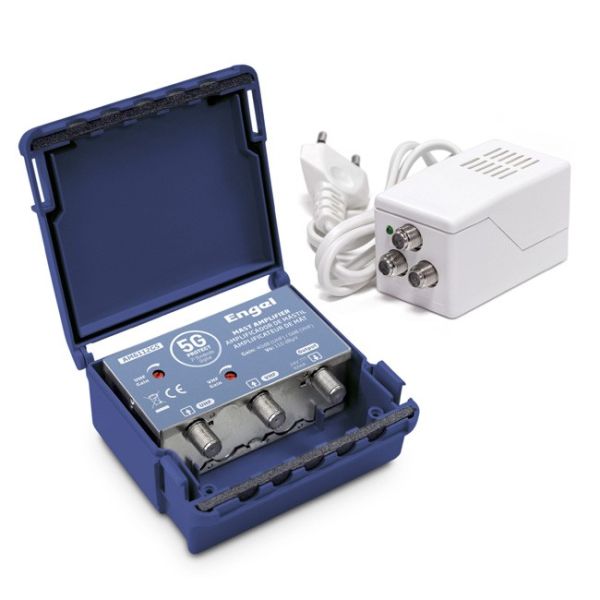

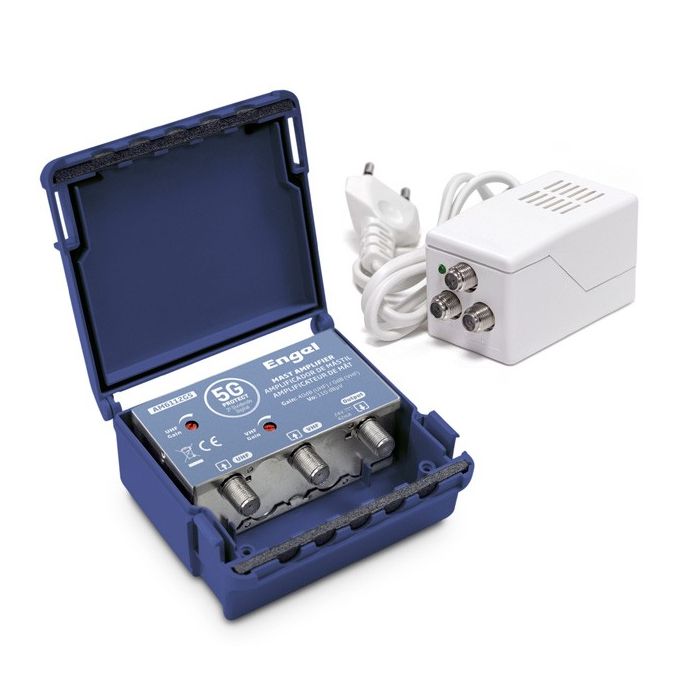

Engel AM6112K5 Mast Amplifier Kit 2 In. UHF-VHFmix 40dB + 24Vdc Power Supply
Mast amplifier of 2 inputs (UHF-VHFmix) with 40dB of gain in UHF and VHF mixing, integrates 5G filter. The power supply sends 24Vdc 40mA and has 2 RF outputs.
This kit is designed for Terrestrial TV distribution in a single-family home, the amplifier is protected with a box to allow its installation on the antenna mast and protect it from the elements. The power supply must be installed inside the house and will supply the current to the amplifier through the coaxial cable itself.
DTT amplification kit consisting of AM6112G5 mast amplifier and AL6120 source from Engel.
Mast Amplifier Kit 2 Inputs UHF-VHFmix 40dB LTE 5G + 24Vdc Power Supply
What are the main features of the Engel AM6112K5 Kit?
- Inputs: 2 (BI/BIII - UHF)
- Frequency: 40-70 / 160-240 MHz, 460-694 MHz
- Gain: UHF: 40dB, BI/BIII: -1.5dB
- Gain regulation range: 0-20 dB
- Maximum output level: 108 dBμV
- Power/consumption: 24V / 40mA
- Noise factor: VHF: 4 / UHF: 3.5
- Connection: "F" Type Connectors
|Max. output level Ganancia (dB/uV)||110|
|Product Brand||Engel Axil|
